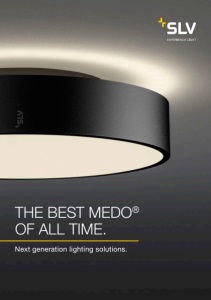

SLV MEDO® | 1 Next generation lighting solutions. THE BEST MEDO® OF ALL TIME.
always up to date! download the current pricelist at KS-Licht.ch/price_list_MEDO or scan the qr-code below! Find our terms and conditions for business customers here
PICK-UP CENTER IN ESSEN For more than 30 years KS Licht- und Elektrotechnik GmbH complements the products and services of SLV with a variety of services. We maintain a pick-up center for SLV products in the heart of the Ruhr area, where you can pick up the goods ordered from us at short notice. EXPERIENCE SLV LUMINAIRES LIVE We present a large selection of SLV luminaires on more than 300 m² of exhibition space. Here, our professionally trained consultants and lighting designers will advise you personally. At the same time, you can use our exhibition to present our luminaires to your customers in terms of function and effect. Convince yourself of the quality of our outdoor luminaires in the outdoor exhibition. FREE LIGHTING DESIGN We develop practical lighting solutions with you and according to your needs. Whether for business premises, salesrooms or private ambience: our lighting designers always have the right concepts for a demand-oriented and energetically sensible solution. solution. We will be happy to calculate the payback time of your new, energy-saving LED lighting for you. KS MULTI-BRAND LUMINAIRES ONLINE SHOP In our business online shop at www.KS-Licht.ch you will find everything that supports you in your daily work: • Current special offers and new products • Online check of product availability • Find and order all spare parts easily • Quick order form • All catalogues for downloading or as a flip catalogue with Product links • Specification texts, light distribution curves/LDT plug-ins and quick calculation tables KS Licht- u. Elektrotechnik GmbH Manderscheidtstr. 8c 45141 Essen Tel.: +49 (0)201-89924 - 0 Fax: +49 (0)201- 899 24 - 124 Onlineshop: www.KS-Licht.ch Internet: Email: www.KS-Germany.com Verkauf@KS-Germany.com Visit us on site or call us: Monday-Thursday continuously from 08.00 hrs to 16.30 hrs Friday continuously from 08.00 hrs to 15.00 hrs Recklinghausen Essen Hagen Duisburg Krefeld Moers Wuppertal Ratingen Bottrop Gelsenkirchen Dortmund Bochum Dinslaken Oberhausen Hattingen Scan the link to our quick order form and get up-to-date information about the availability of goods! www.KS-Licht.ch/quick-order-form © OpenStreetMap-Mitwirkende 15 km 30 km 40 km KS and SLV: strong partners in lighting for more than 30 years
SLV MEDO® | 2
SLV MEDO® | 3 THE NEW MEDO® LIGHTS Timeless design. Contemporary upgrades. How does one make a modern classic even better? First and foremost, by preserving that which makes MEDO® lights so popular with you, our customers. We’re talking about timeless design, outstanding quality and excellent functionality. However, we have also listened to your requests. The new MEDO® and MEDO® Pro models now offer even better output and efficiency. Not only do they meet requirements; they’ll hopefully also exceed your expectations. Discover the best MEDO® of all time.
SLV MEDO® | 6 New, high-performance solutions. NEW GENERATION OF THE MEDO® FAMILY MEDO® • CCT switch 2.700 K / 3.000 K / 4.000 K • Four casing sizes in three different colours • Greater indirect light dispersion • Longer service life and improved energy efficiency MEDO® PRO DC • Emergency lighting feature thanks to integrated DC driver • UGR<19 • L80/B10 – 50.000h • Luminous efficacy from 120 lm/W MEDO® PRO • Available in opal (UGR<25) or prismatic (UGR>19) design • CCT switch 3.000 K / 4.000 K • L80/B10 – 50.000h • Luminous efficacy from 120 lm/W One designer classic is now split into three: the MEDO®, MEDO® PRO and MEDO® PRO DC. The new MEDO® luminaires offer tailored solutions for your individual lighting requirements. From cosy living rooms to demanding commercial projects, there’s the right MEDO® for every situation. MEDO® is versatile thanks to its improved protection class (IP 50) and outstanding colour reproduction with a CRI value of over 90. Installation is easy and fast thanks to EasyBase Easy and fast to install thanks to EasyBase
SLV MEDO® | 7 MEDO® EL, Mounting frame MEDO® EL, Frameless Other lights in the MEDO® family: MEDO® SQUARE MEDO® RING Highlights of the new MEDO® versions: • Greater indirect light dispersion for atmospheric lighting concepts • Exceptional colour reproduction of CRI>90 • Improved protection class of IP 50 • Longer service life and improved energy efficiency • Faster installation thanks to EasyBase
SLV MEDO® | 8 1. Screw and wire EasyBase to the ceiling 2. Select the colour temperature via the CCT switch on the light 3. Pay attention to the green markings 4. Click light into place* *For MEDO® versions 60 and 90, a safety chain must also be attached which is provided in the scope of delivery. Easier and faster than ever. INSTALLATION WITH EasyBase Fast installation thanks to EasyBase. Scan the QR code to watch the MEDO® installation video. EasyBase makes installing each of the new MEDO® versions a breeze. EasyBase is more than just a practical template for drilling holes; it also enables fast and easy mounting of lights. After attaching and wiring your EasyBase in its desired location, you can conveniently select the colour temperature using the CCT switch on the light. Pay attention to the green markings and click the light into place. It’s never been easier to create perfect lighting for your rooms.
All MEDO® versions can also be used as pendant lights. For this, you will need a suspension kit which can be ordered separately. Transparent design for greater indirect light dispersion Available in opal or prismatic design Options Colour Prod. no. Suspension kit 1.5 m 135250 135251 135254 Suspension kit 5 m 1001952 1001950 1001951 SLLVO MEDO® | 9
NEW NEW NEW SLV MEDO® |10 MEDO® CW MEDO® PRO CW MEDO® PRO DC CW Sizes 30 | 40 | 60 | 90 30 | 40 | 60 | 90 30 | 40 | 60 | 90 Suspension kit 1.5 | 5 m (not included) 1.5 | 5 m (not included) 1.5 | 5 m (not included) EasyBase CCT switch DALI – Phase C C – 1-10V – – – UGR 22 | 25 19 | 25 19 DC – – MEDO® OVERVIEW
SLV MEDO® | 11 MEDO® CL, SQUARE MEDO® RING PD MEDO® EL, FRAMELESS | MOUNTING FRAME 60 60 30 | 40 | 60 1.5 | 5 m (not included) 1.5 m (included) – – – – – – – – 22 22 25 – – – *Requires driver LED drivers are not included and must be ordered separately.
SLV MEDO® | 12 MEDO® THE NEW MEDO® – THE RELIABLE ALL-ROUNDER Improved energy efficiency, longer service life and greater indirect light dispersion. Three elegant casing colours and a CCT switch that enables you to choose between 2.700 K, 3.000 K and 4.000 K lets you personalise your lighting situation. An improved protection class of IP 50 and outstanding colour rendering index of CRI>90 ensure extraordinary quality.
SLV MEDO® | 11 IP50 L70B50 IP50 L70B50 CRI 90 CRI 90 MEDO® 66 mm plus EasyBase 220-240V ~50/60Hz Material: aluminium/polystyrene (PS) 220-240V ~50/60Hz Material: aluminium/polystyrene (PS) MEDO® 30, 40 AND 60 CW, PHASE MEDO® 90 CL, PHASE Design Control Ø Colour Prod. no. Luminous flux Output Efficiency UGR SDCM mm lm W lm/W 2.700 K 3.000 K 4.000 K Opal Phase 280 1007316 1.050 1.100 1.200 12 100 ≤25 110° ≤3 1007317 1007318 380 1007319 2.100 2.200 2.350 20 118 ≤25 1007320 1007321 600 1007322 4.050 4.250 4.550 39 117 ≤22 1007323 1007324 900 1007325 8.300 8.700 9.350 79 118 ≤22 1007326 1007327 Black Black White White Grey Grey Easy and fast to install thanks to EasyBase
SLV MEDO® | 14 MEDO® 60
SLV MEDO® | 15
MEDO® PRO SLV MEDO® | Design Control Ø Colour Prod. no. Luminous flux Output Efficiency UGR SDCM mm lm W lm/W 3.000 K 4.000 K Opal DALI 280 1007286 1.350 1.350 10 135 ≤25 110° ≤3 1007287 380 1007294 2.650 2.650 19 139 1007295 600 1007302 5.450 5.500 39 141 1007303 900 1007310 11.000 11.200 75 149 1007311 Phase 280 1007290 1.350 1.350 10 135 ≤25 110° ≤3 1007291 380 1007298 2.650 2.650 19 139 1007299 600 1007306 5.450 5.500 37 141 1007307 900 1007314 11.000 11.200 74 149 1007315 THE NEW MEDO® PRO – QUALITY FOR THE HIGHEST DEMANDS The new MEDO® PRO offers the benefits of DALI-compatibility and a CCT switch for flexible colour selection of between 3.000 K and 4.000 K. The CRI value of over 90 guarantees outstanding colour reproduction. You will be sure to find the right solution for your project thanks to the choice between an opal (UGR<25) and prismatic (UGR<19) cover. 16
IP50 L80B10 CRI 90 SLV MEDO® | 17 MEDO® PRO MEDO® PRO 30, 40, 60 AND 90 PHASE OR DALI 220-240V ~50/60Hz Material: aluminium/polystyrene (PS) Design Control Ø Colour Prod. no. Luminous flux Output Efficiency UGR SDCM mm lm W lm/W 3.000 K 4.000 K Prismatic DALI 280 1007284 1.250 1.250 10 125 ≤19 70° ≤3 1007285 380 1007292 2.400 2.500 19 132 80° 1007293 600 1007300 5.000 5.100 39 131 80° 1007301 900 1007308 9.400 9.700 75 129 80° 1007309 Phase 280 1007288 1.250 1.250 10 125 ≤19 70° ≤3 1007289 380 1007296 2.400 2.500 19 132 80° 1007297 600 1007304 5.000 5.100 37 131 80° 1007305 900 1007312 9.400 9.700 74 129 80° 1007313 66 mm plus EasyBase Black White
MEDO® PRO DC SLV MEDO® | 1 8 THE NEW MEDO® PRO DC – VERSATILE PERFORMER The MEDO® PRO DC lets you benefit from all the technical merits of the prismatic MEDO® PRO version with UGR≤19. You can also rely on emergency lighting in the event of a power failure thanks to the integrated DC driver.
MEDO® PRO DC IP50 L80B10 CRI 90 SLV MEDO® |19 Design Control Ø Colour Prod. no. Luminous flux Output Efficiency UGR SDCM mm lm W lm/W 3.000 K 4.000 K Prismatic DALI 280 1006411 1.250 1.250 10 125 ≤19 70° ≤3 1006412 380 1006414 2.400 2.500 19 132 80° 1006415 600 1006417 5.000 5.100 37 138 80° 1006418 900 1006420 9.400 9.700 75 129 80° 1006421 66 mm plus EasyBase Black White 220-240V ~50/60Hz Material: aluminium/polystyrene (PS) MEDO® PRO DC 30, 40, 60 AND 90 CW, DALI , UGR<19 Integrated DC driver for emergency lighting
MEDO® PRO 90 SLV MEDO® | 20 WELL INFORMED Scan QR code, select country and get our latest prices. Visit us at slv.com
SLV MEDO® | 21
SLV MEDO® | 22 CRI 80 IP20 L70B50 MEDO® SQUARE 220-240V ~50/60Hz Material: aluminium/acrylic MEDO® SQUARE 60 White Control L x W mm Colour Prod no. Colour temperature K Luminous flux lm Output W UGR 1-10V 600 x 600 1000726 3.000 3.800 39 ≤22 105° DALI 1002882 125 mm The suspension kit, which is available separately, can be found on page 7.
SLV MEDO® | 23 CRI 80 IP20 L70B50 MEDO® RING 220-240V ~50/60Hz Material: aluminium/polymethylacrylate (PMMA) MEDO® RING 60 AND 90 White Black Control Ø mm Colour Prod no. Colour temperature K Luminous flux lm Output W UGR 1-10V 600 133840 3.000 2.200 33 ≤22 105° 133841 900 133850 4.900 56 133851 DALI 600 1002890 2.200 34 1002891 80 mm 150 mm
SLV MEDO® | 24 CRI 80 IP20 L70B50 MEDO® EL Material: aluminium / polymethylacrylate (PMMA) MEDO® EL, MOUNTING FRAME 30, 40 AND 60 White Ø Installation Colour Prod no. Luminous flux Output UGR mm depth lm W mm 3.000 K 4.000 K 300 130 1001905 1.500 1.600 14 ≤25 105° 400 130 1001906 3.100 3.300 28 600 160 1001907 4.700 5.000 36 LED drivers are not included and must be ordered separately. You can find suitable drivers here:
SLV MEDO® | 25 CRI 80 IP20 L70B50 MEDO® EL Material: aluminium / polymethylacrylate (PMMA) MEDO® EL, FRAMELESS 30, 40 AND 60 White Ø Colour Prod no. Luminous flux Output UGR Installation mm lm W depth 3.000 K 4.000 K mm 300 1001901 1.500 1.600 14 ≤25 105° 130 400 1001902 3.100 3.300 28 130 600 1001903 4.700 5.000 36 160 Control Product Colour Prod no. Output W 1-10V / DALI LED driver 250-700mA | including strain relief / MEDO® 30 + 60 1002423 20 LED driver 500-1050mA | including strain relief / MEDO® 40 1002424 40 Phase LED driver 700mA | including strain relief / MEDO® 40 1005446 40 LED driver 1050mA | including strain relief / MEDO® 30 + 60 464804 40 On/Off LED driver 700 / 900 / 1000mA / including strain relief / MEDO® 30 + 40 + 60 1006120 40
SLV MEDO® | 26 MEDO® 60
SLV MEDO® | 27 MEDO® 40
Dali SLV MEDO® | 28 CRI 90 EXPLANATION OF SYMBOLS Ingress Protection Protection class: Indicates the suitability of electrical equipment for different environmental conditions. Protection class III / Low voltage protection Protection class I / Protective earthing Dimmable with: · DALI = Digital Addressable Lighting Interface. DALI is a bus-compatible system that allows you to individually control the lights and all components of a lighting system. Half-diffusion angle: Describes the beam angle in degrees. The smaller the angle, the more concentrated the light will be. Products with integrated LEDs Colour Rendering Index Service life Correlated Colour Temperature
SLV MEDO® | 29 A large part of the products shown in this brochure are protected by trademarks, registered designs, utility models or patents. Any violation of these property rights or the use of text and layout design or copyrighted images without our authorisation will be prosecuted. The illustrations and information contained in this brochure are for illustrative purposes only and are not legally binding in terms of colour, shape, design or technical details. Product descriptions and specifications are subject to correction and amendment. All of the products in our range are subject to our strict quality assurance procedures and comply with generally applicable standards. This brochure contains a general range and is not country specific. Any deviations from country-specific guidelines must be clarified before ordering. SLV cannot be held responsible for any deviations in terms of technical standards. All weights and dimensions are given in kg and cm respectively unless stated otherwise. We reserve the right to make technical changes! SLV is entitled to adjust the respective price list to changing market conditions, in the event of significant changes in procurement costs, changes in value added tax or procurement prices.
