3-phase luminaire LINEAR PRO 120 DALI controllable, CCT Switch, multipower IP20, traffic black dimmable

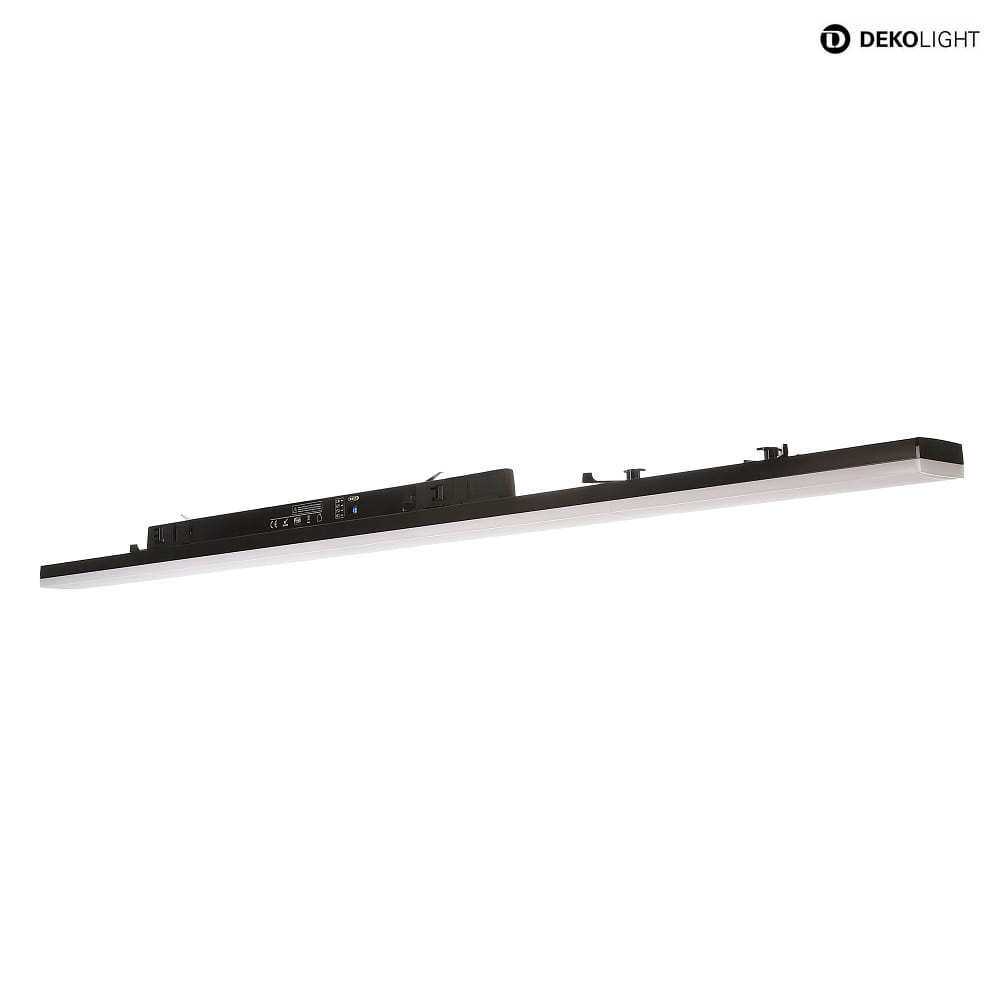

LED 3-Phase luminaire LINEAR PRO 120 CCT - Versatile lighting solution

The LED 3-Phase luminaire LINEAR PRO 120 CCT from Deko-Light is a high-quality surface luminaire, specifically designed for use in 3-phase high-voltage track systems indoors. With its square design and traffic black color, it harmoniously blends into modern interiors and is ideal for ceiling mounting.

Efficient lighting with high color rendering

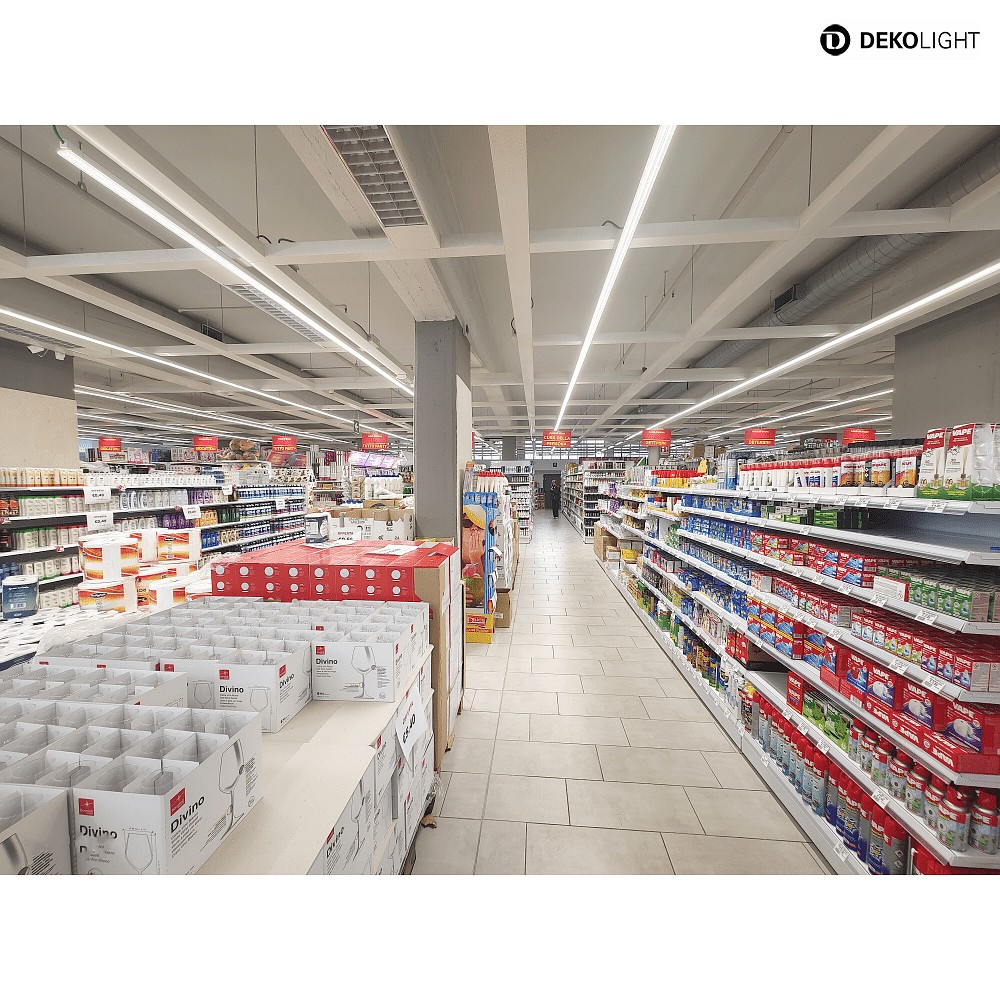

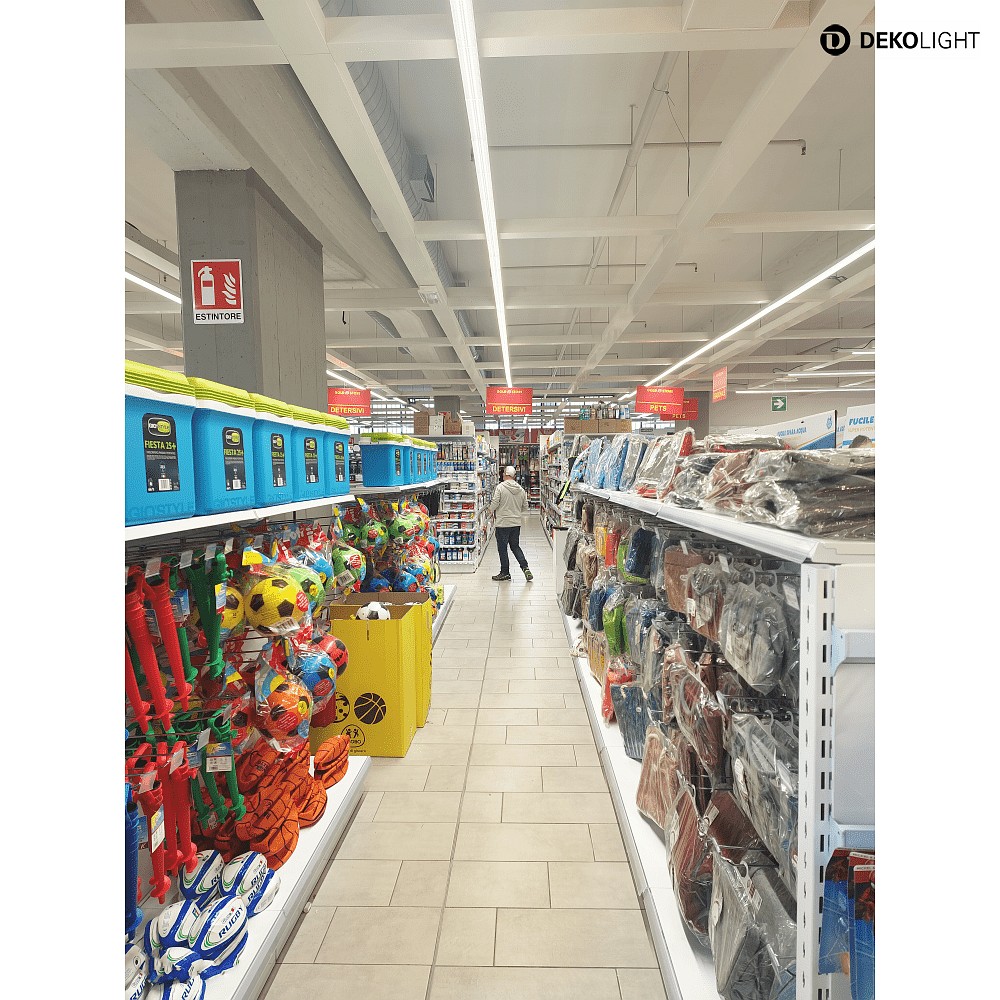

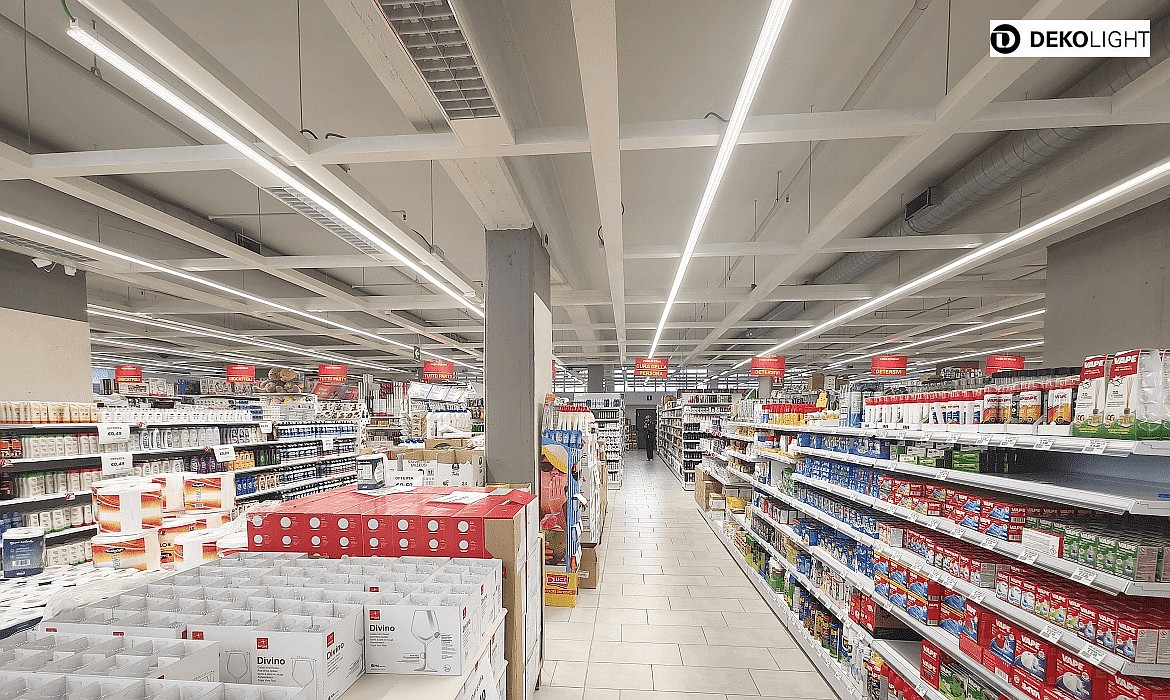

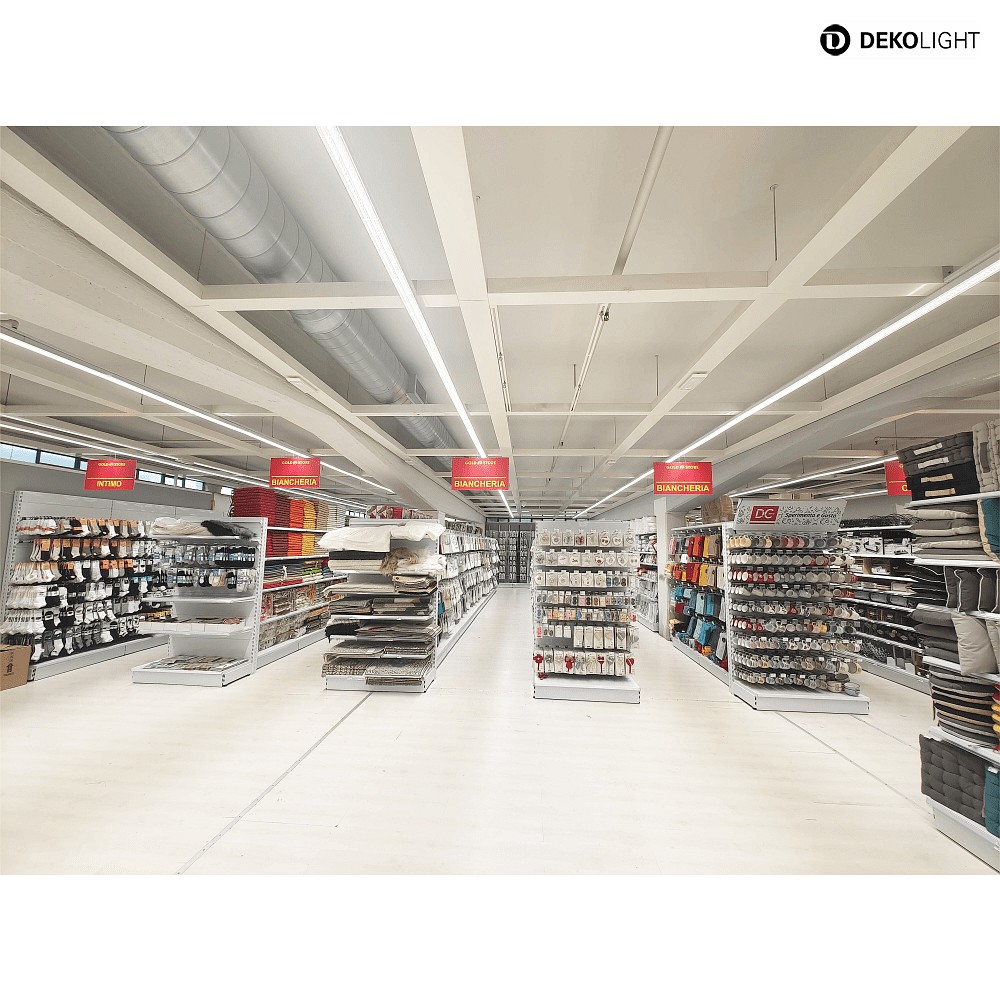

Thanks to the SMD LED 2835 light sources with a total of 192 LEDs, the LINEAR PRO 120 CCT produces uniform, symmetrical lighting on both sides of the aisle across the entire shelf height. The diffuse light distribution in the center ensures even illumination of the corridor itself. With a color rendering index of over 90Ra, the luminaire provides excellent color rendering for optimal presentation of goods.

Flexibility and convenience with accessories

The LED 3-Phase luminaire comes with various accessories, including a 3-phase adapter, a diffuser, a light color switch, and a driver. The luminaire can be expanded with a dimmer and an emergency light module to add additional functions. The ability to replace the LED allows for easy maintenance and adaptation to different requirements.

Individual light control and settings

The LINEAR PRO 120 CCT offers the possibility to adjust the light color in three levels (3000K, 3500K, or 4000K) using a slider on the back. The power levels and maximum achievable light output can be adjusted with a DIP switch on the adapter. The luminaire is dimmable and switchable with DALI 2.0 / DT6, allowing integration into modern building automation systems.

Technical details and quality features

The LED 3-Phase luminaire LINEAR PRO 120 CCT is characterized by a high luminous efficacy of 125lm/W and low energy consumption of 40kWh/1,000 h. With an average lamp lifespan of 60,000 hours and an IP protection rating of IP20, it offers a durable and safe lighting solution. The luminaire is ENEC certified and corresponds to energy efficiency class C.
