3-phase luminaire LINEAR PRO 120 DALI controllable, CCT Switch, multipower IP20, traffic white dimmable

LED 3-Phase luminaire LINEAR PRO 120 CCT, IP20 IK03, Multipower, CRI >90, DALI

The LED 3-Phase luminaire LINEAR PRO 120 CCT is a high-quality lighting element for indoor use, specially designed for 3-phase high-voltage rail systems. With a color rendering index of over 90Ra, it offers a warm white or neutral white light output, making it ideal for product presentation in retail aisle corridors.

Light source and Technical Details

The luminaire is equipped with SMD LED 2835 light sources, offering a long lifespan of up to 60,000 hours. With an energy consumption of 40kWh/1,000h and a power consumption of 28/32/36/40W, it delivers a luminous flux of 4900 / 5100 / 5000lm with a light output of 128lm/W. The color temperature is adjustable in the variants of 3000K, 3500K, or 4000K.

Accessories and Applications

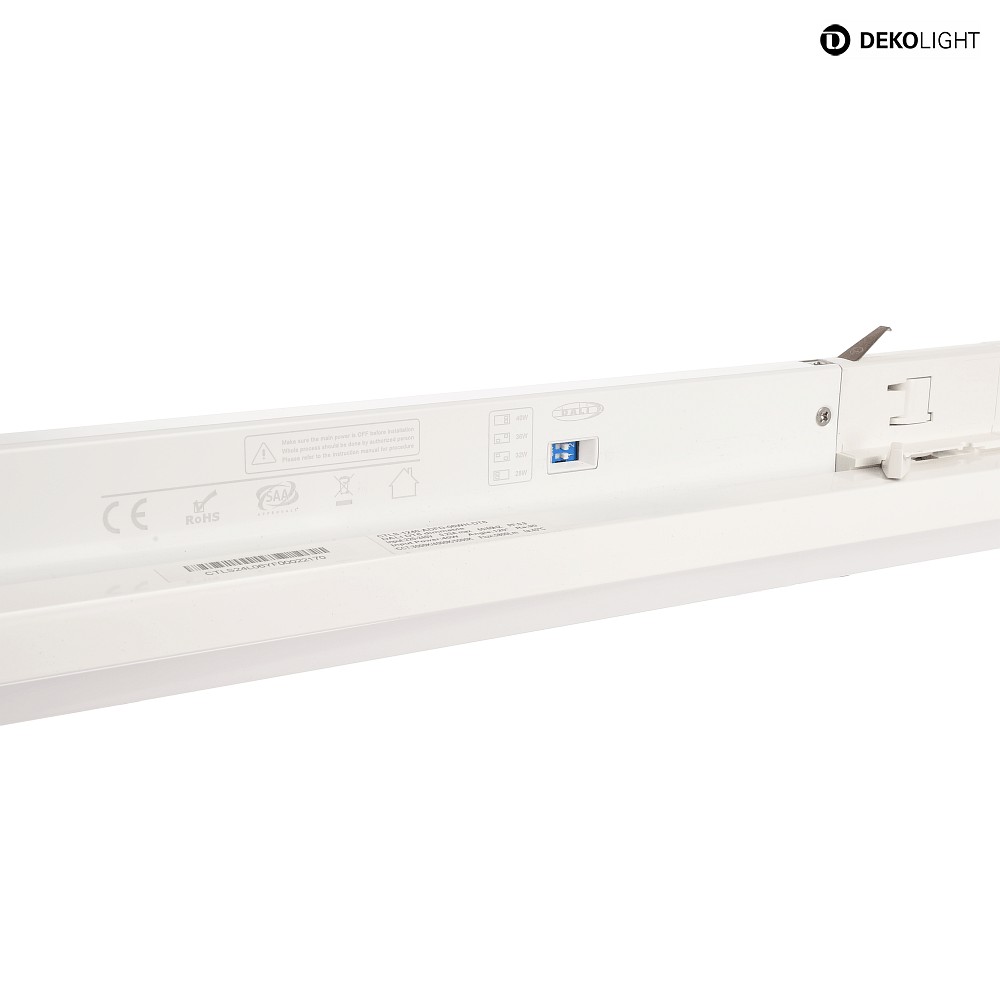

Included in the package are various accessories such as a 3-phase adapter, a diffuser, a light color switch, and a driver. The luminaire is dimmable and switchable with DALI 2.0 / DT6 and can be integrated into modern, digital building automation systems. It is ideal for ceiling mounting and offers a uniform, symmetrical light distribution.

Installation and Design

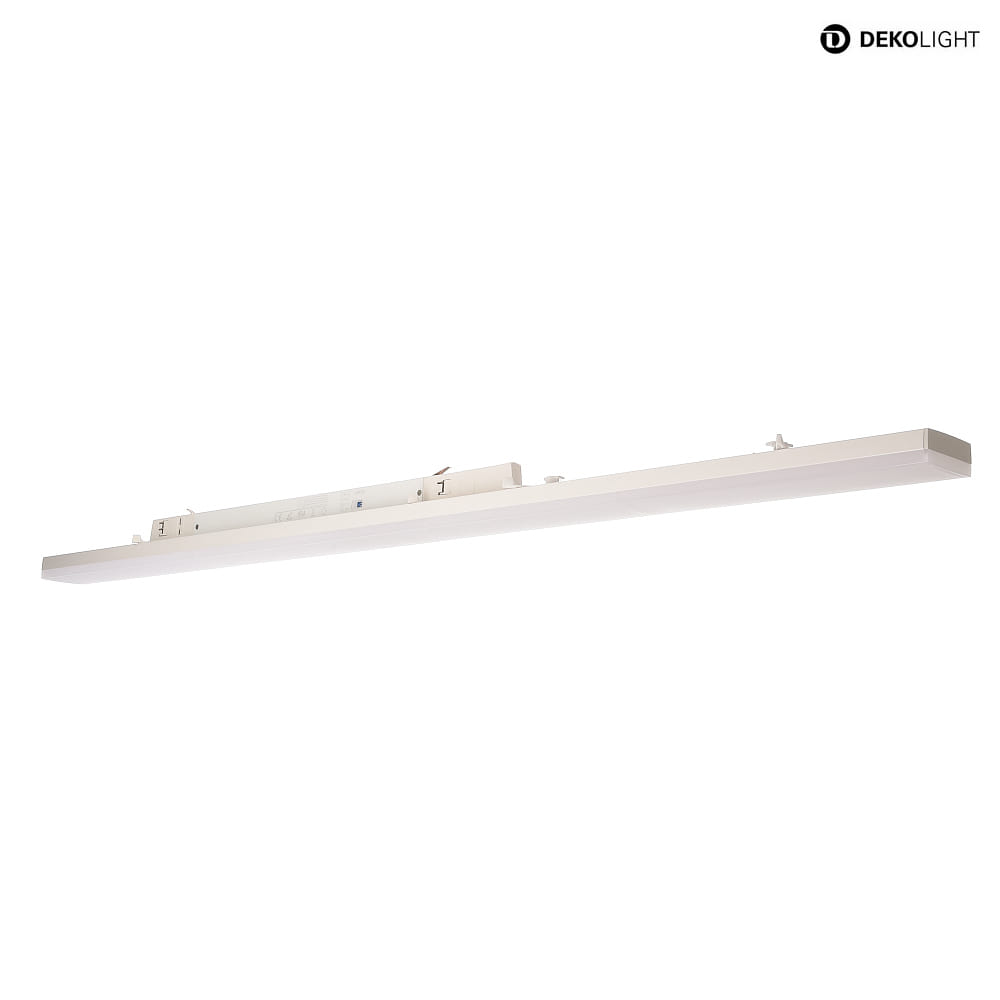

The 3-phase luminaire LINEAR PRO 120 CCT has a square shape and a traffic white color. It is made of aluminum and polycarbonate and weighs 1kg. The size is L/W/H: 119.6/6.11/5.8 cm. Installation is done via a rail system and the power connection is made via a 3-phase adapter. The luminaire is ENEC certified and offers a protection class of 1.

Additional Information and Application Notes

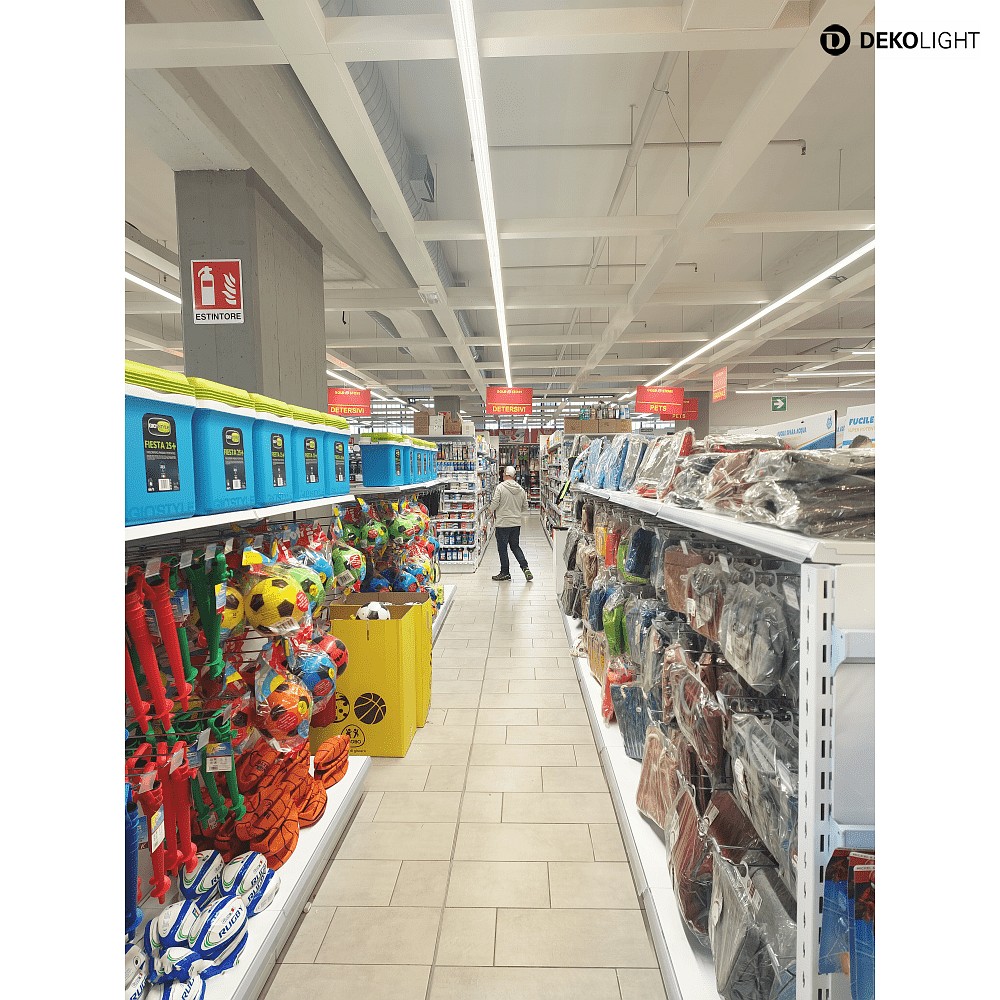

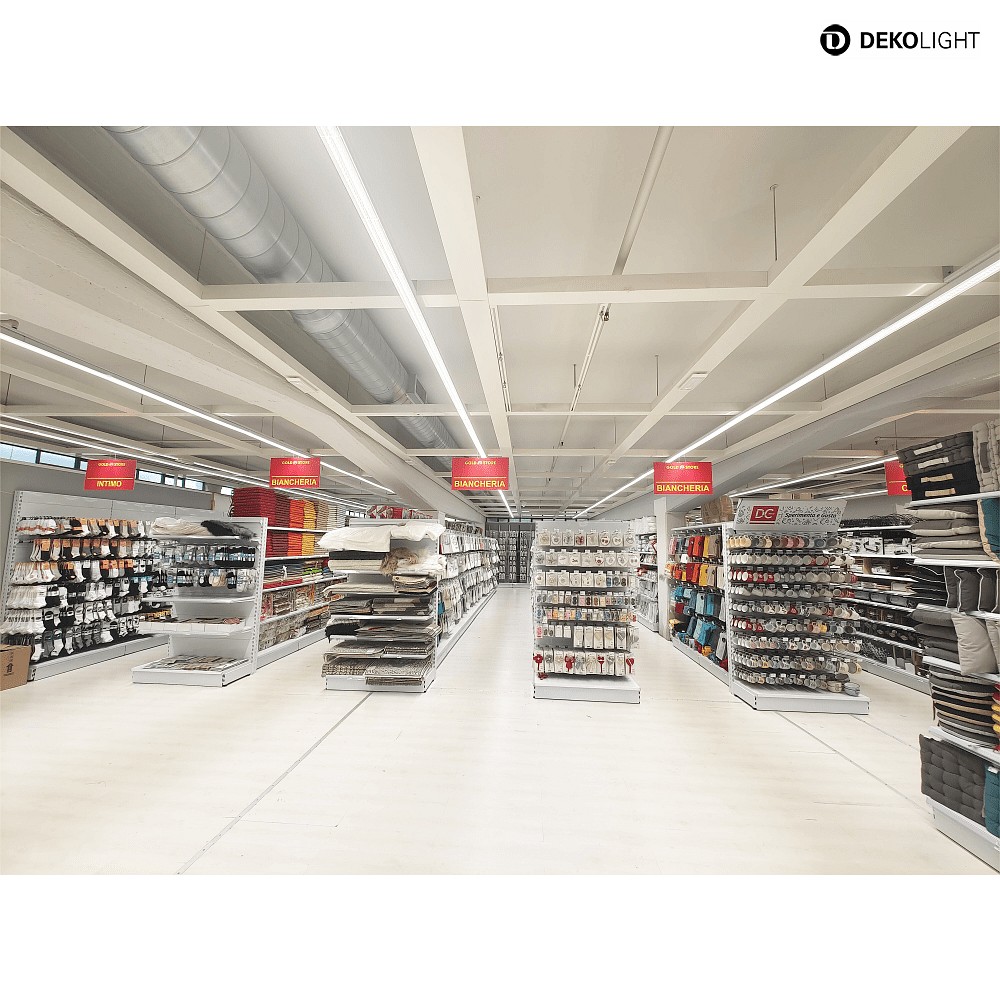

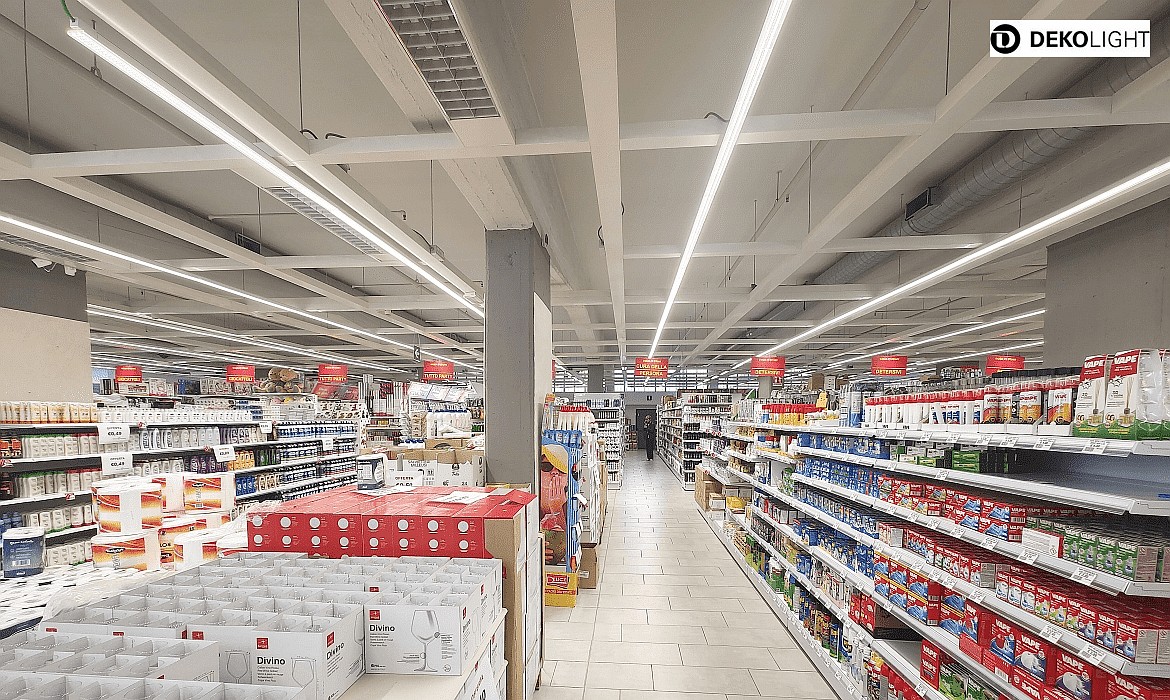

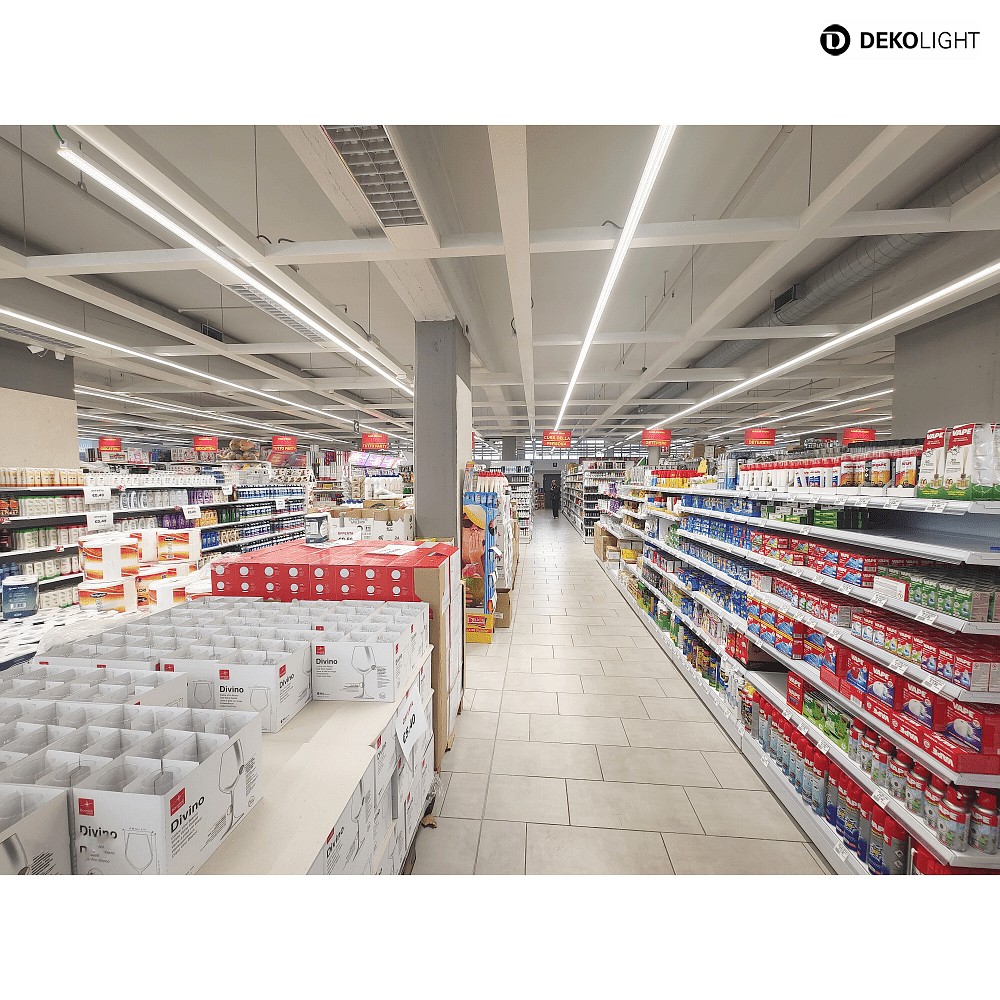

Thanks to its special optics, the luminaire is particularly suitable for illuminating retail aisle corridors, ensuring both product presentation and the aisles themselves are evenly lit. The color consistency is 5 SDCM and the light output factor at the end of the lifespan is 0.8. Other luminaires from the LINEAR PRO series are available, offering different housing colors, lengths, and light colors to choose from.
