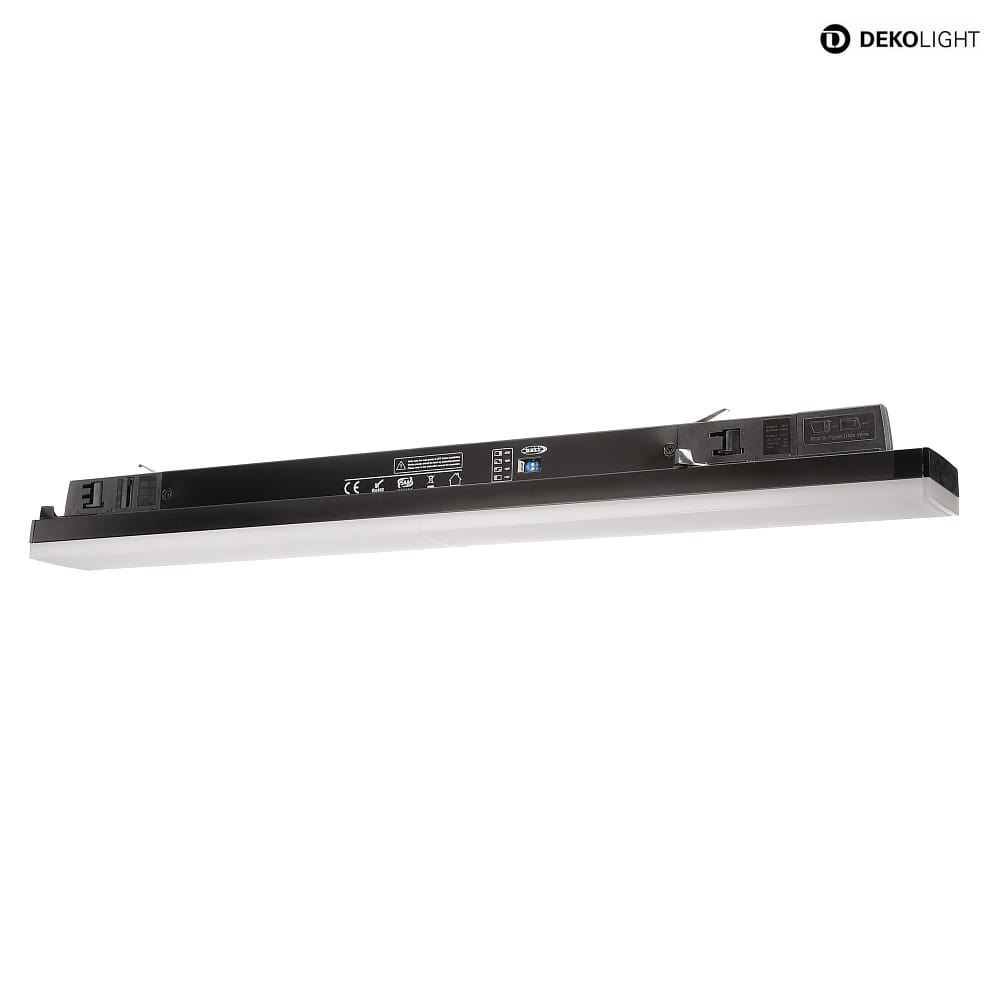

3-phase luminaire LINEAR PRO 60 DALI controllable, multipower IP20, traffic black dimmable

LED 3-phase luminaire LINEAR PRO 60

The LED 3-phase luminaire LINEAR PRO 60 from Deko-Light is a high-quality surface luminaire for 3-phase high-voltage track systems indoors. With a power consumption of 14/16/18/20W and a luminous flux of 2850lm, it provides uniform, symmetrical lighting on both sides of the aisle - over the entire shelf height. The diffuse light insert in the middle ensures uniform illumination of the aisle itself.

Technical details

The LED 3-phase luminaire LINEAR PRO 60 has 96 SMD LED 2835 light sources with a beam angle of 120°. The color temperature is 4000K and the color rendering index is 90Ra. With an energy efficiency class C and an average lamp life of 60000 hours, it is a durable and energy-efficient lighting solution.

Dimmable and switchable

Thanks to DALI / DT6 dimming, the LED 3-phase luminaire LINEAR PRO 60 is dimmable and switchable. It can be easily integrated into modern, digital building automation systems. By using Multipower and the DIP switch on the adapter, the power level and the maximum achievable luminous flux can be individually adjusted.

Accessories and installation

The LED 3-phase luminaire LINEAR PRO 60 includes the 3-phase adapter, diffuser, and driver. The luminaire is mounted on a track system and weighs 0.5kg. With dimensions of 60.2 x 6.11 x 5.8 cm, it fits perfectly in the ceiling space.

Additional information

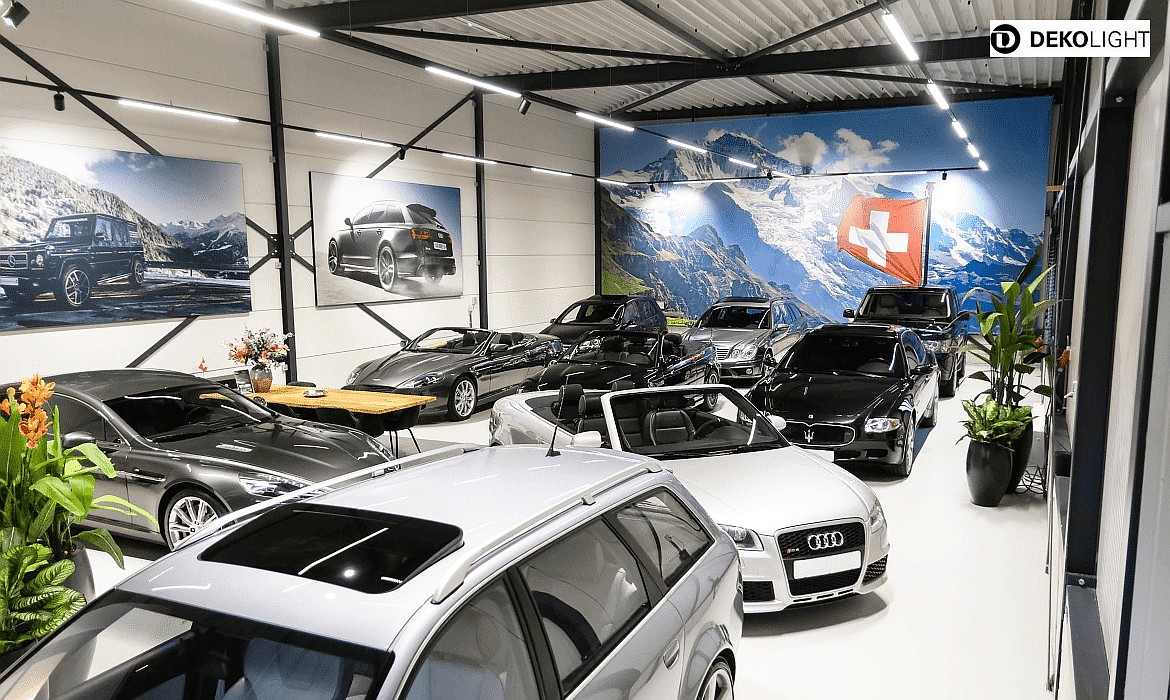

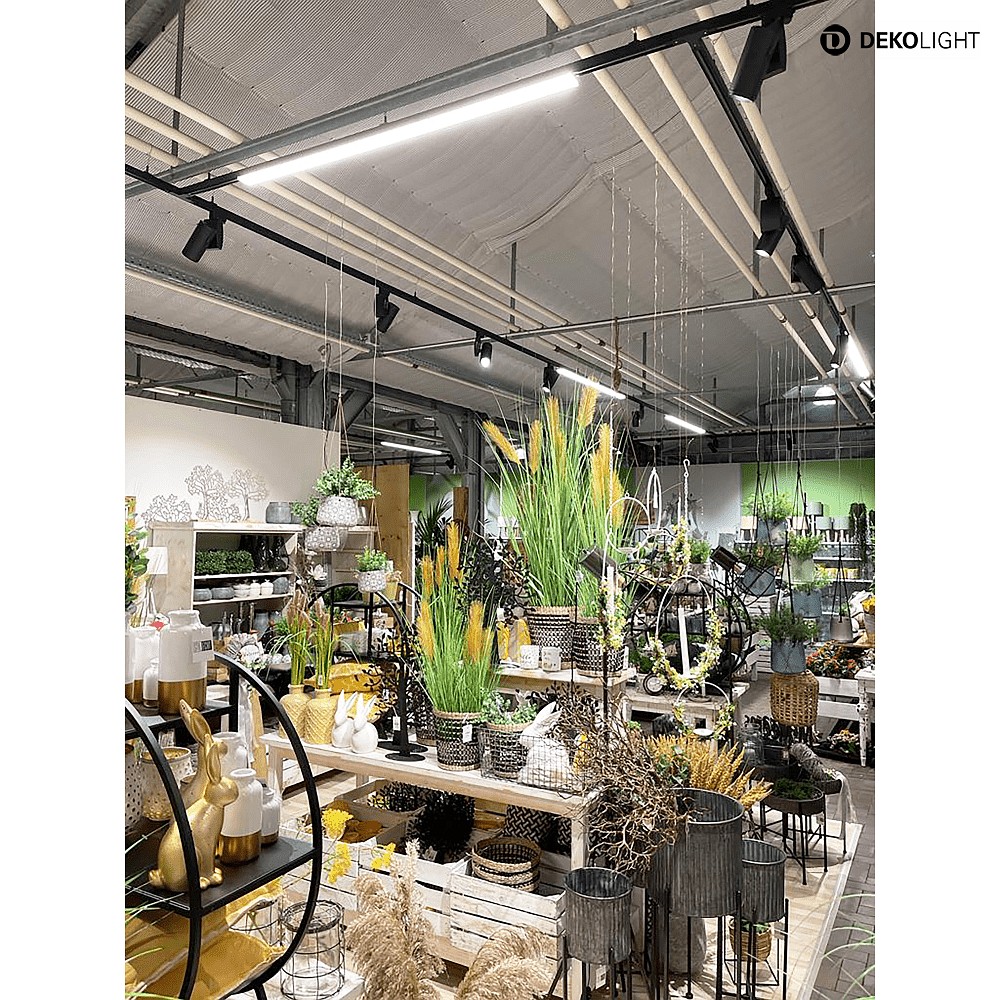

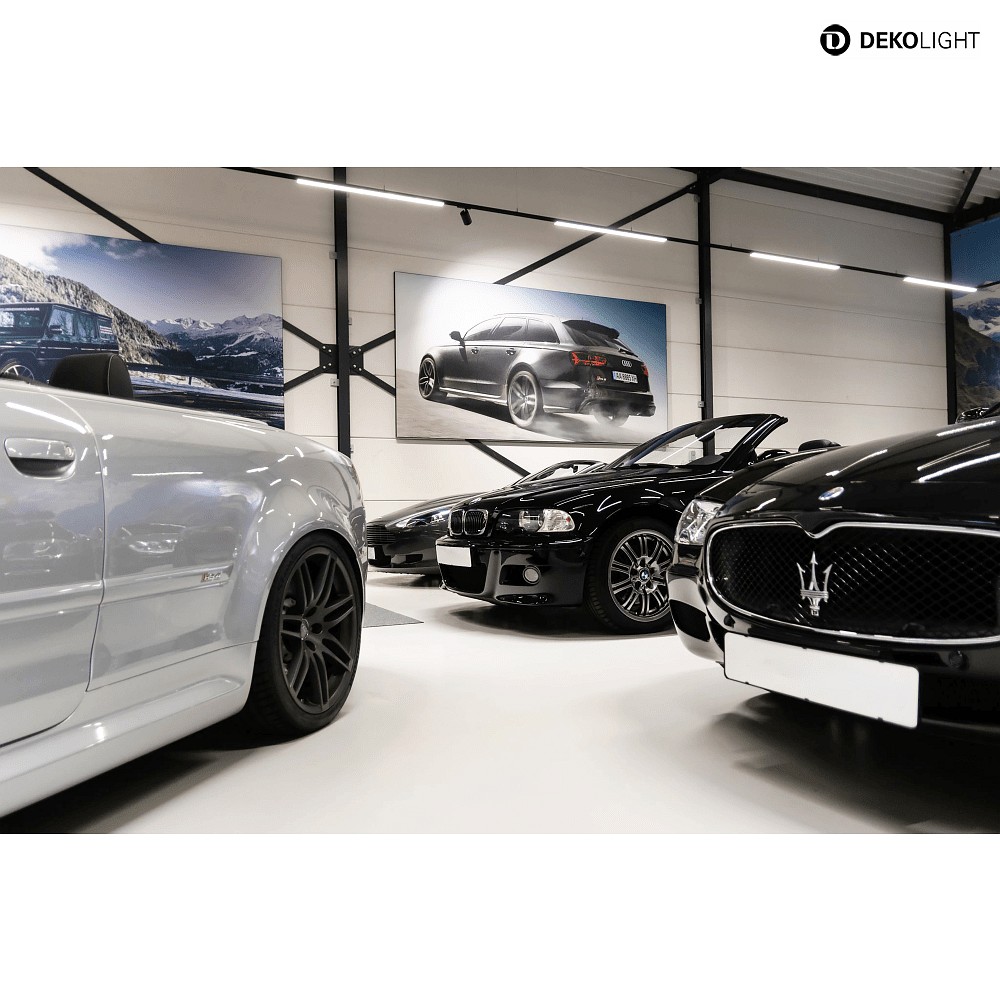

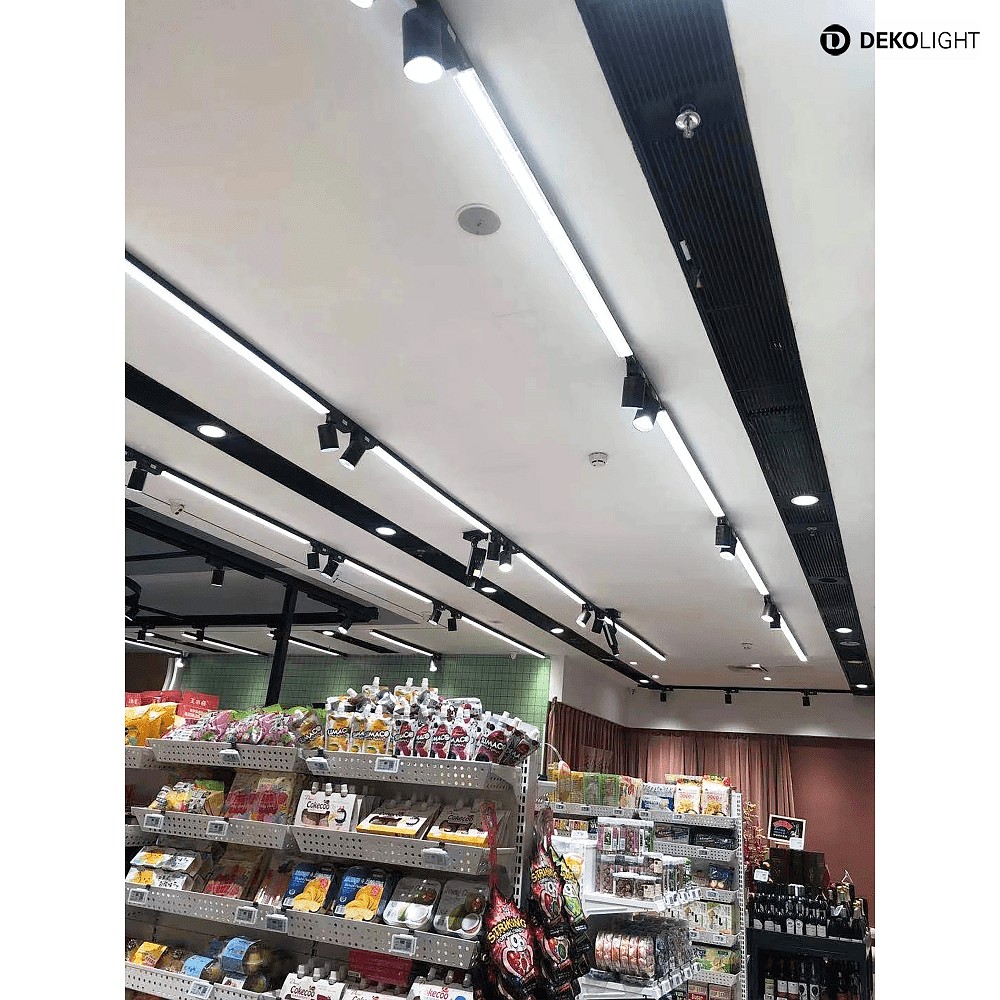

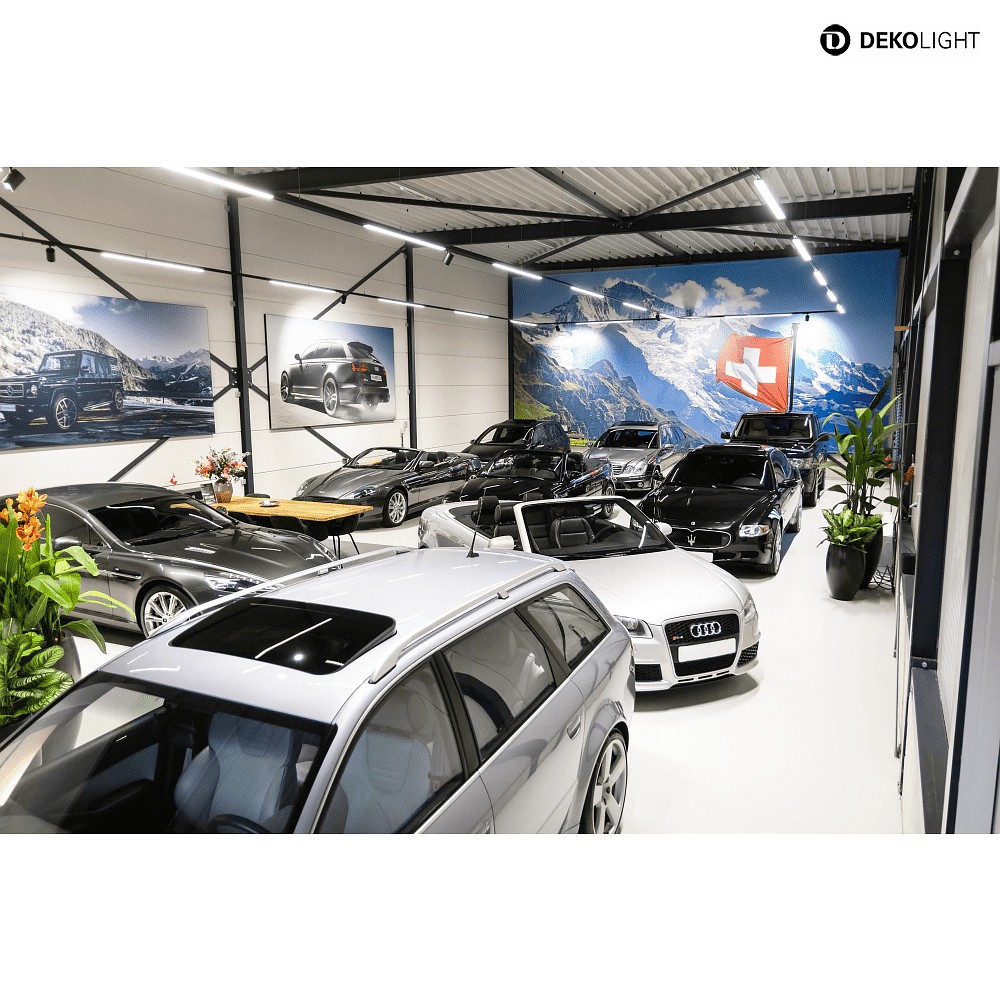

The LED 3-phase luminaire LINEAR PRO 60 stands out for its neutral white light output and excellent color rendering. It is ideal for product presentation on retail shelf aisles and can be combined with 3-phase spotlights to create additional accent lighting. Other luminaires from the LINEAR PRO series are also available, offering various options in terms of housing colors, lengths, and light colors.
