3-phase luminaire LINEAR PRO FOLD DALI rigid, DALI controllable IP20, white dimmable

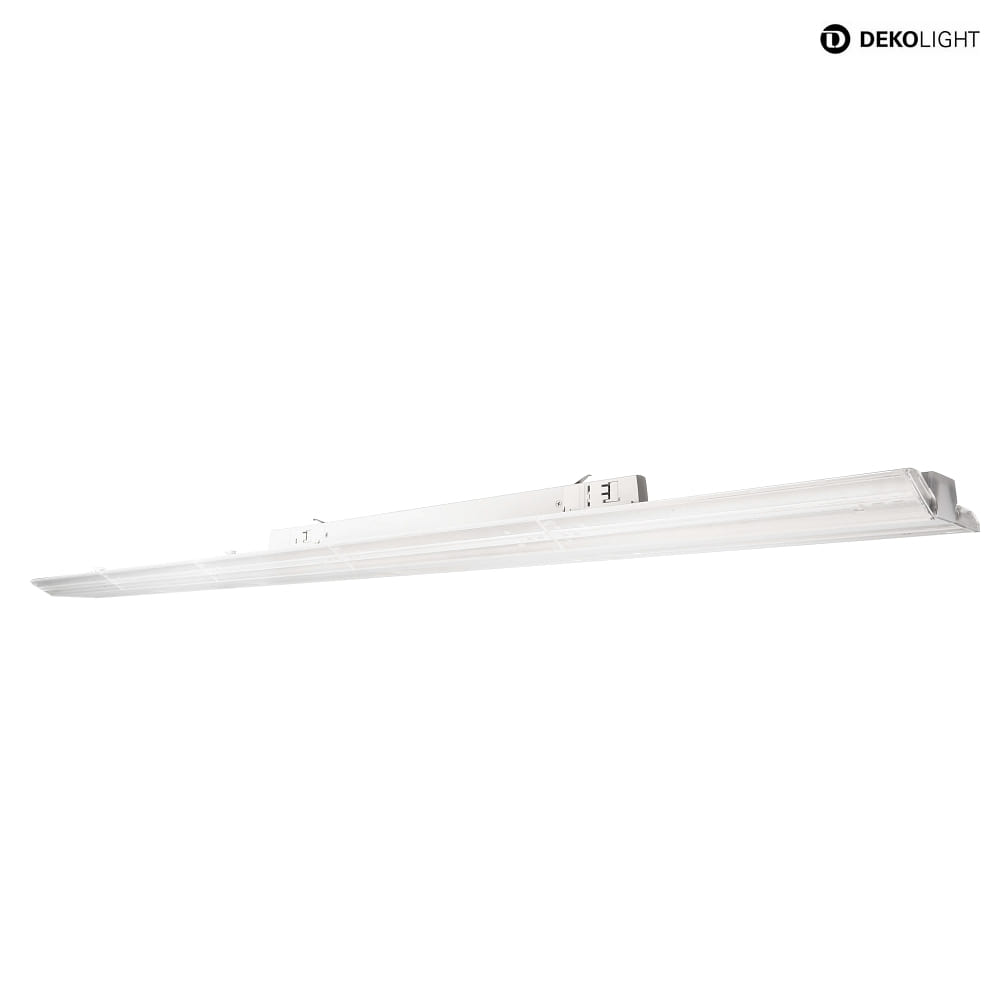

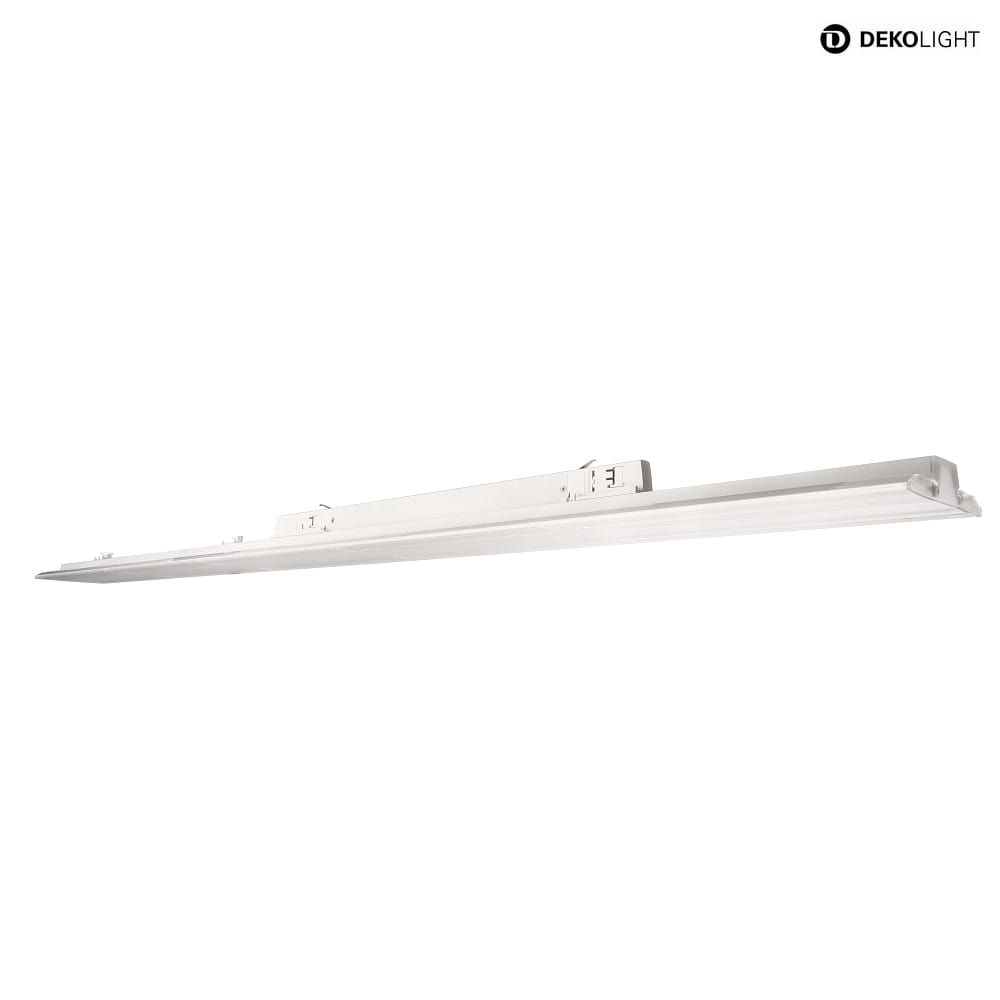

LED 3-phase luminaire LINEAR PRO FOLD

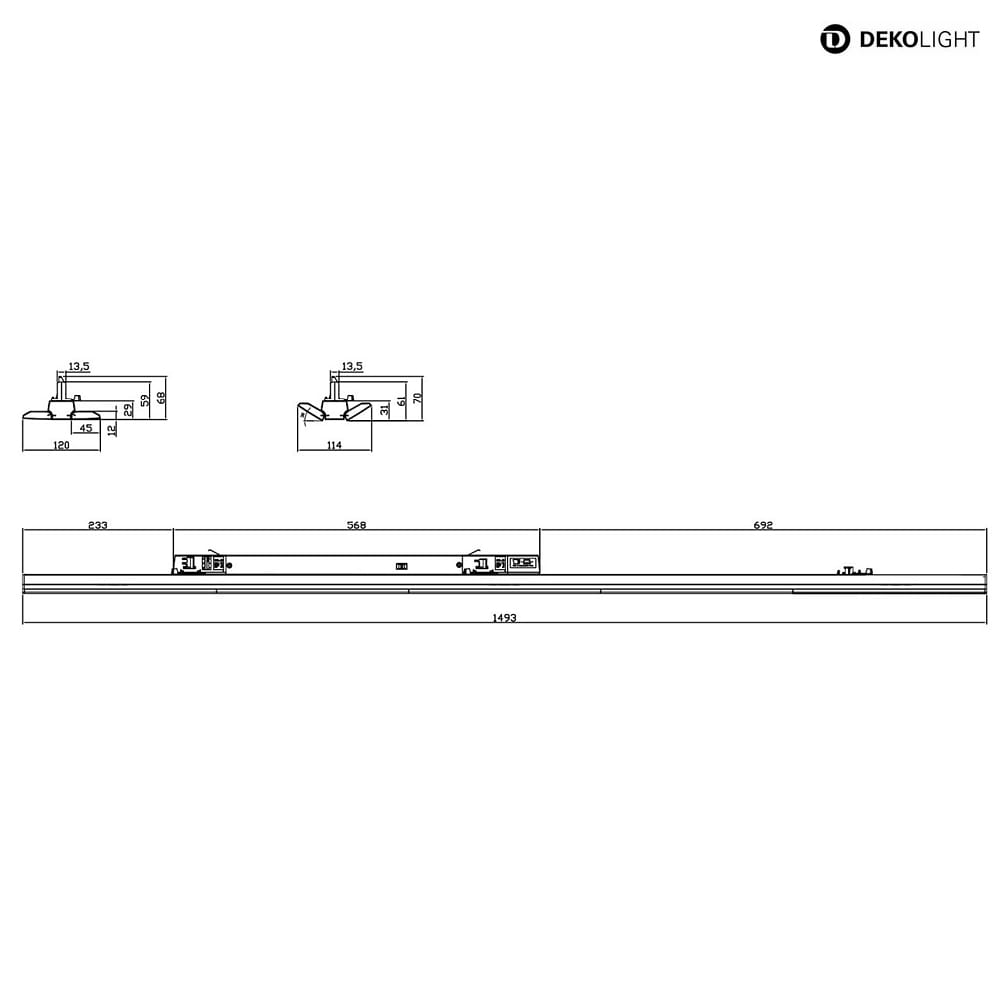

The LED 3-phase luminaire LINEAR PRO FOLD from Deko-Light is a fixed-mounted luminaire with a length of 150cm and a beam angle of 30°. It has a high color rendering index of >90Ra and is compatible with a DALI control system.

Technical details and accessories

The luminaire has a power consumption of 50W and a luminous flux of 7250lm. It has an energy efficiency class of B and a color temperature of 4000K. The material is made of aluminum and polymethyl methacrylate (PMMA). The package includes 3 LED modules TC, consisting of a total of 312 LEDs.

Versatile applications

Thanks to the symmetrical light distribution, the LED luminaire is ideal for use in retail shelves and sales aisles. It is specially designed for indoor use and can be installed in ceiling mounting. The installation is done via a rail system.

Energy efficient and dimmable

With a light output of 145lm/W, the LED 3-phase luminaire LINEAR PRO FOLD is particularly energy efficient. It is also suitable for digital building automation systems, as it has a DALI dimming protocol. The luminaire has an average lamp life of 60000 hours and is eligible for BEG funding.

Additional information

The luminaire has an IP protection rating of IP20 and weighs 2.15kg. It has a switching cycle of 100000 and an ambient temperature of -25 to +40°C. With a color consistency index of 3 SDCM, the luminaire offers a very low tolerance for deviations in light color. The power factor is 0.9 and the light output at the end of the service life is 0.8.
