3-phase recessed track D LINE/DALI 100CM, black

3-Phase Recessed Track D LINE DALI, with wing, 100cm

The 3-Phase Recessed Track D LINE DALI from Deko-Light is a high-quality lighting solution for indoor use. With an operating voltage of 220-240V~ and a max. current load of 48A, it provides reliable and efficient lighting for ceilings and walls.

Technical Details and Application

The recessed track is made of aluminum and has a recess depth of 3.8cm. The recessed opening is rectangular with a length of 100cm and a width of 3.6cm. With an IP protection rating of IP20, the track is protected against dust and contact. It is dimmable and ideal for use in indoor spaces.

Design and Installation

The black lacquered design of the recessed track gives it a modern and elegant look. Installation is done through recessed mounting, allowing for a simple and discreet installation. Recessed mounting ensures secure attachment to the ceiling or wall.

Additional Information and Load Capacity

The 3-Phase Recessed Track supports various dimming protocols, including DALI 1.0 / DT6, DALI 1.0 / DT8, DALI 2.0 / DT6, and DALI 2.0 / DT8. With a load capacity of 25.0 kg/m, the track is robust and stable to safely support various lighting components.

Size and Weight

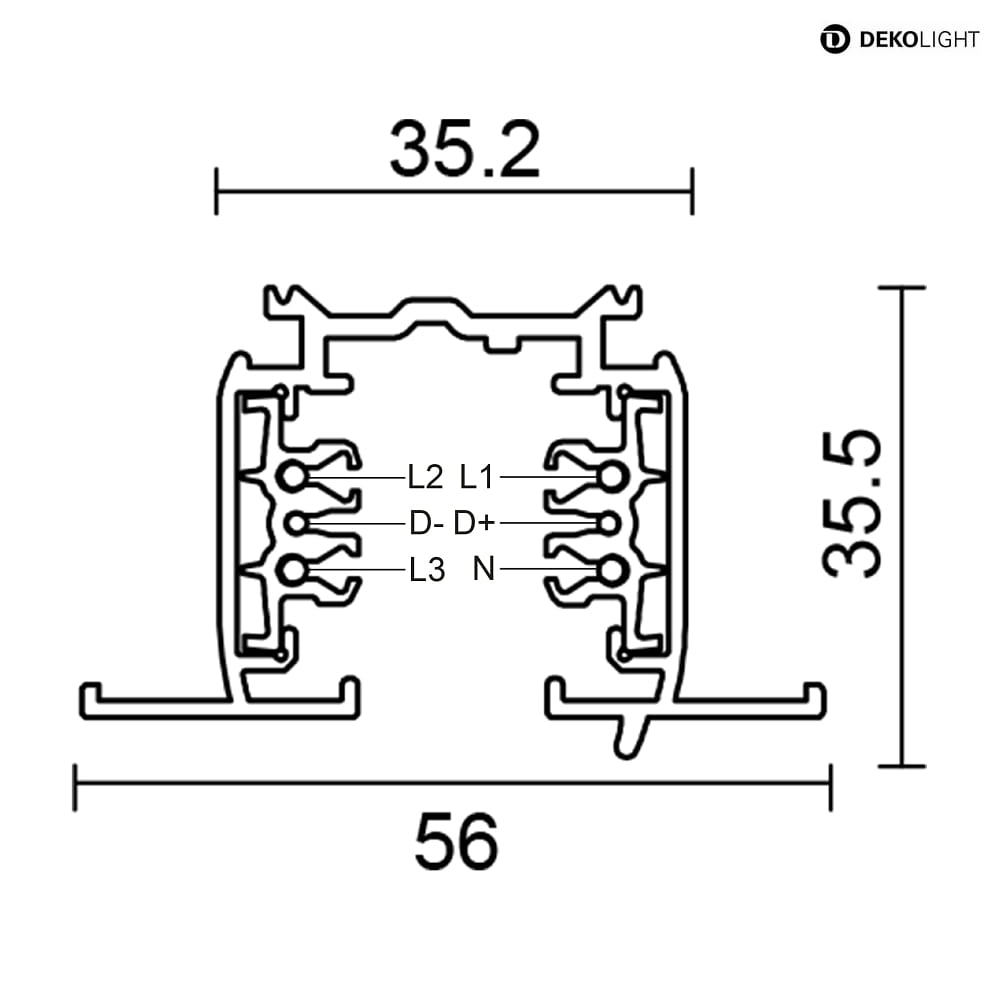

The dimensions of the recessed track are L/W/H: 100/5.6/3.55 cm. With a weight of 1.02kg, it is light and easy to handle. The high quality and modern design make the 3-Phase Recessed Track an ideal solution for professional indoor lighting applications.
