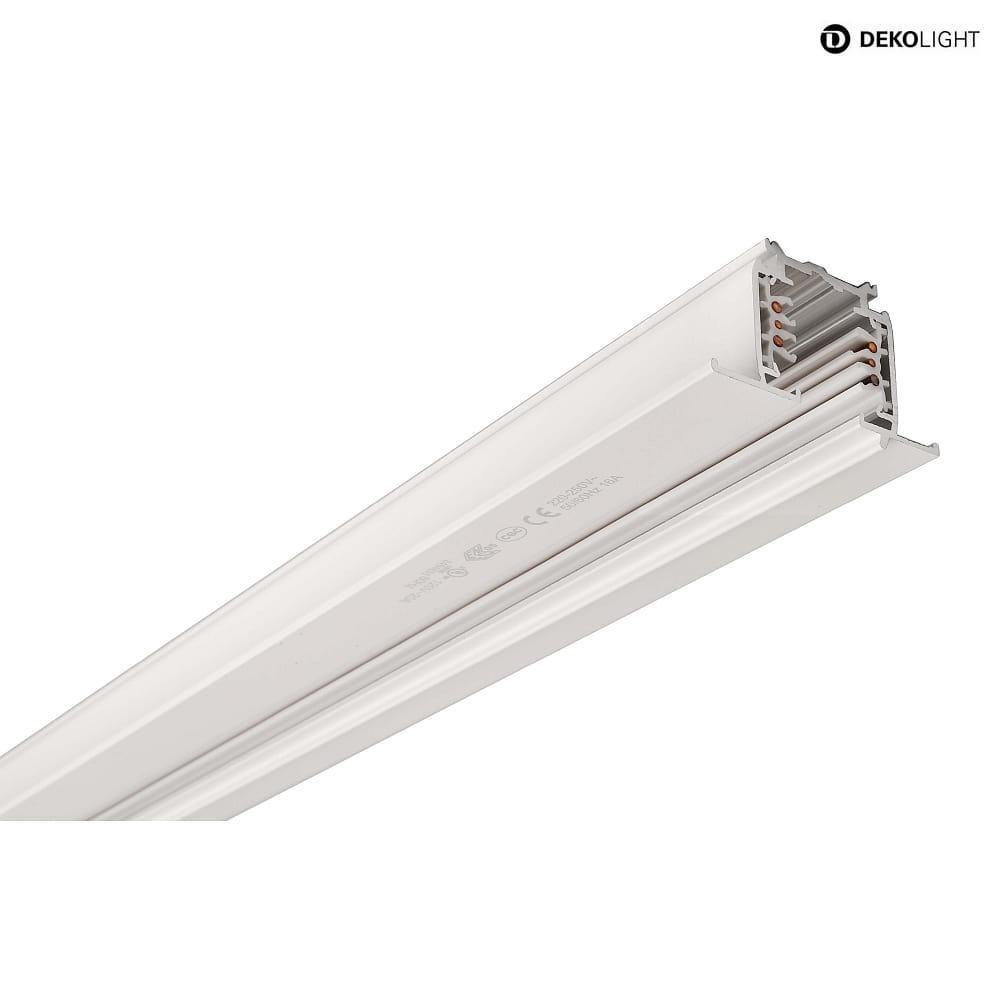

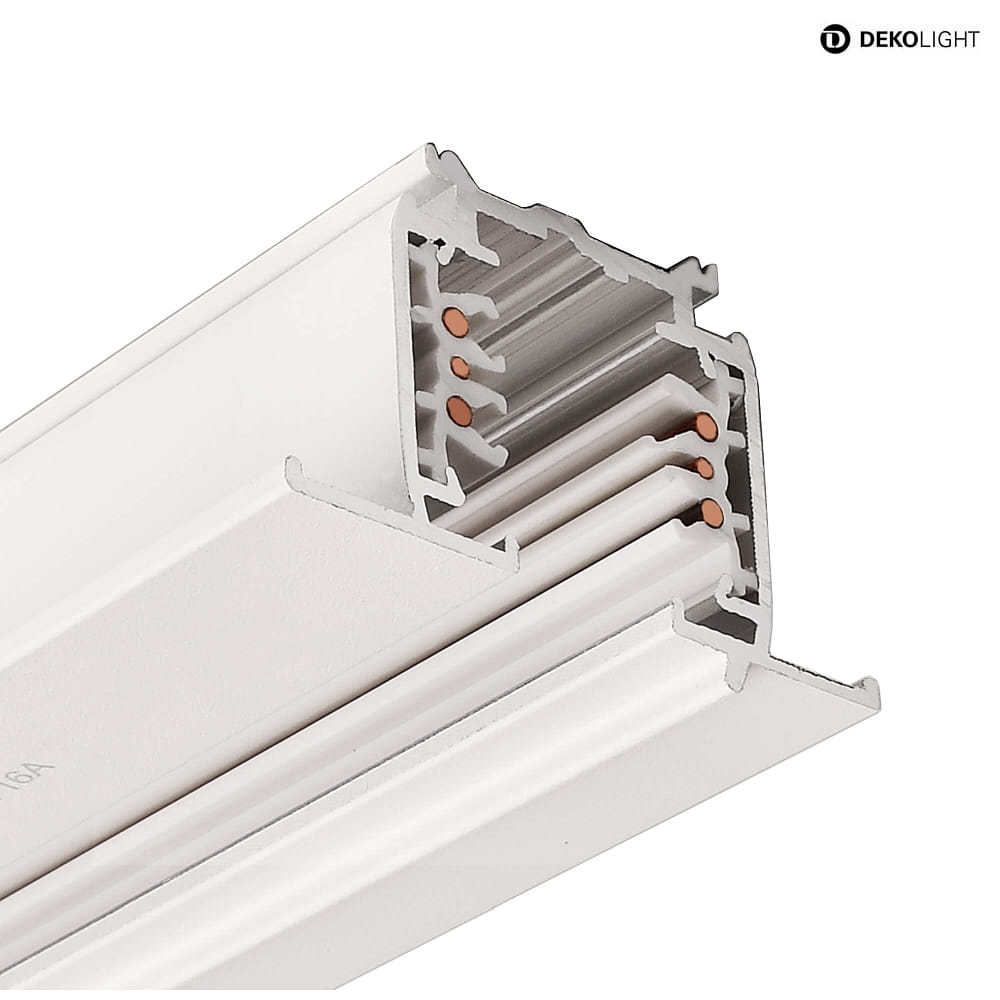

3-phase recessed track D LINE/DALI 200CM, white

Technical Details:

The 3-phase recessed track D LINE DALI from Deko-Light is available with flange and a length of 200cm. The operating voltage is 220-240V~, and the track is dimmable. It can be used on both the ceiling and the wall and is suitable for indoor use only. The color of the track is white, and it weighs 2.04kg. The installation depth is 3.8cm, and the installation opening has a length of 100cm and a width of 3.6cm.

Material and Installation:

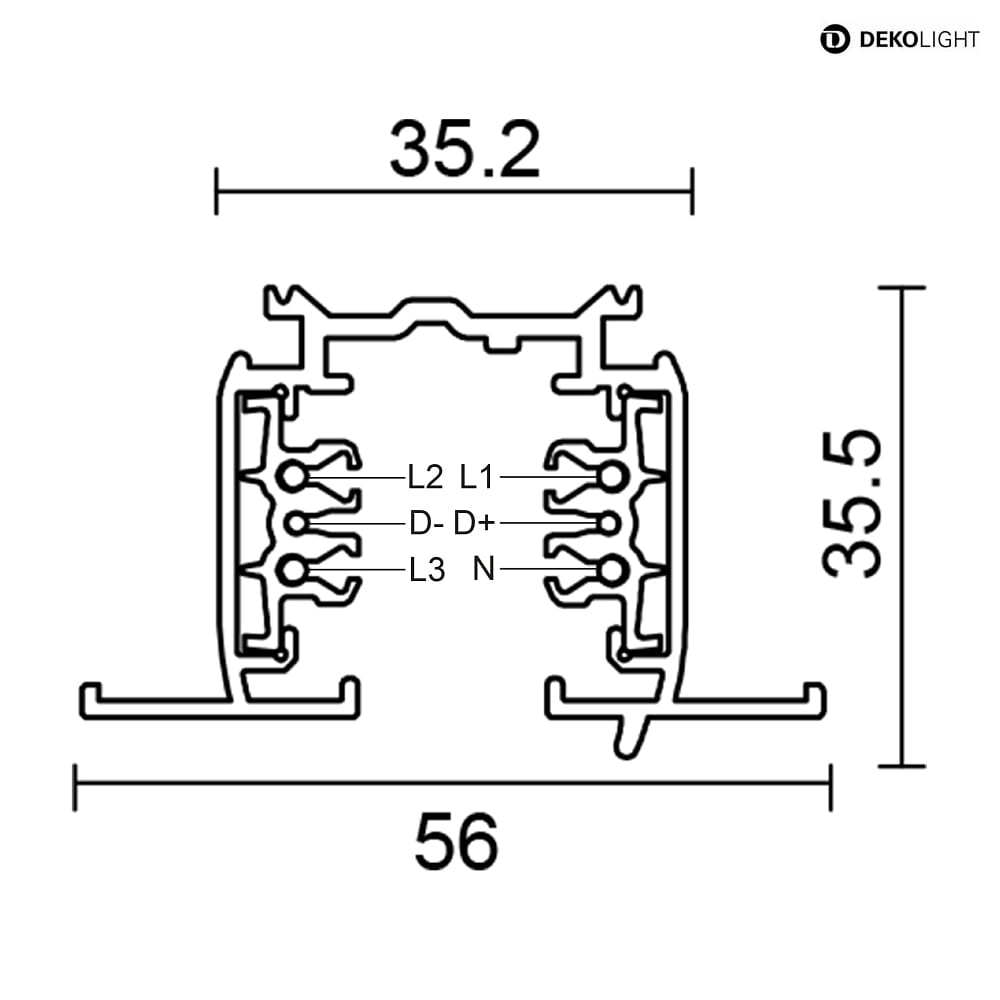

The 3-phase recessed track is made of aluminum and has a maximum current load of 48A. The installation is done through recessed mounting and the track has an IP protection rating of IP20. It is suitable for recessed installation and has a mains frequency of 50-60Hz. The track is 200cm long, 5.6cm wide, and 3.55cm high.

Further Information:

The 3-phase recessed track is equipped with various dimming protocols, including DALI 1.0 / DT6, DALI 1.0 / DT8, DALI 2.0 / DT6, and DALI 2.0 / DT8. The load capacity of the track is 25.0 kg/m. With an installation opening of 100cm in length and 3.6cm in width, the track offers versatile indoor use possibilities.
