3-phase spot BYTE TRACK cylindrical, adjustable GU10 IP20, black matt

Ideal Lux



Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

3-phase track spotlight BYTE TRACK

The 3-phase track spotlight BYTE TRACK is a cylindrical spotlight designed for 3-phase high-voltage systems indoors. It is rotatable and tiltable, making it ideal for lighting ceilings and walls. With its switchable GU10 LED 7W bulb, it provides a warm white light color and very good color rendering (CRI >90Ra).

Material and Color

The track spotlight is made of metal and features Polystyrene (PS) elements. It is in matte black, giving it a modern and timeless appearance. Its round shape and compact dimensions make it a discreet yet stylish lighting element.

Technical Details

The track spotlight has a power consumption of 7W and a luminous flux of 540lm. The color temperature is 3000K and the color rendering index is over 90Ra. With an energy consumption of 7kWh/1,000 h and a lifespan of 25,000 hours, it is also energy-efficient and durable. The installation is done via a track system, and the track spotlight is dimmable with the appropriate accessories.

Accessories and Connection

Included in the delivery are an adapter, a socket, and the switchable LED reflector lamp. The 3-phase track is not included. The track spotlight is connected via a 3-phase adapter and has an operating voltage of 220-240V~. With a weight of only 0.2kg, it is easy to install and position.

Additional Information and Availability

The track spotlight BYTE TRACK is available in black and white and is part of the BYTE series, which includes other items. It offers various options for individual lighting design indoors. Choose the light source based on consumption, light color, beam angle, dimmability, or SmartHome compatibility and create atmospheric lighting in your space.

Colour:
black matt
Glass color:
prisma

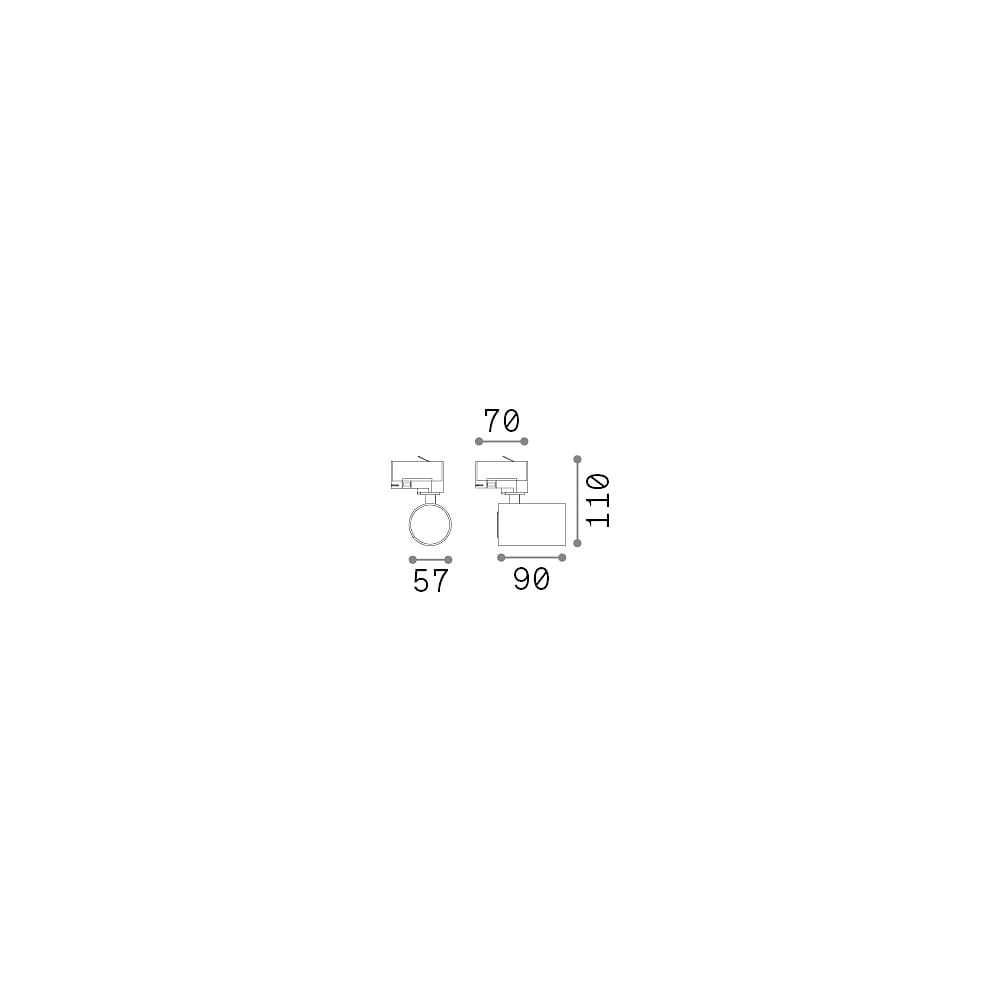

Dimension:
total-L∕ W∕ H: 9∕ 5,7∕ 11 cm
spot-Ø∕ L: 5,7∕ 9 cm
dimensions with adapter-H: 11 cm
lamp-Ø∕ L: 5∕ 5,5 cm
adapter-L: 7 cm
Material:
metal
polystyrene (PS)
Weight:
0,2 kg
Product type:
3-phase spot
Lamp shape:
round
Bulbs in delivery:
yes
Application area:
only suitable for indoor use
Field of application:
ceiling, wall
Socket of the bulb:
GU10
Operating voltage:
220-240 V~
Dimmable:
no
Dimmability:
with optional features only,with dimmable lamps
Power frequency:
50/60 Hz
Power consumption:
7.00 W
Emitting angle:
50 °
Bulb type:
LED
Number of bulbs:
1
Voltage:
3-phase adapter
Light colour:
warm white
Light emission:
direct
Beam direction:
swivelling
Light flux:
540 lm
Maximum lamp wattage:
28
Colour temperature:
3000 K
Average life span of a bulb in hours:
25000 h
Colour rendering index:
>90 Ra
1A
lamp performance:
7.00
Admissible burning position:
209
Mounting:
track based mounting
Protection class:
2
IP-protection class:
IP20
Additional information:
3 beam angles available
Accessories:
adapter included
lampholder included
3-phase track excluded
Energy efficiency category:
F
Energy consumption:
7.00 kWh/1.000 h
Article number:
IDEA-274515
Purchasing quantity:
1 piece
Brand:
Ideal Lux
Manufacturer:
Ideal Lux
Manufacturer information
Ideal Lux S.r.l., Via Taglio Destro, 32, 30035, Mirano, Italy, info@ideal-lux.com, http://www.ideal-lux.com
