3-phase spot MARCO 90 DBT adjustable, switchable, focusable IP20, black

Megaman



Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

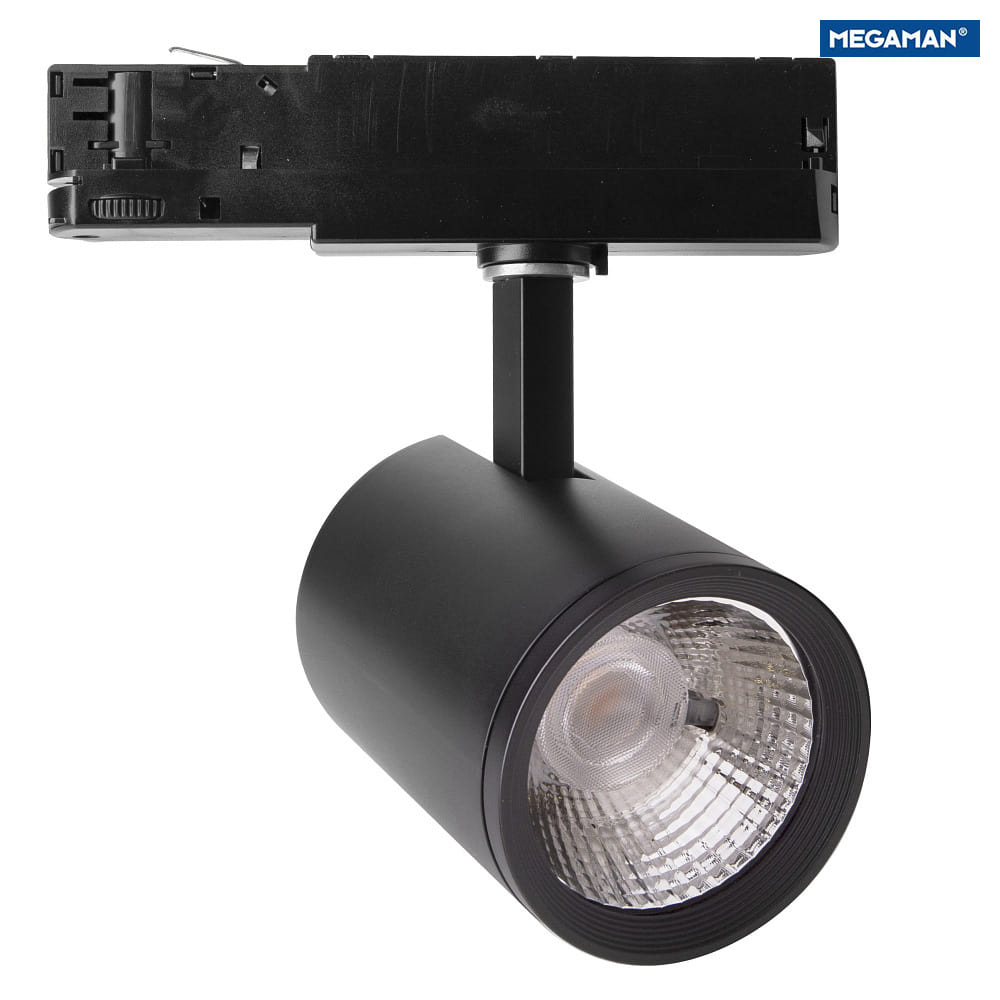

3-Phase Track Spotlight MARCO 90 DBT

The 3-Phase Track Spotlight MARCO 90 DBT from Megaman is a powerful and versatile LED spotlight, ideal for indoor use. With an adjustable beam angle of 25° or 45° thanks to the DUAL BEAM Technology, this spotlight is versatile. The black front ring also provides lateral glare control.

Technical Data

The MARCO 90 DBT has a power consumption of 37W and a luminous flux of 3300lm. The luminous intensity is 19400cd at 25° and 7400cd at 45°. With a color rendering index of 80-89Ra and a color temperature of 3000K, this spotlight offers high color consistency and pleasant warm white light.

Adjustable and switchable

Thanks to the rotating and swiveling spotlight, the MARCO 90 DBT can be optimally aligned with objects. With a rotation range of 330° and the ability to adjust the beam angle as needed, this spotlight offers maximum flexibility in lighting.

Accessories and Applications

The package includes an adapter and a driver, while the power track must be purchased separately. The MARCO 90 DBT is designed for use with a 3-phase adapter and is ideal for mounting on a track system. With a protection class of 2 and an IP20 protection rating, this spotlight is safe and reliable to use.

More Information

The MARCO 90 DBT is available in different housing colors and offers the choice between warm white and neutral white light output. With an average lamp life of 50000 hours and a power factor of 0.9, this spotlight is a durable and efficient lighting solution. Available in other sizes and power levels, the MARCO spotlight is versatile and provides optimal light distribution for any space.

Colour:
black
Glass color:
prisma
partly satined
Reflector color:
glossy
silver
Dimension:
dimensions in straight position-Ø∕ H: 9/19.6 cm
visible part-Ø∕ H: 9/16.5 cm
Material:
die-cast aluminium
plastic
Weight:
0.744 kg
Product type:
3-phase spot
Lamp shape:
round
Bulbs in delivery:
yes
Application area:
suitable for indoor use
Field of application:
ceiling
Operating voltage:
220-240 V~
Dimmable:
no
Power frequency:
50/60 Hz
Power consumption:
37 W
Emitting angle:
25 / 45 °
LED can be replaced :
no
Bulb type:
LED
Voltage:
3-phase adapter
Light colour:
warm white
Light emission:
symmetric
Beam direction:
swivelling
Light flux:
3300 lm
Light intensity:
19400 / 7400 cd
Light yield:
89 lm/W
Colour temperature:
3000 K
Average life span of a bulb in hours:
50000 h
Colour rendering index:
80-89 Ra
1B
Turning range:
330 °
Plug type:
adapter
Mounting:
track based mounting
Protection class:
2
IP-protection class:
IP20
Additional information:
High color consistency when several luminares of the same type are used: SDCM <3
With integrated Dimmer.
Accessories:
power track excluded
adapter included
ring included
driver included
ambient temperature:
-30°C ... + 40°C
Energy consumption:
37 kWh/1.000 h
Article number:
MM78961
Purchasing quantity:
1 piece
Brand:
Megaman
Manufacturer:
Megaman
Manufacturer information
IDV Import- und Direkt- vertriebsges. mbH, Birkenweiherstr. 2, 63505, Langenselbold, Germany, info@megaman.de, https://www.megaman.de
