3-phase spot MARCO MIDI DBT adjustable, with adapter, switchable IP20, silver

Megaman



Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

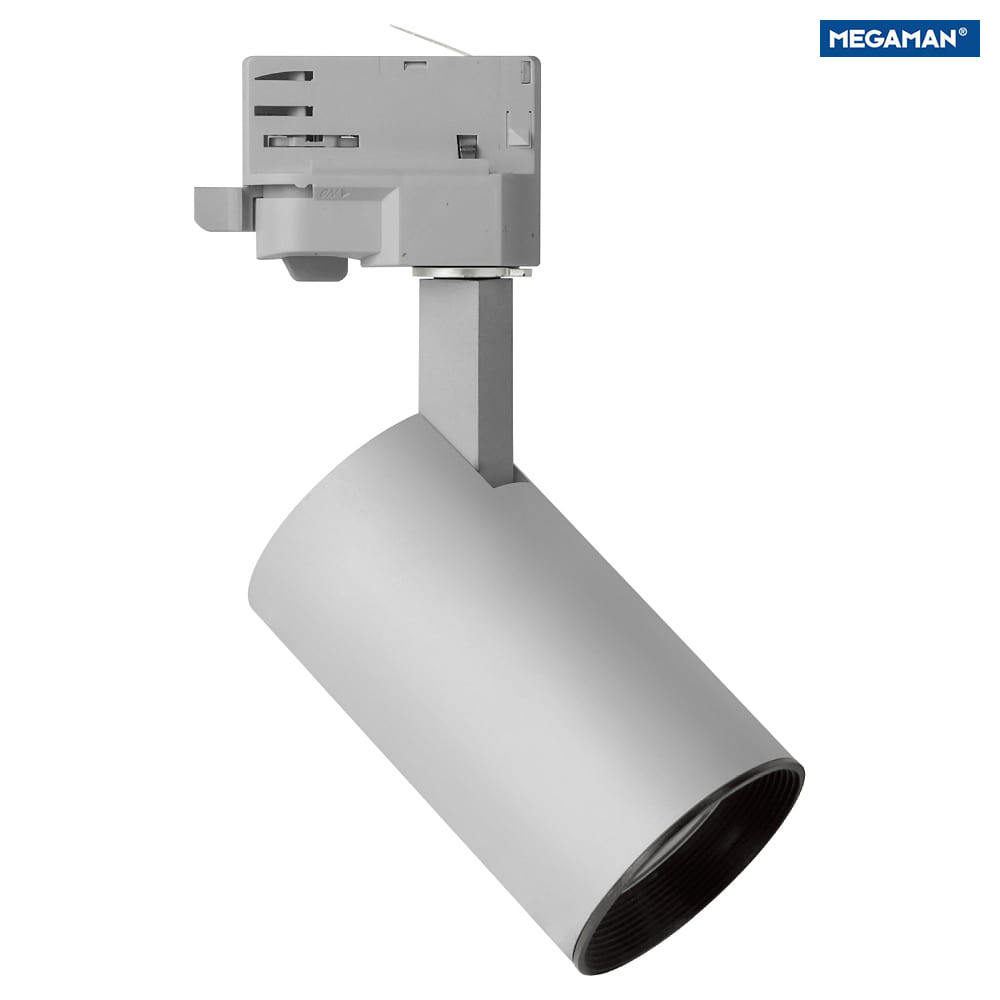

3-Phase Track Spotlight MARCO MIDI DBT

The 3-Phase Track Spotlight MARCO MIDI DBT by Megaman is a high-quality spotlight for indoor use. With a power of 24W and a luminous flux of 2200lm, it provides bright and uniform illumination. The spotlight features the innovative DUAL BEAM Technology (DBT), which allows you to choose between two different beam angles of 25° or 45°.

Adjustable and switchable

The MARCO MIDI DBT spotlight is adjustable and switchable, allowing for flexible adaptation to individual requirements. With a swivel range of 330° and a pivotable spot, the light can be optimally directed towards objects. The spotlight is equipped with a black front ring for lateral glare control.

High color consistency and energy efficiency

Thanks to the high color consistency when using multiple identical luminaires with an SDCM value of <3, a consistent light quality is ensured. With a power factor of 0.9 and an energy consumption of 24kWh/1,000 h, the spotlight is also energy-efficient and environmentally friendly.

Universally applicable

The MARCO MIDI DBT spotlight comes with a universal adapter, allowing for easy mounting on standard 3-phase track systems. It is available in different housing colors and offers a choice between warm white or neutral white light output. Additionally, the MARCO spotlights are also available in other sizes and power levels.

Technical details and dimensions

The MARCO MIDI DBT spotlight has a beam angle of 25 / 45° and a color temperature of 4000K. With a color rendering index of >80Ra and a color rendering grade of 1B, it guarantees natural and accurate lighting. The spotlight is made of high-quality aluminum die-cast and plastic, weighs 0.48kg, and has dimensions of Ø 6.5/19.8 cm in straight position and Ø 6.5/16.4 cm in the visible part.

Colour:
silver
Secondary color:
black
Glass color:
prisma
partly satined
Reflector color:
glossy
silver
Dimension:
dimensions in straight position-Ø∕ H: 6.5/19.8 cm
visible part-Ø∕ H: 6.5/16.4 cm
Material:
die-cast aluminium
plastic
Weight:
0.48 kg
Product type:
3-phase spot
Lamp shape:
round
Bulbs in delivery:
yes
Application area:
suitable for indoor use
Field of application:
ceiling
Operating voltage:
220-240 V~
Dimmable:
no
Power frequency:
50-60 Hz
Emitting angle:
25 / 45 °
LED can be replaced :
no
Bulb type:
LED
Voltage:
3-phase adapter
Light colour:
neutral white
Light emission:
direct
Beam direction:
swivelling
Light flux:
2200 lm
Light intensity:
10700 / 4300 cd
Colour temperature:
4000 K
Average life span of a bulb in hours:
50000 h
Colour rendering index:
>80 Ra
1B
Turning range:
330 °
Plug type:
adapter
Mounting:
track based mounting
Protection class:
2
IP-protection class:
IP20
Additional information:
2 beam angels and light intensity out of one luminaire: 24° (5500cd) / 36° (2650cd)
High color consistency when several luminares of the same type are used: SDCM <3
With integrated Dimmer.
Accessories:
3-phase track excluded
adapter included
ring included
driver included
ambient temperature:
-30°C ... + 40°C
Article number:
MM78955
Purchasing quantity:
1 piece
Brand:
Megaman
Manufacturer:
Megaman
