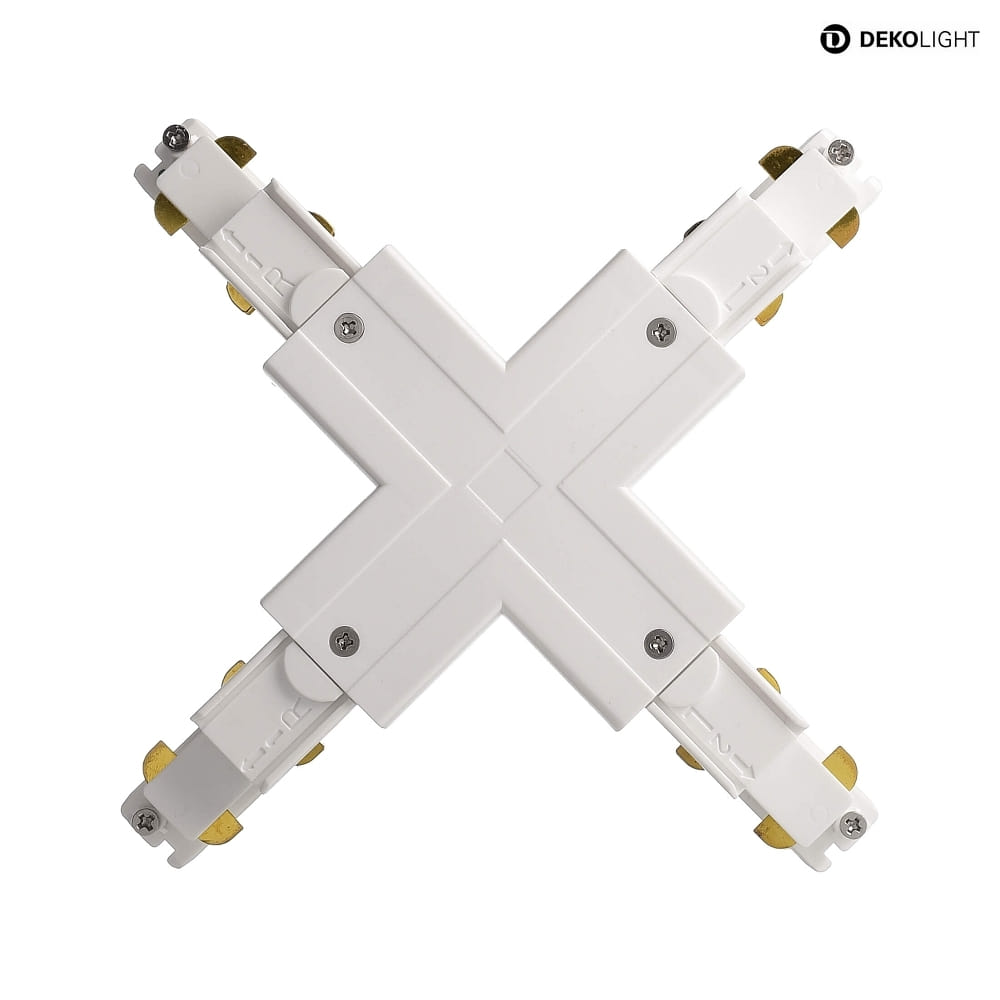

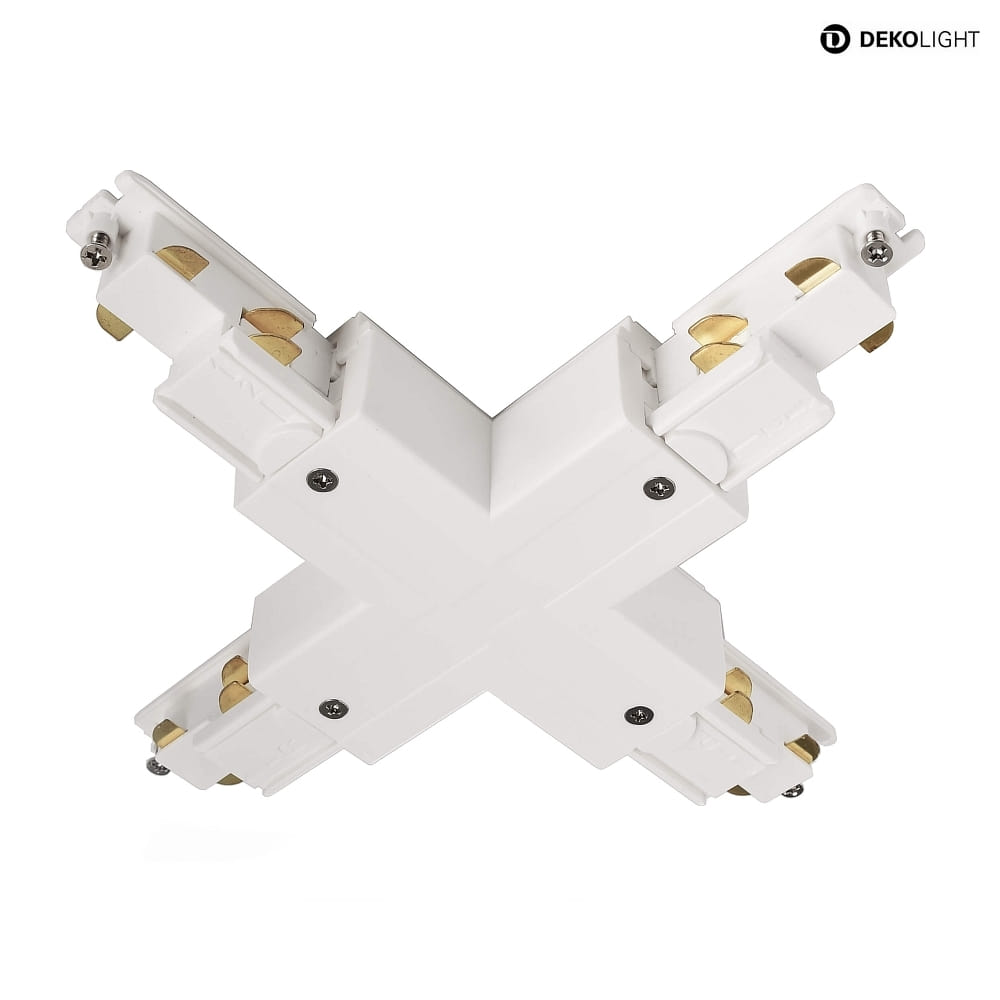

3-phase X-connector D LINE/DALI DALI controllable, left-left-right, white

Accessories for 3-phase power track D LINE DALI - X-connector left-left-right-right

The X-connector left-left-right-right is the ideal accessory for the 3-phase power track D LINE DALI. With this product, you can easily and flexibly connect and expand your lighting systems.

Technical details

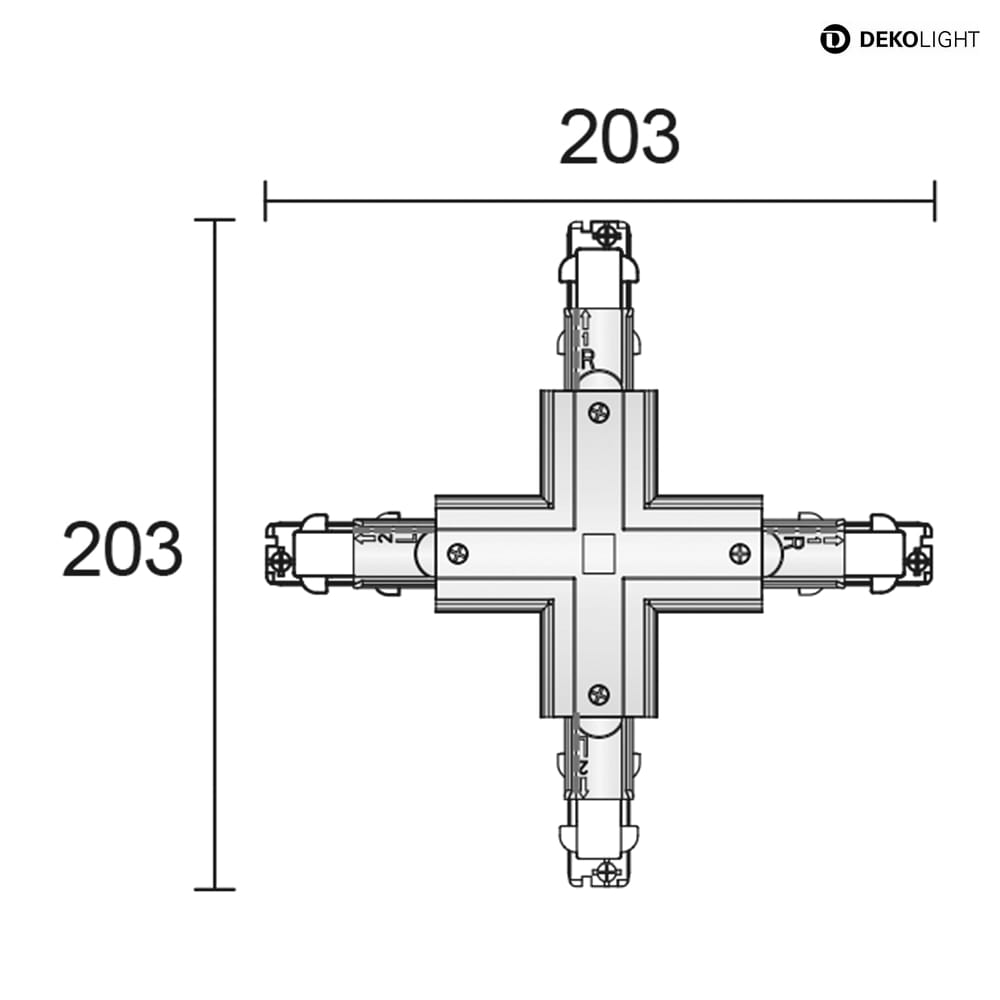

The operating voltage of the X-connector is 220-240V~, and it is dimmable. It can be used on both the ceiling and the wall and is suitable for indoor use only. The size of the product is 20.3 x 20.3 x 3.55 cm and it weighs 0.265kg. The X-connector has an IP protection rating of IP20 and is made of plastic.

Maximum current load and installation

The X-connector can be operated with a maximum current load of 48A. It is mounted as a rail system and has a mains frequency of 50-60Hz. This product is specifically designed for indoor use and ensures easy and secure installation.

Brand and additional information

The X-connector comes from Deko-Light, a renowned brand for high-quality lighting solutions. In addition to the technical details mentioned above, the X-connector supports various dimming protocols, including DALI 1.0 / DT6, DALI 1.0 / DT8, DALI 2.0 / DT6, and DALI 2.0 / DT8.

Conclusion

With the X-connector left-left-right-right for the 3-phase power track D LINE DALI, you get a reliable and powerful accessory that optimally connects your lighting systems. Thanks to its high quality, flexibility, and easy installation, this X-connector is the perfect addition to your lighting project.
