bluetooth dimmer CASAMBI DEBTPRO14-144 PWM4 built-in version, voltage constant, 4 channel, tunable white, RGBW, programmable

CASAMBI

Print product information sheet▶

question regarding the article

CASAMBI bluetooth dimmer CASAMBI DEBTPRO14-144 PWM4 built-in version, voltage constant, 4 channel, tunable white, RGBW, programmable

Print product information sheet▶

question regarding the article

CHF 76,65

excl. Shipping costs / excl. VAT
Recommended retail price: CHF 98.90

You save 22,5 %

Shipping time: 4-5 weeks

Product no.: ARD-800385
In stock: 30

Alternative product variants:

bluetooth dimmer CASAMBI DEBTPRO14-144 PWM4 built-in version, voltage constant, 4 channel, tunable white, RGBW, programmable bluetooth dimmer CASAMBI DEBT2PRO14-120 built-in version, 2 channel, voltage constant, tunable white, programmable bluetooth dimmer CASAMBI CS-DEBTPRO14-144 PWM4 ORIG built-in version, voltage constant, 1 channel, programmable, white

Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

To business registration

Description
Technical details

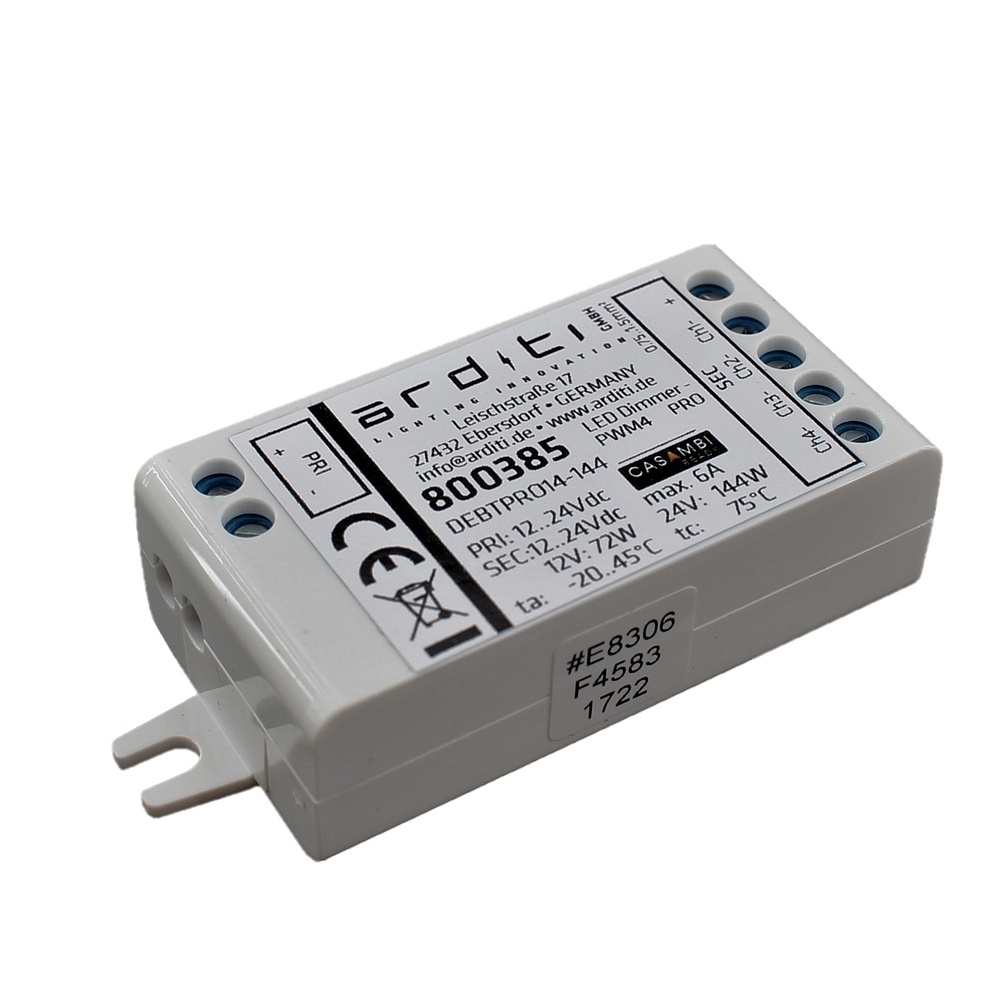

LED Bluetooth Dimmer CASAMBI DEBTPRO14-144 CBU-PWM4

The LED Bluetooth Dimmer CASAMBI DEBTPRO14-144 CBU-PWM4 is a recessed dimmer that operates with a supply voltage of 12-24V DC. It features CASAMBI control and a PWM output for precise dimming.

Versatile Use

This dimmer is suitable for use on ceilings and walls indoors. It can be used with LED or halogen light sources, which are not included.

Configurable and Powerful

The dimmer offers the ability to configure 5 channels through profile selection, including Tunable White, RGB, RGBW, and 4 independent channels. The maximum output power is 50W per channel at 12V DC and 100W at 24V DC.

Easy Operation via App

With the CASAMBI app, you can wirelessly control and customize the dimmer. Setup is done without a gateway, but optional setup is possible. The range is up to 30 meters.

Safe and Reliable

The Bluetooth dimmer has a built-in antenna and operates at a frequency of 2.4 to 2.483 GHz. It is configured for parallel connected LEDs and offers a PWM dimming frequency of 10 MHz. Please note that it should not be switched in the secondary circuit.

Colour:

white

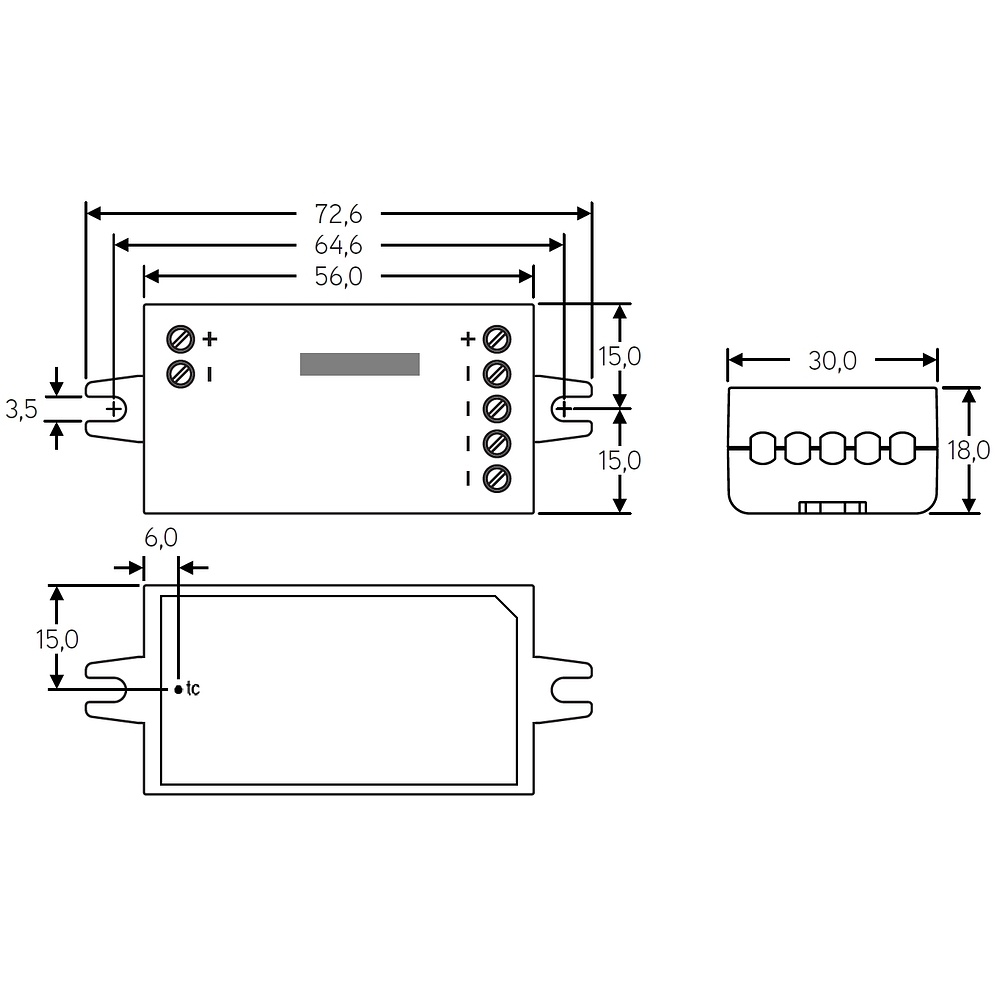

Dimension:

drill hole spacing top-L: 6,46 cm
Abmessungen-L∕ W∕ H: 7,26∕ 3∕ 1,8 cm

Product type:

bluetooth dimmer

Bulbs in delivery:

Application area:

only suitable for indoor use

Field of application:

wall
ceiling

Operating voltage:

12-24 V=

Dimmable:

yes

Dimmability:

CASAMBI App & Bluetooth, PWM dimming

Bulb type:

LED

Voltage:

Clamp

Max. current carrying capacity:

6 A

Current consumption:

max. 6 A

Plug type:

clamping connection

Mounting:

recessed mounting

Protection class:

IP-protection class:

IP20

Accessories:

Bluetooth module included
receiver included
antenna included
smart device excluded
remote control excluded
connection cable excluded
control gear excluded
converter included

ambient temperature:

-20 +40 °C

Tc (°C):

60 °C

Article number:

ARD-800385

Purchasing quantity:

1 piece

Brand:

CASAMBI

Manufacturer:

CASAMBI

Manufacturer information
Casambi Technologies Oy, Alberga Business Park Bertel Jungin Aukio 1 C, 02600, Espoo, Finland, support@casambi.com, https://casambi.com
