ceiling luminaire BLIEK ROUND 1.0 - LED with leaf springs, cardanic swivelling, semi flush IP20, mat, traffic white dimmable

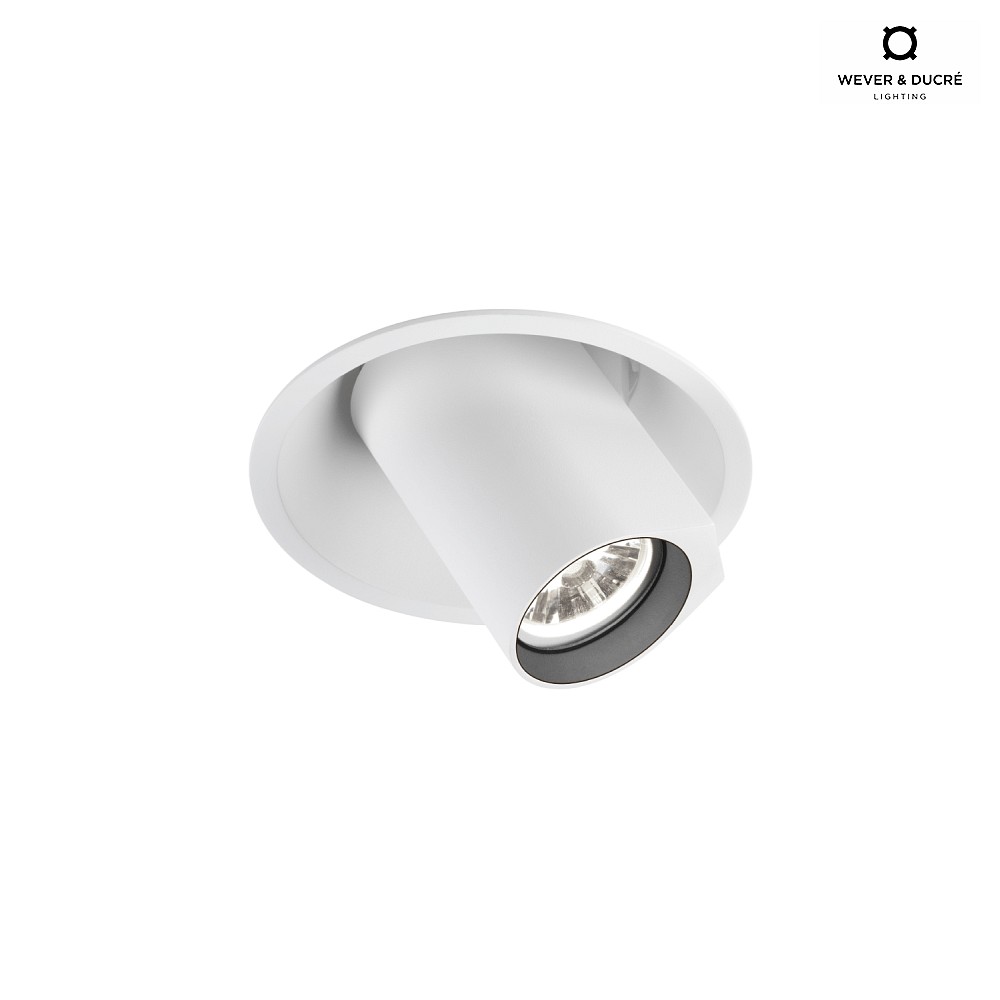

LED Semi-recessed spotlight BLIEK ROUND 1.0

The LED semi-recessed spotlight BLIEK ROUND 1.0 from Wever & Ducré is a high-quality cylinder spotlight with an operating voltage of 17V. With a power consumption of 6/9W and a light output of 605/800lm, it provides bright and energy-efficient lighting. The color rendering index of over 90Ra ensures accurate color representation.

Technical Details

The color temperature of the spotlight is 3000K and the beam angle is 15°. The average lamp lifespan is an impressive 55000 hours. The LED semi-recessed spotlight BLIEK ROUND 1.0 has energy efficiency class D and protection class 3. It is IP20 protected and can be covered with insulation material.

Accessories and Dimensions

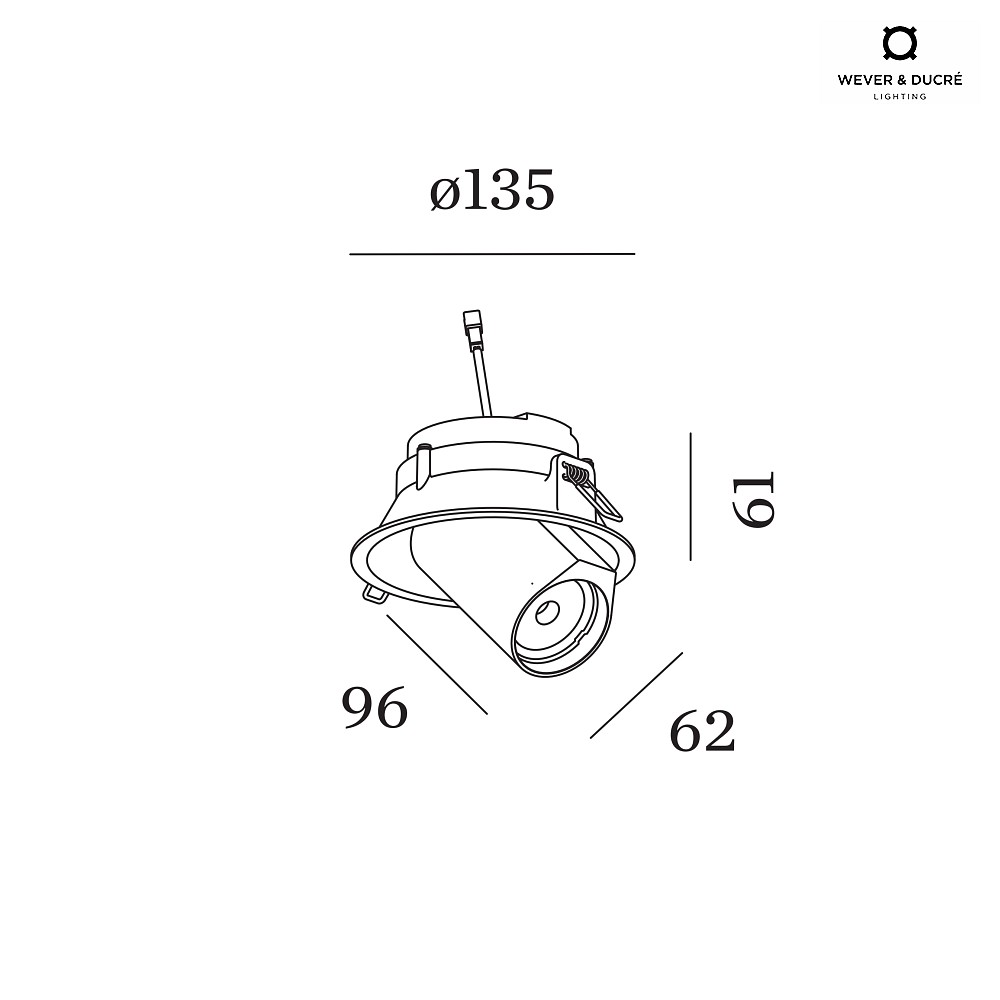

Included in the delivery are leaf springs, installation housing, and a system connector. Dimmers and drivers are not included. The visible part of the spotlight has a diameter of 13.5 cm and a height of 9.6 cm. The installation height is 6.1 cm. The spotlight itself has a diameter of 6.2 cm and a length of 9.6 cm.

Installation and Application

The LED semi-recessed spotlight BLIEK ROUND 1.0 can be mounted with leaf springs and is suitable for various ceiling thicknesses and types. The suitable ceiling cutout is 12.7 cm and the recommended ceiling thickness is above 0.4 cm. The spotlight is IC rated and belongs to Photobiological Risk Group RG3.

Additional Information

The color consistency of the LED semi-recessed spotlight BLIEK ROUND 1.0 is 2 SDCM, which means a very low tolerance of deviations in light color when using multiple identical luminaires. Other versions of the BLIEK series are also available to realize various lighting concepts.
