ceiling luminaire BLIEK SQUARE 1.0 - LED cardanic swivelling, semi flush, with wire springs IP20, mat, traffic white dimmable

Wever & Ducré



Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

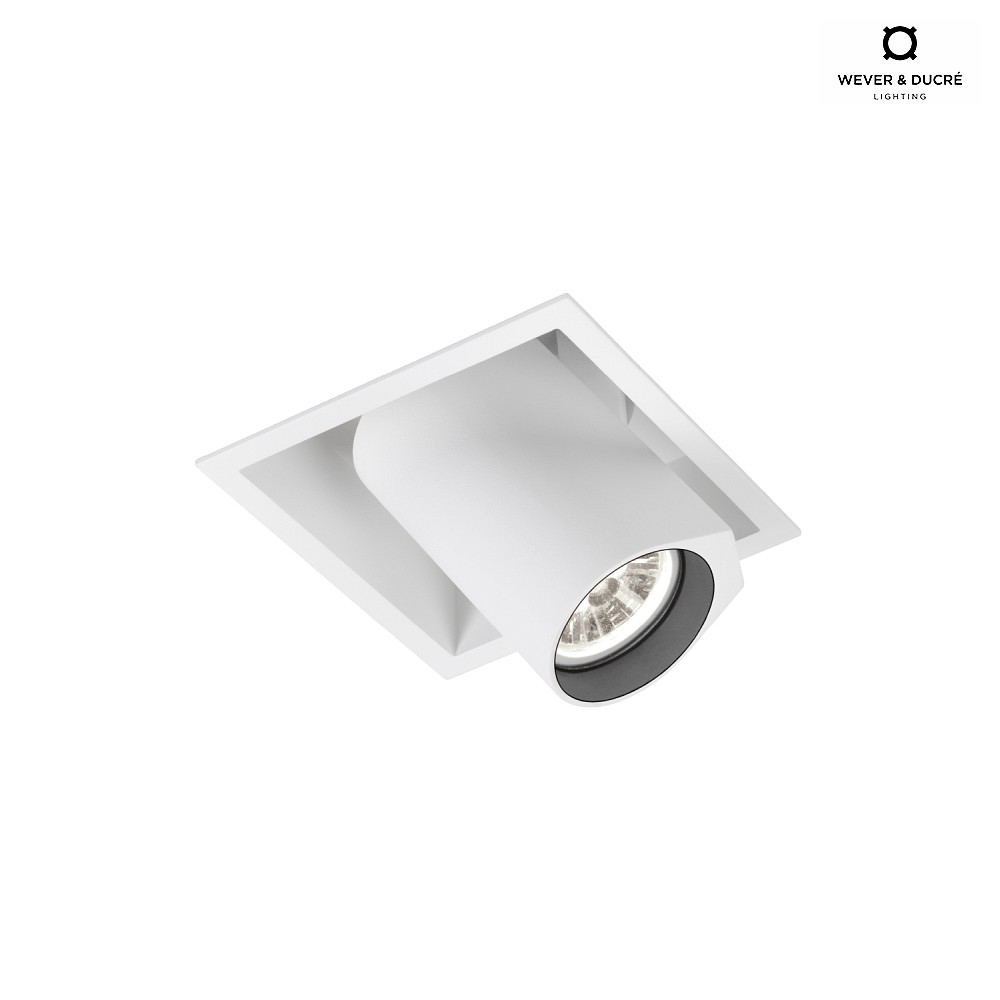

LED Semi-Recessed Spotlight BLIEK SQUARE 1.0

The LED Semi-Recessed Spotlight BLIEK SQUARE 1.0 by Wever & Ducré is a high-quality ceiling spotlight for indoor use. It features a cylindrical head with an integrated LED spot, housed in a square recessed frame with an overhanging trim.

Optimal Light Alignment

Thanks to the swiveling and almost fully rotatable head, optimal alignment of the light cone is possible. The spotlight is gimbal-mounted and is particularly suitable for object lighting, as it offers a narrow light beam with very good color rendering (CRI >90Ra, Grade 1A).

Dimmable and Powerful

The LED spotlight can be operated in two power levels: 6 watts or 9 watts. The dimmable light output depends on the selected driver (see accessories). This allows for individual adjustment of light intensity.

Easy Installation and Versatile Application

Thanks to the rear wire springs / clip springs, installation of the spotlight is quick and tool-free, especially in cavity ceilings. The spotlight is suitable for a ceiling cutout of 11 x 11cm and for ceiling thicknesses of 0.4cm to 2.5cm. It is also IC rated and can be covered with insulation material.

Additional Information and Notes

The LED Semi-Recessed Spotlight BLIEK SQUARE 1.0 has an average lamp lifespan of 55,000 hours and an energy efficiency class of D. It comes with accessories such as clip springs, recessed housings, and plugs, while a dimmer and driver are available separately. Other versions of the BLIEK series are also available.

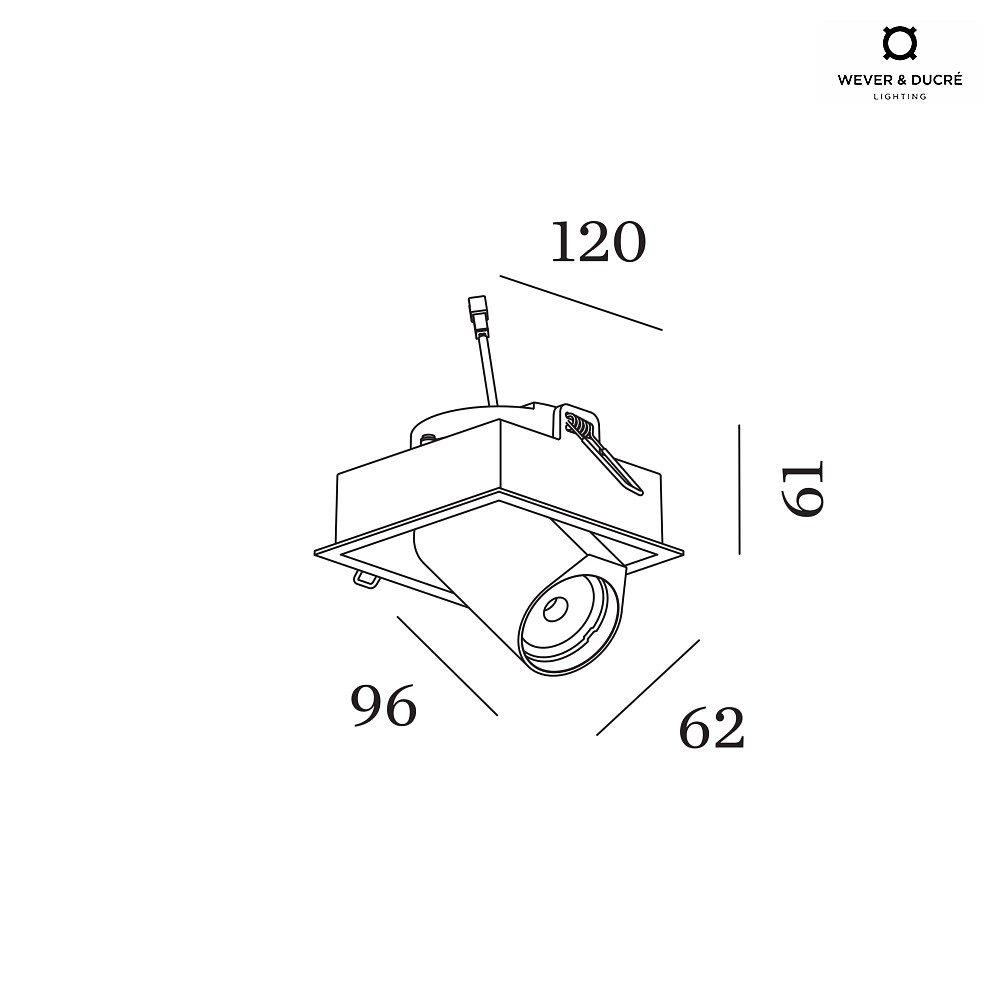

Dimension:
dimensions (folded)-L∕ W∕ H: 12∕ 12∕ 12,3 cm
max.-H: 15,7 cm
visible part-L∕ W∕ H: 12∕ 12∕ 9,6 cm
spot-Ø∕ L: 6,2∕ 9,6 cm
reccessed part-H: 6,1 cm
Weight:
0,47 kg
Product type:
ceiling luminaire
Operating voltage:
17.00 V=
Dimmable:
yes
Dimmability:
depending on the control gear
Power consumption:
6/9 W
Emitting angle:
15 °
Voltage:
system connector
Beam direction:
swivelling
Light flux:
570/760 lm
Colour temperature:
2700 K
Average life span of a bulb in hours:
55000 h
Colour rendering index:
>90 Ra
1A
Admissible burning position:
512
Protection class:
3
IP-protection class:
IP20
Accessories:
clip springs included
mounting housing included
plug included
dimmer excluded
driver excluded
Energy efficiency category:
D
Purchasing quantity:
1 piece
Brand:
Wever & Ducré
Manufacturer:
Wever & Ducré
Manufacturer information
WEVER & DUCRÉ BV, Spinnerijstraat 99/21, 8500, Kortrijk, Belgium, office@weverducre.com, https://www.weverducre.com/
