ceiling luminaire SOLID 1.0 - LED cylindrical, DALI controllable, cardanic swivelling IP20, copper dimmable

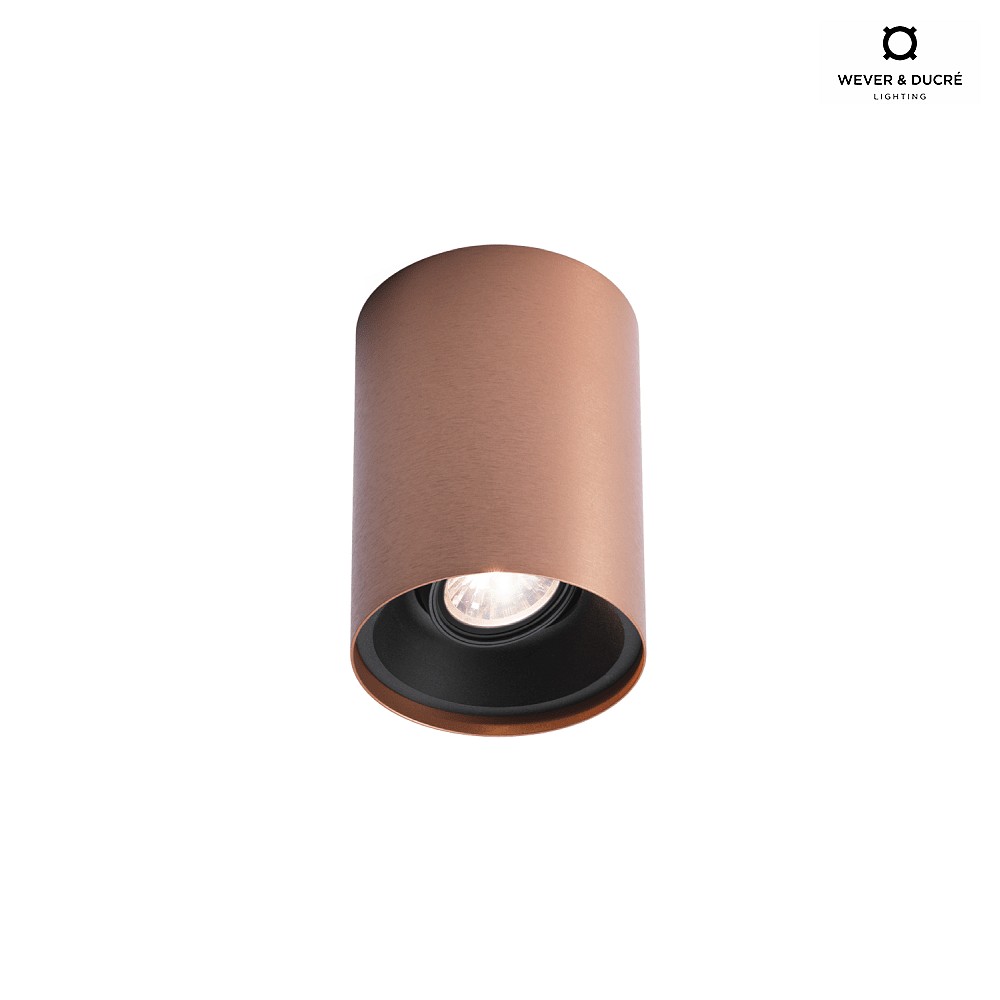

LED Surface-mounted Downlight SOLID 1.0

The LED Surface-mounted Downlight SOLID 1.0 from Wever & Ducré is a high-quality cylindrical LED surface-mounted spotlight for use in dry indoor areas. With a power consumption of 12W and a luminous flux of 800lm, it offers an excellent lighting solution. Thanks to digital dimming via DALI-2, it is ideal for integration into modern building automation systems.

Technical Details

The LED Surface-mounted Downlight SOLID 1.0 has a beam angle of 56° and a color temperature of 3000K. With a color rendering index of >90Ra (grade 1A), it ensures optimal and natural representation of colors. The robust construction made of powder-coated and wet-painted aluminium die-cast guarantees a long product lifespan.

Flexibility and Comfort

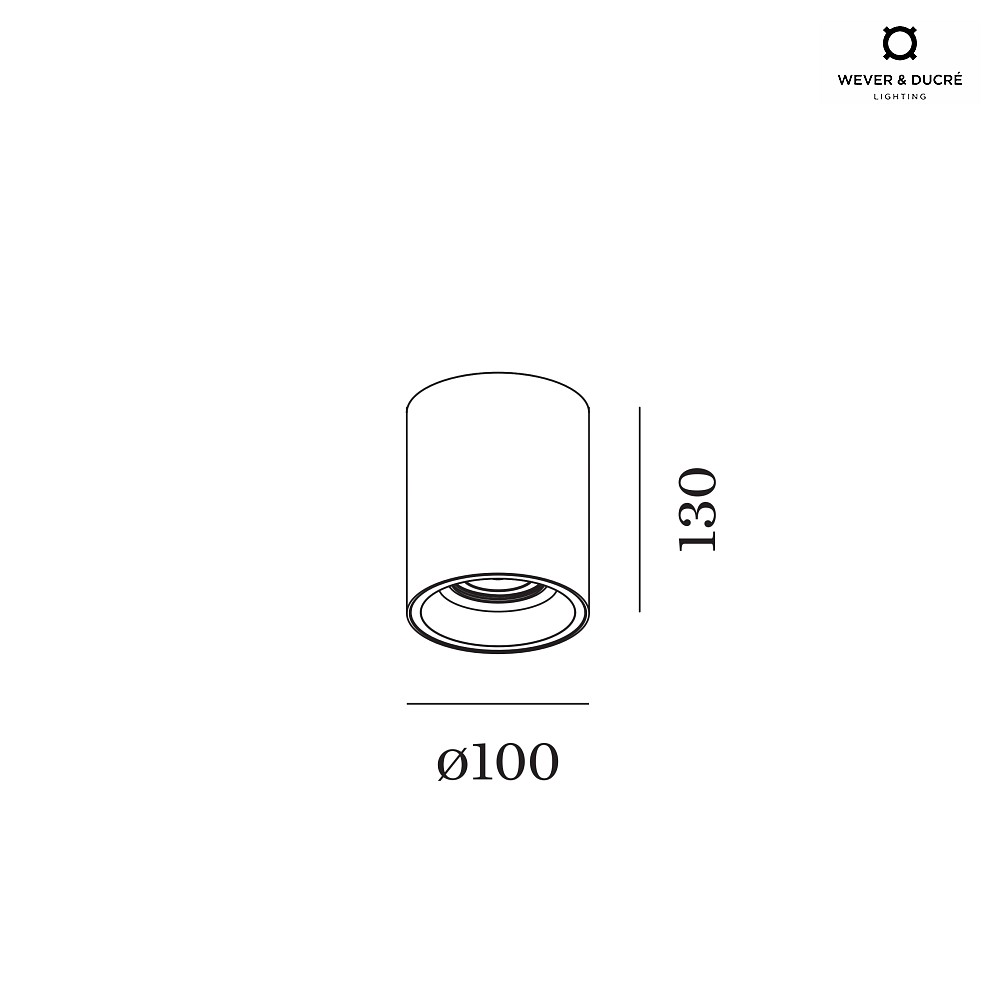

Thanks to the swiveling and almost fully rotatable LED module insert, an optimal alignment of the light cone is possible. The LED Surface-mounted Downlight SOLID 1.0 features elegant surfaces in black powder-coated and metallic matt wet-painted finishes. With a size of Ø/H: 10/13 cm, it fits into almost any ceiling and offers an extremely wide beam optics (Wide Flood).

Energy Efficiency and Safety

The LED Surface-mounted Downlight SOLID 1.0 is equipped with an integrated LED driver and can be directly connected to the 230V AC mains voltage. With an energy consumption of 12kWh/1,000 h and an average lamp lifespan of 50,000 hours, it belongs to energy efficiency class D. The IP20 protection class ensures additional safety.

Various Options

The LED Surface-mounted Downlight SOLID 1.0 is available in different housing colors, light colors, and beam angles. Additionally, it can also be purchased as an analog dimmable version (phase cut). Other products from the SOLID series by Wever & Ducré offer additional possibilities for individual lighting design.
