ceiling luminaire TRACE GRID 1.0 down, direct IP20, champagner, mat, deep black dimmable

Wever & Ducré



Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

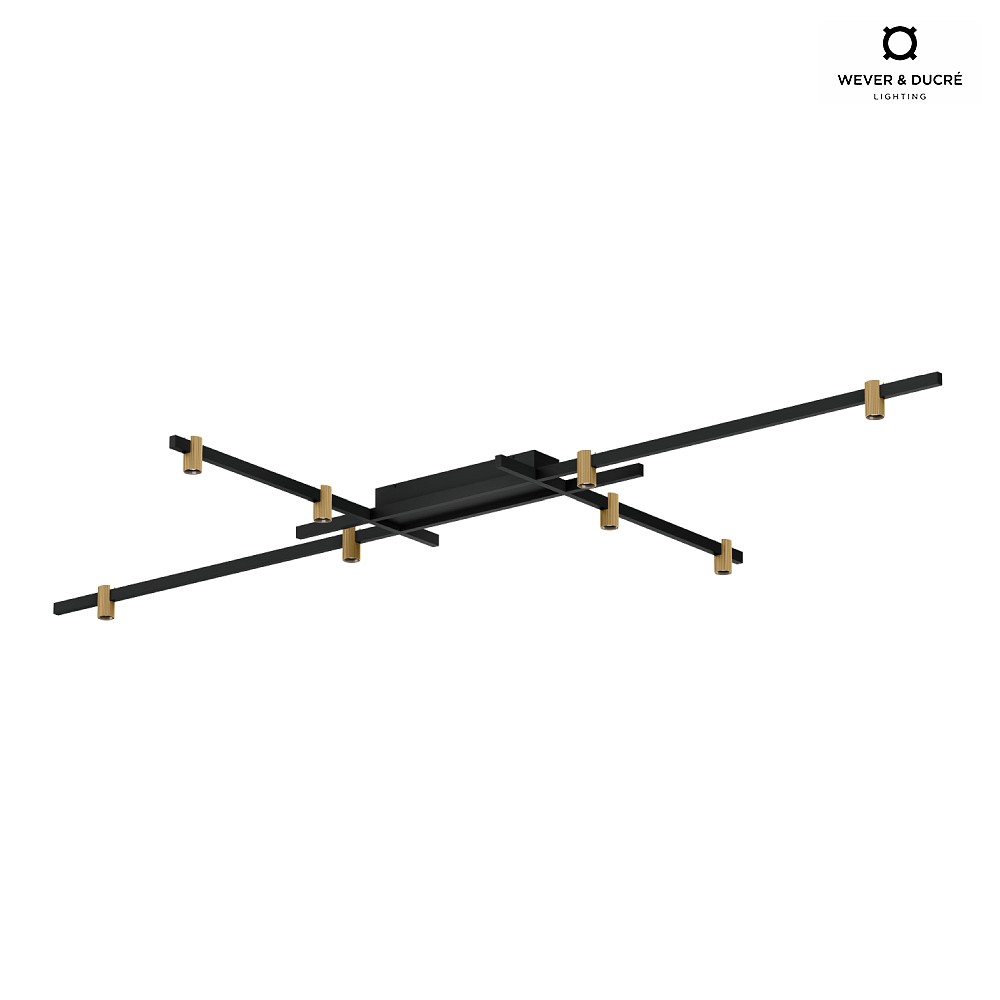

LED Ceiling Light TRACE GRID 1.0

The LED ceiling light TRACE GRID 1.0 from Wever & Ducré is a striking, minimalist ceiling light equipped with 8 spots shining directly downwards. The light is made of high-quality matte powder-coated aluminum die-cast, and the spots have a grooved outer surface.

Technical Details

The ceiling light has a power consumption of 40W and a total luminous flux of 3200lm. The COB LEDs offer a warm white light output and very good color rendering with a CRi of >90Ra and a color rendering index of 1A.

Practical Features

The TRACE GRID 1.0 is dimmable and already prepared for direct connection to 230V AC mains voltage, as the LED driver is integrated in the ceiling connection. The beam angle is 30° and the light has an IP protection rating of IP20.

Durable Light

The average lamp lifespan of the LED ceiling light is 50000 hours and it consumes an average of 40kWh per 1000 hours. The Wever & Ducré brand stands for high-quality craftsmanship, and the light weighs 1.5kg.

Versatile Applications

The TRACE GRID 1.0 is ideal for use as a ceiling light, design light, or light object. With its wide beam of light and dimming capability, it is versatile and can provide pleasant lighting in various rooms.

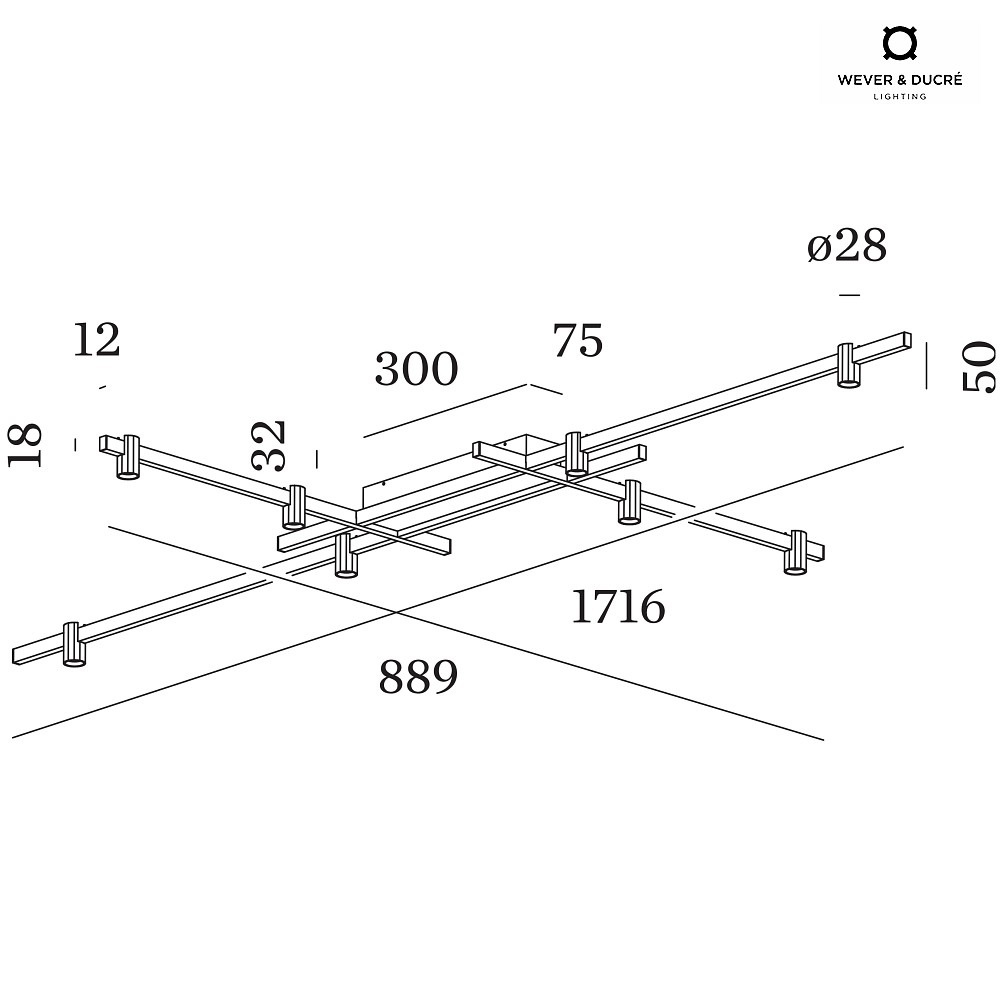

Dimension:
total-L∕ W∕ H: 171,6∕ 88,9∕ 8,2 cm
head-Ø∕ H: 2,8∕ 5 cm
outreach-W∕ H: 1,2∕ 1,8 cm
ceiling connection-L∕ W∕ H: 30∕ 7,5∕ 3,2 cm
Weight:
1,5 kg
Product type:
ceiling luminaire
luminary type:
Ceiling luminaire
Operating voltage:
220-240 V~
Dimmable:
yes
Dimmability:
trailing edge
Power frequency:
50-60 Hz
Power consumption:
40 W
Emitting angle:
30 °
Number of bulbs:
8
Voltage:
Clamp
Beam direction:
down
Light flux:
3200 lm
Colour temperature:
2700 K
Average life span of a bulb in hours:
50000 h
Colour rendering index:
>90 Ra
UGR:
< 10
Colour rendering index:
1A
Admissible burning position:
568
Protection class:
1
IP-protection class:
IP20
Accessories:
driver included
dimmer excluded
Energy efficiency category:
E
Energy consumption:
40 kWh/1.000 h
Purchasing quantity:
1 piece
Brand:
Wever & Ducré
Manufacturer:
Wever & Ducré
Manufacturer information
WEVER & DUCRÉ BV, Spinnerijstraat 99/21, 8500, Kortrijk, Belgium, office@weverducre.com, https://www.weverducre.com/
