ceiling luminaire TRACE GRID 2.0 up / down, direct / indirect IP20, mat, deep black dimmable

Wever & Ducré



Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

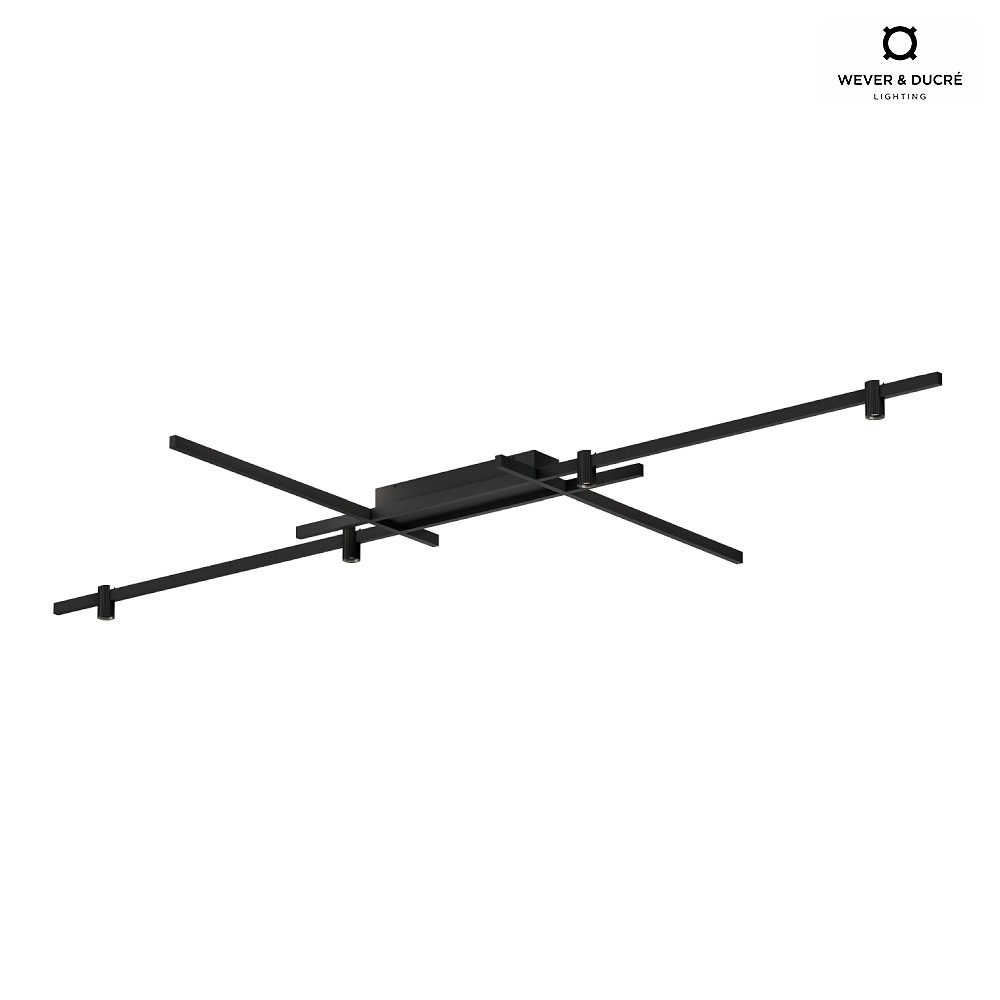

LED Ceiling Light TRACE GRID 1.0

The LED Ceiling Light TRACE GRID 1.0 from Wever & Ducré is a striking, minimalist ceiling light that is ideal for modern interiors. It features 4 spots shining directly downwards and indirect light sources in the arms, creating a pleasant light ambiance.

High-quality Manufacturing and Long-lasting LEDs

The ceiling light is made of matt powder-coated aluminum die-casting, ensuring a high-quality appearance and durability. The built-in COB LEDs provide warm white light output and excellent color rendering with a color rendering index of over 90Ra.

Glare-free Light and Dimmable

The spots of the TRACE GRID 1.0 ceiling light have a grooved outer surface that ensures glare-free light output. With a total luminous flux of 2280 lumens (4x 400 lumens down + 2x 340 lumens uplight), the light provides sufficient brightness. Additionally, it is dimmable to adjust the light intensity as needed.

Technical Details and Accessories

The LED ceiling light has a power consumption of 32W and an average lamp lifespan of 50000 hours. It has an integrated LED driver in the ceiling connection and can be directly connected to the 230V AC mains voltage. The beam angle is 30° and the protection class is 1.

Versatile Application Possibilities

Thanks to its wide-angle optics, the TRACE GRID 1.0 is suitable for use in both residential and commercial environments. With its modern design and high-quality craftsmanship, it is a real eye-catcher and provides pleasant lighting. Other items from the TRACE series are also available to create a cohesive lighting concept.

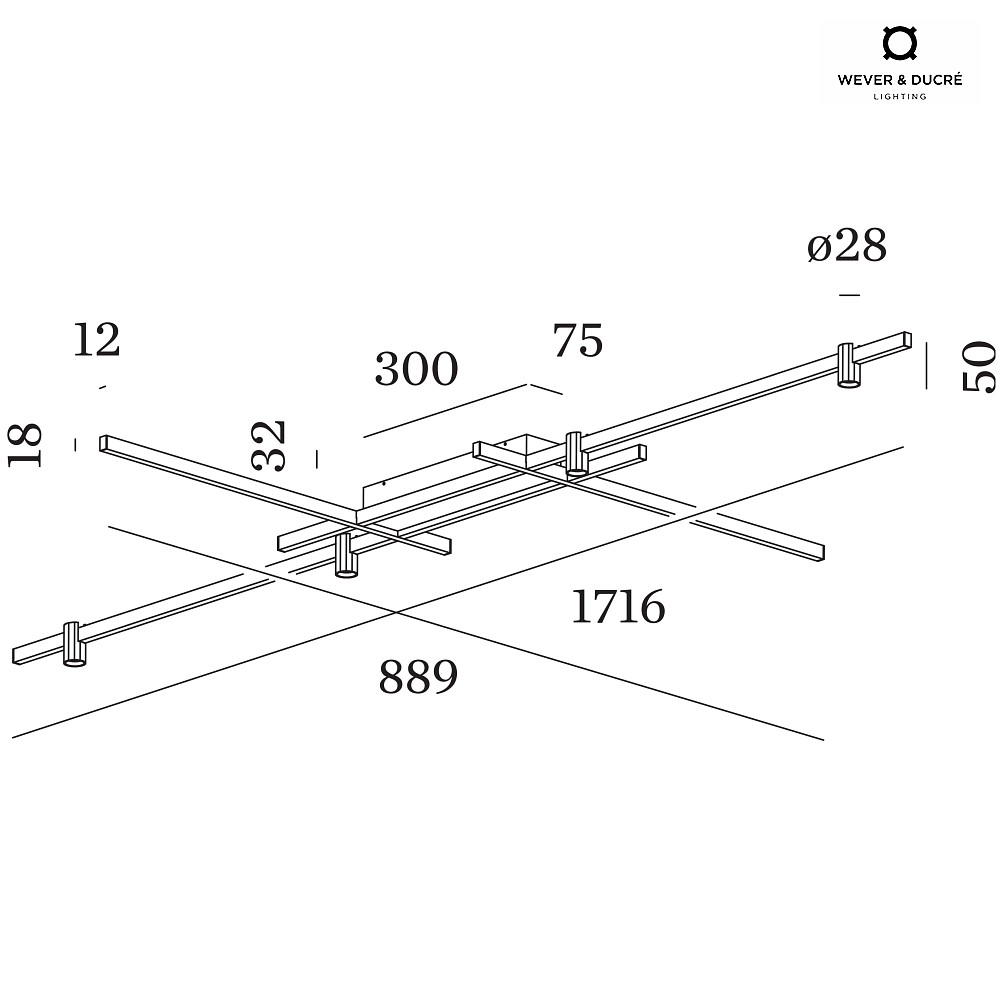

Dimension:
total-L∕ W∕ H: 171,6∕ 88,9∕ 8,2 cm
head-Ø∕ H: 2,8∕ 5 cm
outreach-W∕ H: 1,2∕ 1,8 cm
ceiling connection-L∕ W∕ H: 30∕ 7,5∕ 3,2 cm
Weight:
1,41 kg
Product type:
ceiling luminaire
luminary type:
Ceiling luminaire
Operating voltage:
220-240 V~
Dimmable:
yes
Dimmability:
trailing edge
Power frequency:
50-60 Hz
Power consumption:
32 W
Emitting angle:
30 °
Number of bulbs:
6
Voltage:
Clamp
Beam direction:
up / down
Light flux:
2280 lm
Colour temperature:
2700 K
Average life span of a bulb in hours:
50000 h
Colour rendering index:
>90 Ra
UGR:
< 10
Colour rendering index:
1A
Admissible burning position:
569
Protection class:
1
IP-protection class:
IP20
Accessories:
driver included
dimmer excluded
Energy efficiency category:
E
Energy consumption:
32 kWh/1.000 h
Purchasing quantity:
1 piece
Brand:
Wever & Ducré
Manufacturer:
Wever & Ducré
Manufacturer information
WEVER & DUCRÉ BV, Spinnerijstraat 99/21, 8500, Kortrijk, Belgium, office@weverducre.com, https://www.weverducre.com/
