ceiling luminaire UNI II DOUBLE TILT 2 flames, cardanic swivelling IP20, deep black dimmable

Deko-Light



Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

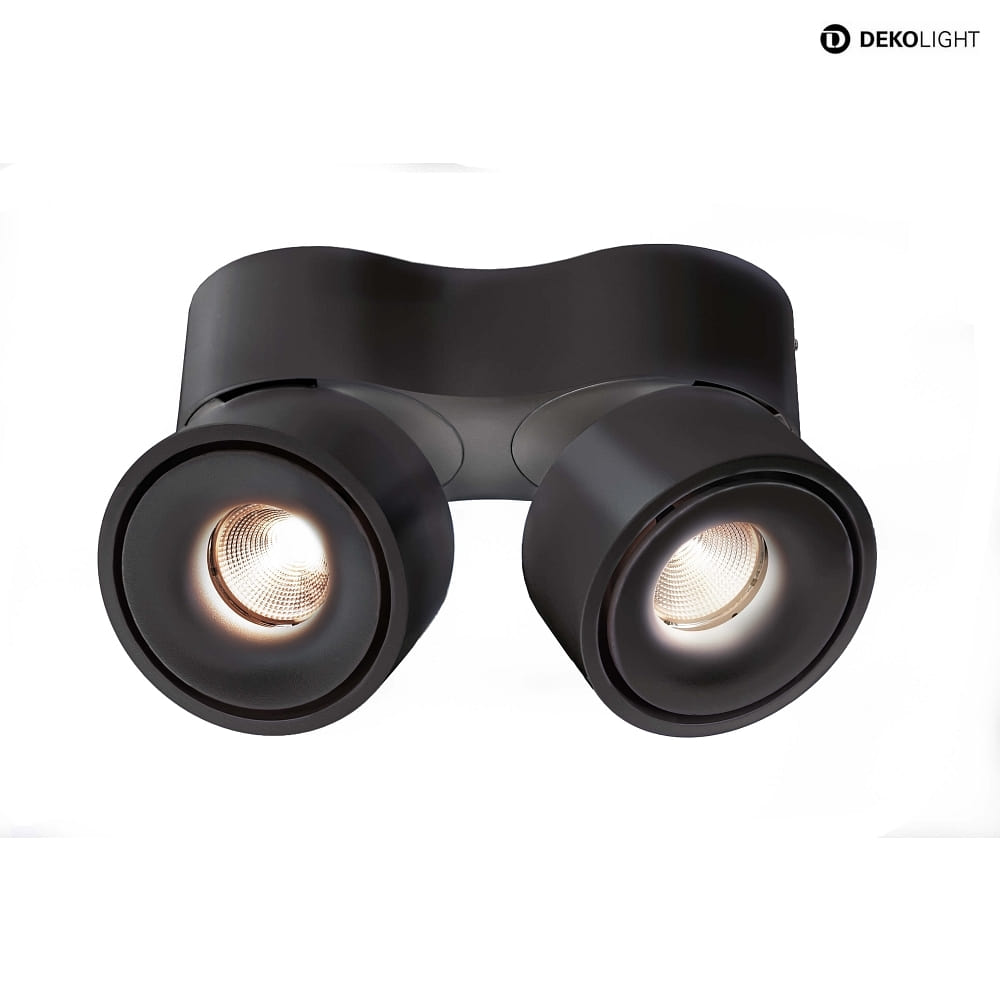

LED Ceiling Spotlight UNI II DOUBLE TILT

The LED Ceiling Spotlight UNI II DOUBLE TILT is a high-quality 2-flame ceiling spotlight that stands out for its gimbal construction. With a color rendering index of over 90Ra, it provides excellent color reproduction and creates a pleasant atmosphere. The ceiling spotlight is dimmable and has a luminous flux of 2010 lumens.

Technical Details

The LED Ceiling Spotlight UNI II DOUBLE TILT features 2 COB LED V8 ARRAY light sources with an energy consumption of 20 kWh/1,000 h. The power consumption is 20W and the luminous efficacy is 67.5lm/W. The spotlight has a beam angle of 36° and a color temperature of 3000K. The average lamp lifespan is 20,000 hours.

Design and Accessories

The ceiling spotlight has an elegant deep black color and is made of high-quality aluminum die-cast, plastic, and polycarbonate. It has a size of 21.2 x 10 x 10.3 cm and is suitable for surface mounting. Accessories include dowels, Allen key, screws, and a driver.

Application and Usage

The LED Ceiling Spotlight UNI II DOUBLE TILT is ideal for indoor use and can be used as a ceiling light, multi-flame light, spot light, surface-mounted light, spotlight, or object light. With a protection class of 1 and an IP protection rating of IP20, it is suitable for ceiling installations.

Additional Information

The adjustable ceiling spotlight can be used both as a downlight in a straight position and for rotationally symmetric light distribution. It is easy to connect to 230V AC mains voltage and provides warm white, dimmable light output. In addition, extensive accessories for customization are available, such as reflector rings, honeycomb filters, and various lenses.

Article number:
D-348175
Purchasing quantity:
1 piece
Brand:
Deko-Light
Energy efficiency category:
G
Product type:
ceiling luminaire
Energy consumption:
20 kWh/1.000 h
Manufacturer:
Deko-Light
Operating voltage:
220-240 V~
Dimmable:
no
yes
Dimmability:
trailing edge,leading edge
Lamp shape:
round
Power frequency:
50-60 Hz
Power consumption:
20 W
Emitting angle:
36 °
Bulbs in delivery:
yes
LED can be replaced :
no
Bulb type:
LED
Lamps/bulbs:
COB LED (V8ARRY)
Number of bulbs:
2
Voltage:
Clamp
Light colour:
warm white
Light emission:
direct
Beam direction:
swivelling
Light flux:
1350 lm
Light intensity:
2010
Light yield:
67,5 lm/W
Colour temperature:
3000 K
Average life span of a bulb in hours:
20000 h
Switching cycles:
15000
Colour rendering index:
>90 Ra
1A
Colour:
deep black
RAL color value:
9005
Glass color:
transparent
Material:
die-cast aluminium
plastic
polycarbonate (PC)
Turning range:
350 cm
Throughwiring (installation of multiple luminaires in a row) is possible:
no
Dimension:
L∕ W∕ H: 21,2∕ 10∕ 10,3 cm
spot-Ø: 10 cm
socket-L∕ W∕ H: 20∕ 2∕ 1,4 cm
Weight:
1,54 kg
Mounting:
surfaced mounting
Field of application:
ceiling
Protection class:
1
IP-protection class:
IP20
Product ENEC tested:
yes
Application area:
only suitable for indoor use
Additional information:
Light color adjustable via DIP switch before installation.
Accessories:
dowel incl
allen key incl
screws incl
driver incl
cover excl
diffuser excl
lens attachment excl
reflector excl
honeycomb excl
ambient temperature:
-5 ... +40 °C
