ceiling luminaire UNI II MINI DOUBLE TILT 2 flames, cardanic swivelling IP20, deep black dimmable

Deko-Light

Print product information sheet▶

question regarding the article

Print product information sheet▶

question regarding the article

CHF 169,96

excl. Shipping costs / excl. VAT
Recommended retail price: CHF 199.95

You save 15,0 %

Shipping time: 3-4 weeks

Product no.: D-348177
EAN: 4042943172617
In stock: 140

Alternative product variants:

LED ceiling luminaire UNI II MINI DOUBLE, 14W 3000K 980lm 33°, dimmable, white ceiling luminaire UNI II MINI DOUBLE TILT 2 flames, cardanic swivelling IP20, deep black dimmable

Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

To business registration

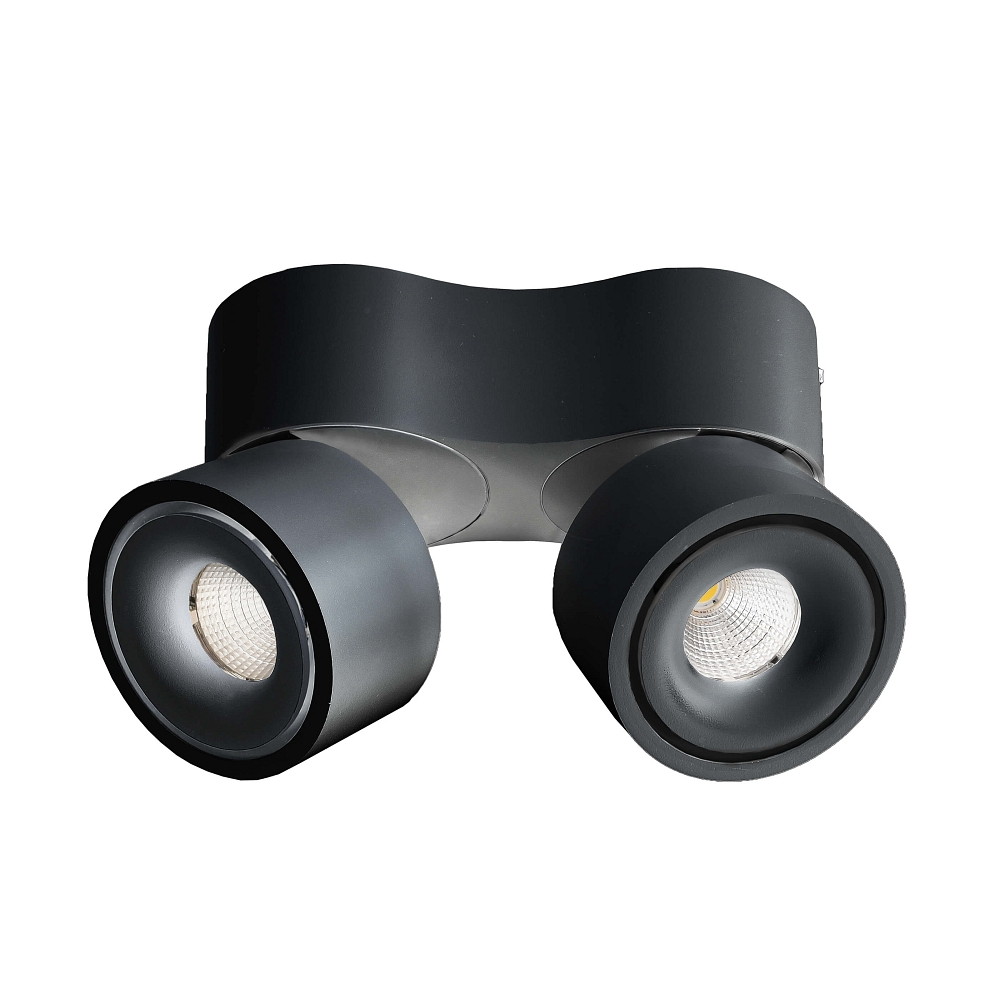

LED Ceiling Spotlight UNI II MINI DOUBLE TILT 15W

The LED Ceiling Spotlight UNI II MINI DOUBLE TILT 15W is a 2-flame ceiling light that provides a warm white light color with a color temperature of 3000K. With a luminous intensity of 2540cd and a luminous flux of 980lm, this spotlight provides bright and pleasant lighting in your indoor area.

Technical Details and Accessories

The ceiling spotlight features 2 COB LED V8 ARRAY light sources with a power consumption of 15W and an energy efficiency class of G. The color rendering index is >90Ra, ensuring very good color reproduction. Various accessories such as dowels, Allen key, screws, and a driver are included in the delivery.

Flexibility and Application

Thanks to the gimbal design and a swivel range of 90°, the spotlight can be flexibly adjusted to achieve the desired lighting. Installation is easy with a clamp connection, and the readiness for connection to 230V AC mains voltage allows for uncomplicated installation.

Further Information and Applications

The UNI II MINI DOUBLE TILT spotlight is ideal for use on indoor ceilings. With a weight of 0.798kg and dimensions of 16 x 7.5 x 9.1 cm, it offers a compact and modern solution for lighting various rooms.

Customization and Expansion Options

With extensive accessories such as reflector rings in different colors, honeycomb filters, and diffusion lenses, you can customize the spotlight according to your personal preferences. Additional spotlights from the UNI II series are also available to create a uniform lighting solution.

Colour:

deep black

Glass color:

transparent

RAL color value:

9005

Dimension:

dimensions (in vertical position)-L∕ W∕ H: 16∕ 7,5∕ 9,1 cm
base-L∕ W∕ H: 16∕ 7,5∕ 4,4 cm

Material:

die-cast aluminium
plastic
polycarbonate (PC)

Weight:

0,798 kg

Product type:

ceiling luminaire

Lamp shape:

round

Bulbs in delivery:

yes

Application area:

only suitable for indoor use

Field of application:

ceiling

Operating voltage:

220-240 V~

Dimmable:

no
yes

Dimmability:

trailing edge,leading edge

Power frequency:

50-60 Hz

Power consumption:

15 W

Emitting angle:

36 °

Lamps/bulbs:

COB LED (V8ARRY)

Number of bulbs:

Voltage:

Clamp

Light colour:

warm white

Light emission:

direct

Beam direction:

swivelling

Light flux:

980 lm

Light intensity:

2540 cd

Light yield:

65,3 lm/W

Colour temperature:

3000 K

Average life span of a bulb in hours:

20000 h

Switching cycles:

15000

Colour rendering index:

>90 Ra
1A

Turning range:

90 °

Plug type:

clamping connection

Mounting:

surfaced mounting

Protection class:

IP-protection class:

IP20

Product ENEC tested:

yes

Additional information:

Light color adjustable via DIP switch before installation.

Accessories:

dowel included
allen key included
screws included
driver included
cover excluded
diffuser excluded
lens attachment excluded
Reflektor excluded
honeycomb excluded

ambient temperature:

-5 ... +40 °C

Energy efficiency category:

Energy consumption:

15 kWh/1.000 h

Article number:

D-348177

Purchasing quantity:

1 piece

Brand:

Deko-Light

Manufacturer:
