ceiling luminaire UNI II MINI TILT 1 flame, cardanic swivelling IP20, deep black dimmable

Deko-Light



Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

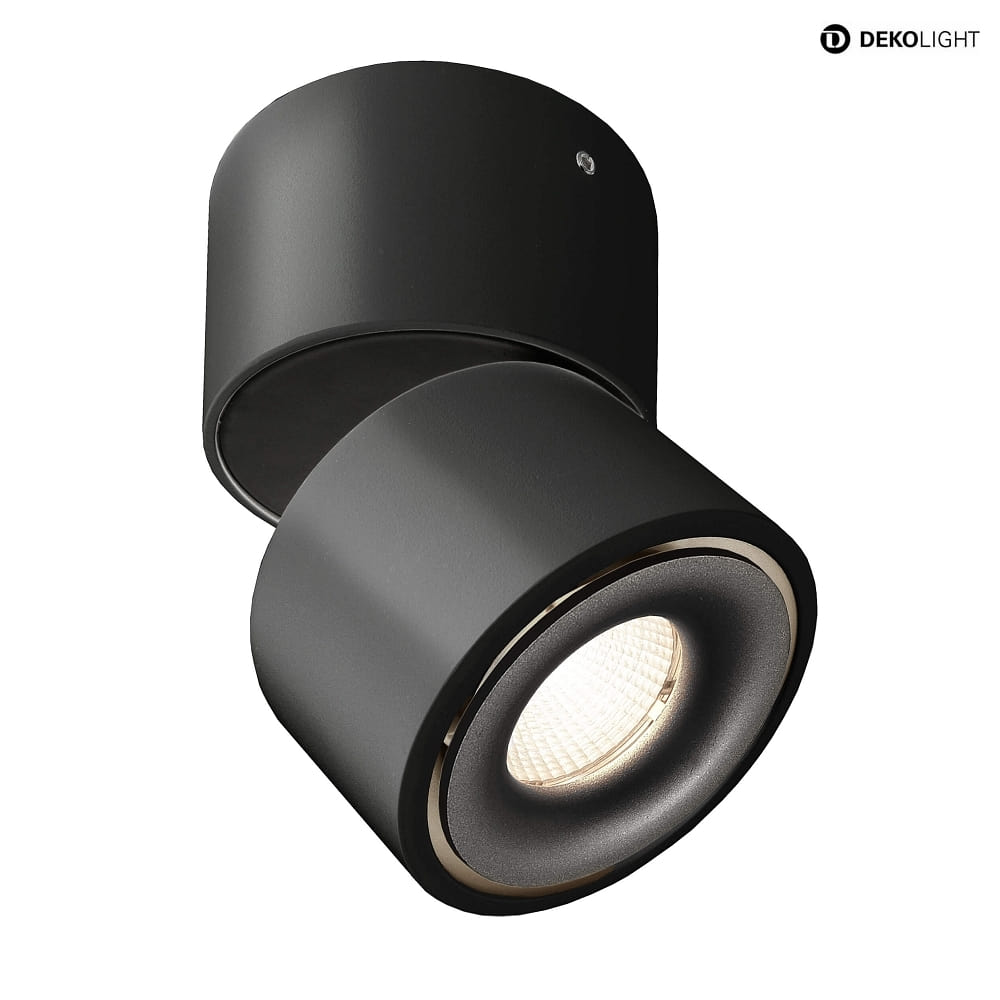

LED Ceiling Spotlight UNI II MINI TILT 8W

The LED Ceiling Spotlight UNI II MINI TILT 8W is an adjustable ceiling-mounted spotlight for indoor use. With a power consumption of 8W and a luminous intensity of 1560cd, it offers a warm white, dimmable light output with a very good color rendering index of CRi >90Ra. Its rotationally symmetrical light distribution makes it ideal for illuminating objects.

Technical Details

The ceiling spotlight features a COB LED V8 ARRAY as the light source and has a color rendering index of >90Ra. With a beam angle of 36°, it provides a direct light distribution. The spotlight is rotatable by 350° and tiltable by 90°, allowing for optimal alignment of the light beam. It is directly connected to the 230V AC mains voltage.

Accessories and Installation

The LED Ceiling Spotlight comes with various accessories, including dowels, hex keys, screws, and drivers. Optional accessories for customization include reflector rings in different colors, honeycomb filters, diffusion lenses, and heat sink covers. The installation is surface-mounted, but the spotlight can also be used as a downlight.

Design and Material

The ceiling spotlight is finished in deep black and is made of high-quality aluminum die-cast, plastic, and polycarbonate (PC). With a diameter of 9.1 cm and a height of 7.5 cm in a vertical position, as well as a base with a diameter of 7.5 cm and a height of 4.4 cm, the spotlight blends harmoniously into any room concept.

Application Area

The LED Ceiling Spotlight UNI II MINI TILT 8W is suitable for ceiling mounting indoors and is ideal for illuminating objects. With its energy efficiency class G and an average lamp life of 20000 hours, it offers a durable and energy-efficient lighting solution. A versatile spotlight that impresses with its modern design and technical features.

Colour:
deep black
Glass color:
transparent
RAL color value:
9005
Dimension:
dimensions (in vertical position)-Ø∕ H: 9,1∕ 7,5 cm
base-Ø∕ H: 7,5∕ 4,4 cm
Material:
die-cast aluminium
plastic
polycarbonate (PC)
Weight:
0,426 kg
Product type:
ceiling luminaire
Lamp shape:
round
Bulbs in delivery:
yes
Application area:
only suitable for indoor use
Field of application:
ceiling
Operating voltage:
220-240 V~
Dimmable:
no
yes
Dimmability:
trailing edge,leading edge
Power frequency:
50-60 Hz
Emitting angle:
36 °
Lamps/bulbs:
COB LED (V8ARRY)
Number of bulbs:
1
Voltage:
Clamp
Light colour:
warm white
Light emission:
direct
Beam direction:
swivelling
Light flux:
600 lm
Light intensity:
1560 cd
Light yield:
75 lm/W
Colour temperature:
3000 K
Average life span of a bulb in hours:
20000 h
Switching cycles:
15000
Colour rendering index:
>90 Ra
1A
Turning range:
90 °
Plug type:
clamping connection
Mounting:
surfaced mounting
Protection class:
1
IP-protection class:
IP20
Product ENEC tested:
yes
Additional information:
Light color adjustable via DIP switch before installation.
Accessories:
dowel included
allen key included
screws included
driver included
cover excluded
diffuser excluded
lens attachment excluded
Reflektor excluded
honeycomb excluded
ambient temperature:
-5 ... +40 °C
Energy efficiency category:
G
Article number:
D-348178
Purchasing quantity:
1 piece
Brand:
Deko-Light
Manufacturer:
Deko-Light
