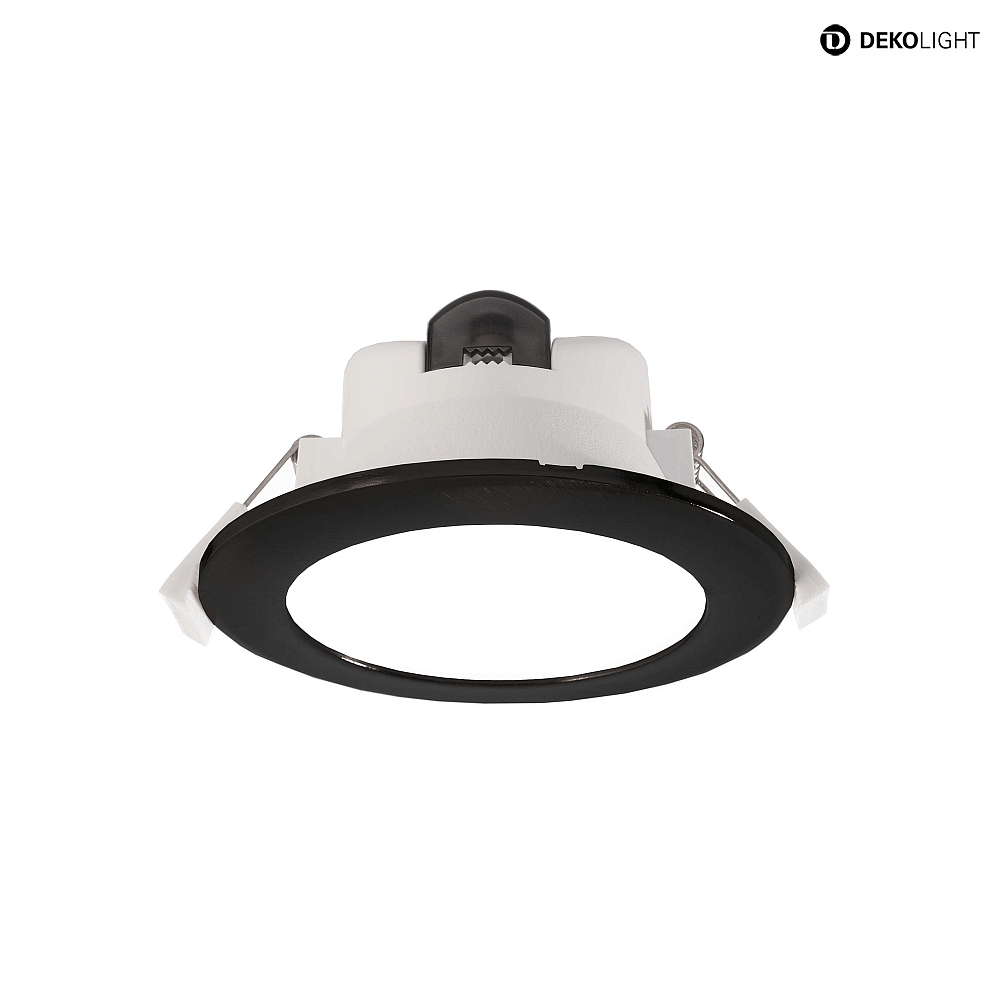

ceiling recessed luminaire ACRUX 120 CCT Switch, with decorative ring IP20, black, white dimmable

LED Recessed Ceiling Light ACRUX 120, Ø 14.5cm, 14.5W 3000/4000/6000K (CCT) 1370lm 90°, dimmable

The LED recessed ceiling light ACRUX 120 is a flexible surface-mounted light with symmetrical light distribution. It features a dimmable LED driver that is already integrated and can be directly connected to the 230V AC mains voltage. The traffic white plastic housing (RAL 9016) provides an attractive appearance in any room.

Technical Details and Accessories

The ceiling light has a diameter of 14.5 cm and a recessed depth of 6.3 cm. With a luminous flux of 1370 lm and a light intensity of 505 cd, it offers bright illumination. The color temperature is adjustable in warm white, neutral white, and cool white variants. The color rendering index is >80Ra, ensuring good color reproduction. In addition, the light color can be adjusted at the DIP switch during installation or conversion.

Energy Efficiency and Application

With a power consumption of 14.5W and an energy consumption of 15kWh/1,000 h, the ACRUX 120 belongs to energy efficiency class F. It is ideal for ceiling installation and is suitable for indoor use only. The installation is done by recessed mounting, and the luminaire has protection class 2 and IP protection class IP20.

Accessories and Scope of Delivery

The ceiling recessed light ACRUX 120 comes with a removable black decorative ring. Additional accessories include a light color switch, a driver, and a dimmer. The product is available in black and white colors and offers a timeless look with its round design.

Further Information

The LED recessed ceiling light ACRUX 120 has an average lamp lifespan of 30,000 hours and can undergo up to 15,000 switching cycles. The operating temperature range is between -5 and +40°C. With a power factor of 0.9 and a voltage constant function, the luminaire is efficient and durable. Due to its flexible size and power levels, it can be used in a variety of settings and adapts to different room concepts.
