ceiling recessed luminaire ACRUX 145 CCT Switch, with decorative ring IP20, black, white dimmable

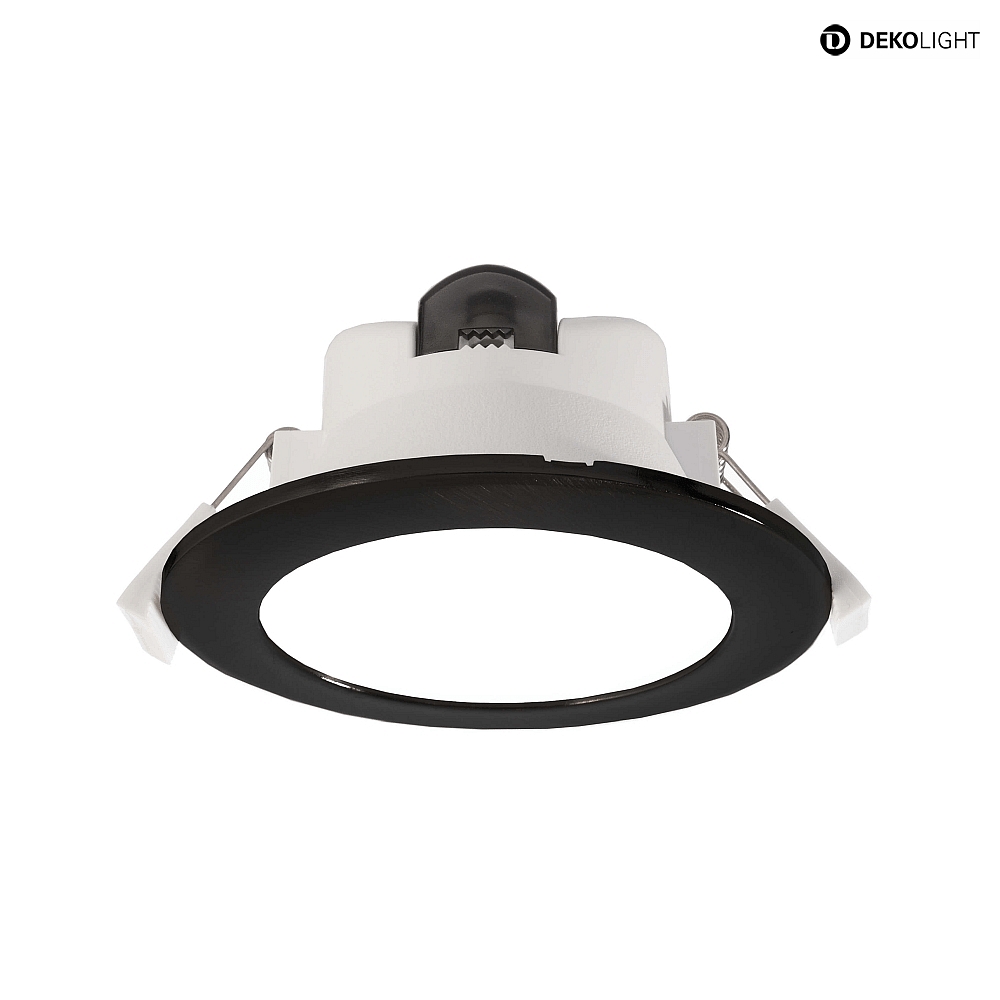

LED Recessed Ceiling Light ACRUX 145, Ø17.4cm, 16W 3000/4000/6000K (CCT) 1570lm 90°, dimmable

The LED Recessed Ceiling Light ACRUX 145 is a flexible recessed surface light with symmetrical light distribution. It features a dimmable LED driver that is already integrated and can be directly connected to the 230V AC mains voltage. The traffic white plastic housing (RAL 9016) comes with a removable black decorative ring and is available in various sizes and power levels.

Technical Data

The luminaire has a diameter of 17.4 cm and a depth of 6.3 cm. Installation is done through recessed mounting and the installation opening is 14.5 cm in diameter. With a weight of only 0.3 kg, the ACRUX 145 Recessed Ceiling Light is light and easy to install. It has an IP20 protection rating and can therefore be safely used indoors.

Light Color and Brightness

The LED Recessed Ceiling Light ACRUX 145 offers the option to choose the light color between warm white, neutral white, and cool white in stages. With a light intensity of 570cd and a luminous flux of 1570lm, it provides bright and uniform illumination of the room. The color rendering index is over 80Ra and the color rendering level is 1B.

Energy Efficiency and Lifespan

The power consumption of the LED Recessed Ceiling Light ACRUX 145 is 16W and the energy consumption is 17kWh/1,000 h. The average lamp lifespan is 30,000 hours and it has a power factor of 0.9. With a start time of less than 0.5 seconds and a time to reach 60% of luminous flux also of 0.5 seconds, the luminaire is ready for use immediately.

Accessories and Additional Information

The package of the LED Recessed Ceiling Light ACRUX 145 includes the light source, the driver, the decorative ring, and the light color switch. Additionally, you can choose between a dimmer and a switch as accessories. The luminaire offers various dimming options such as leading edge, trailing edge, and CCT dip. It is a high-quality product with a variety of technical details that ensures optimal lighting in your space.
