ceiling recessed luminaire ACRUX 90 CCT Switch, with decorative ring IP20, black, white dimmable

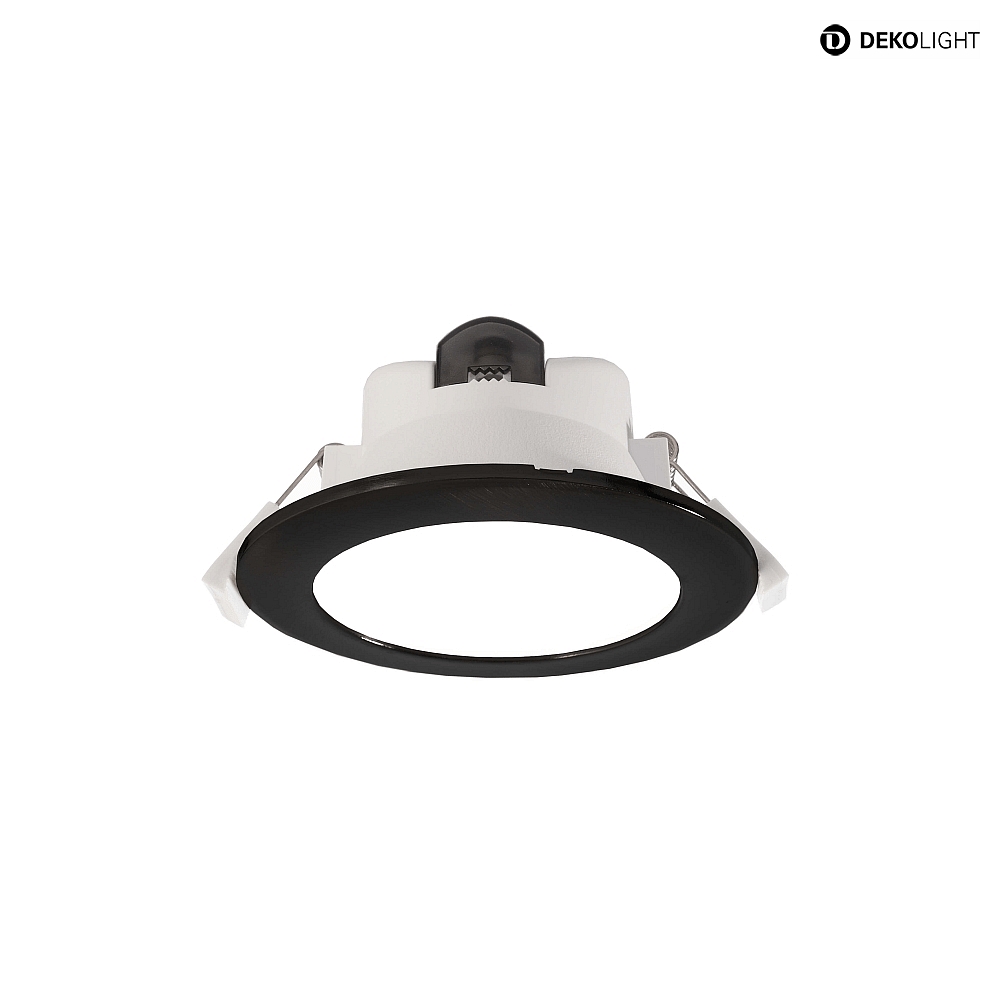

LED Recessed Ceiling Light ACRUX 90

The LED recessed ceiling light ACRUX 90 from Deko-Light is a flexible recessed surface light with symmetrical light distribution. With a diameter of 11.3 cm and a power of 9W, it offers a luminous intensity of 348cd and a luminous flux of 760lm. The color temperature is adjustable in warm white, neutral white, and cool white to create the desired atmosphere.

Technical Details

The recessed ceiling light has a beam angle of 90° and a installation depth of 5.5 cm. It has an integrated dimmable LED driver and can be directly connected to a 230V AC mains voltage. The traffic white plastic housing (RAL 9016) comes with a removable black decorative ring and has an IP rating of IP20.

Energy Efficiency and Color Rendering

With an energy efficiency class of F and an energy consumption of 8kWh/1,000 h, the LED recessed ceiling light ACRUX 90 is an energy-saving lighting solution. The color rendering index is over 80Ra and the color rendering level is 1B. The luminaire has an average lamp life of 30,000 hours and is available in various sizes and power levels.

Accessories and Application

Various accessories are available for individual customization, such as a light color switch, a decorative ring, and a driver. The LED recessed ceiling light ACRUX 90 is suitable for mounting in the ceiling and is exclusively for indoor use. It is ideal for use in living spaces, offices, or other indoor areas where flexible and energy-efficient lighting is needed.

Additional Information and Application

Thanks to the option to adjust the light color at the DIP switch during installation and retrofitting, the LED recessed ceiling light ACRUX 90 offers a versatile lighting solution. With a switching cycles of 15,000 and a plug type of clamp connection, the luminaire is easy to install and durable. The radiation behavior is in the range of 487-583 nm and the start-up time at 60% luminous flux is 0.5 seconds.
