ceiling recessed luminaire DEEP ADJUST 2.0 - LED 2 flames, cardanic swivelling, with wire springs IP20, mat

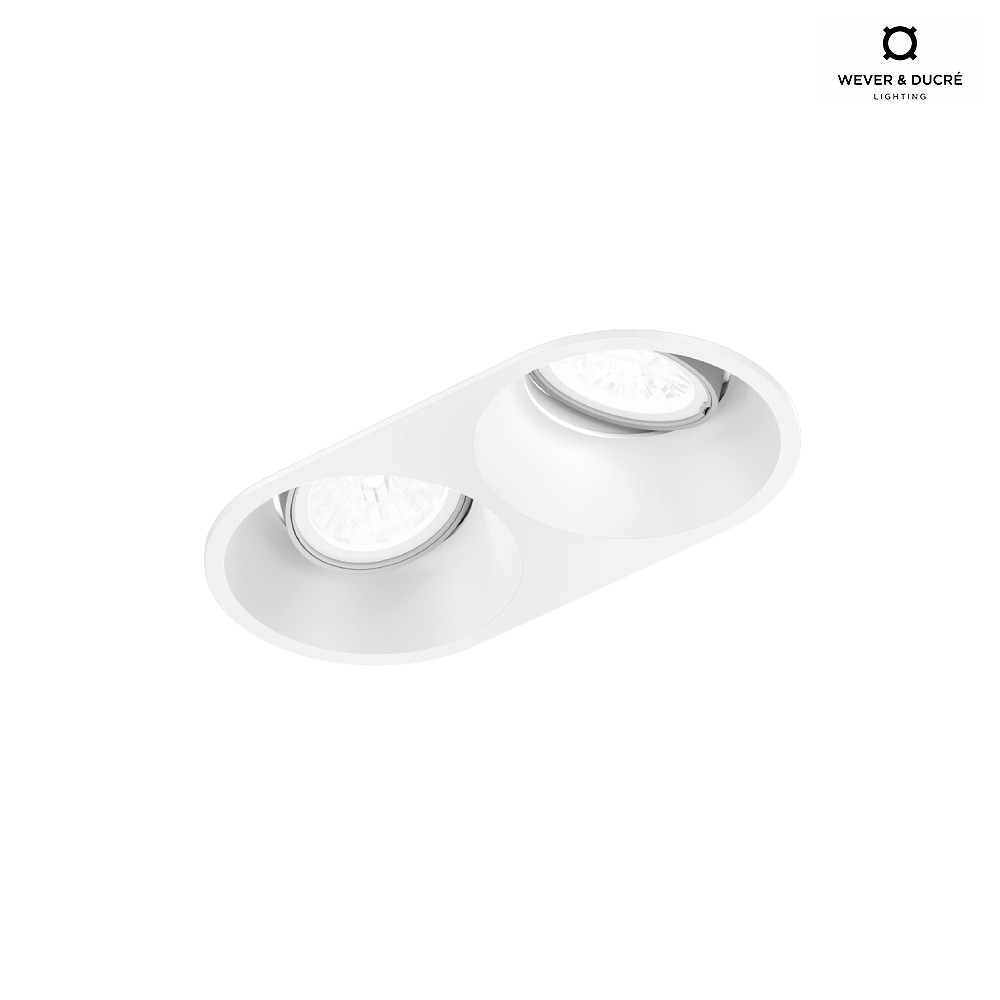

LED Recessed Spotlight DEEP ADJUST 2.0

The LED Recessed Spotlight DEEP ADJUST 2.0 is a 2-lamp spotlight with an operating voltage of 17V and a power consumption of 12/18W. With a color rendering index of over 90Ra, it offers very good color reproduction and a high luminous flux of 1430/1550lm. The average lamp lifespan is an impressive 55000 hours.

Technical Details

The recessed spotlight has a beam angle of 56° and an energy efficiency class of D. It is gimbal-mounted and features clip springs for easy installation in cavity ceilings. The accessories include clip springs, LED module, system plug, and plug. A dimmer and driver are not included.

Design and Function

This oval LED recessed spotlight is ideal for dry indoor areas. The separately swiveling and tilting light source inserts allow for optimal alignment of the light cones. The dimmable light output (depending on the operating device) allows for individual adjustment of the lighting.

Installation and Application

Thanks to the rear wire springs / clip springs, installation is tool-free and time-saving. The recessed spotlight is suitable for ceilings with a thickness of 0.4cm to 2.3cm. The variable cutout diameter allows for adaptation to different sizes. The color consistency is extremely low at 2 SDCM, ensuring uniform light color.

Additional Information

The LED Recessed Spotlight DEEP ADJUST 2.0 offers an extremely wide beam optics (Wide Flood) and belongs to the DEEP / DEEPER series. With an IP protection rating of IP20 and a protection class of 3, it is suitable for indoor use. The color temperature is 3000K and the color rendering level is 1A.
