ceiling recessed luminaire DEEP ADJUST PETIT 1.0 cardanic swivelling, with wire springs IP20, mat, deep black dimmable

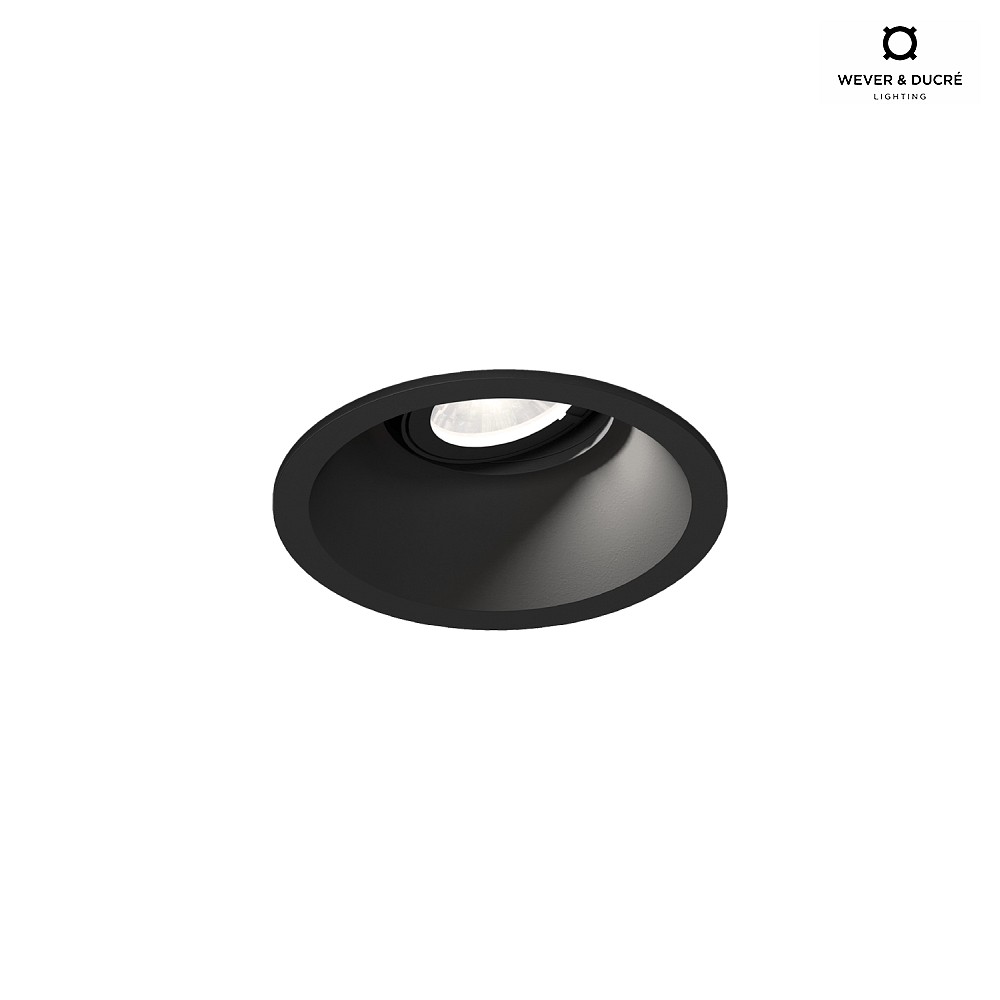

Recessed spotlight DEEP ADJUST PETIT 1.0

The recessed spotlight DEEP ADJUST PETIT 1.0 from Wever & Ducré is a compact, round LED ceiling recessed spotlight for dry indoor areas. It features optimal alignment of the light cone through a rotatable and swiveling lamp insert.

Technical details

The recessed spotlight has a beam angle of 56° and a power consumption of 6W. It offers a color rendering index of >90Ra and a color temperature of 2700K. The luminous flux is 540lm and the average lamp lifespan is 50000 hours.

Installation and accessories

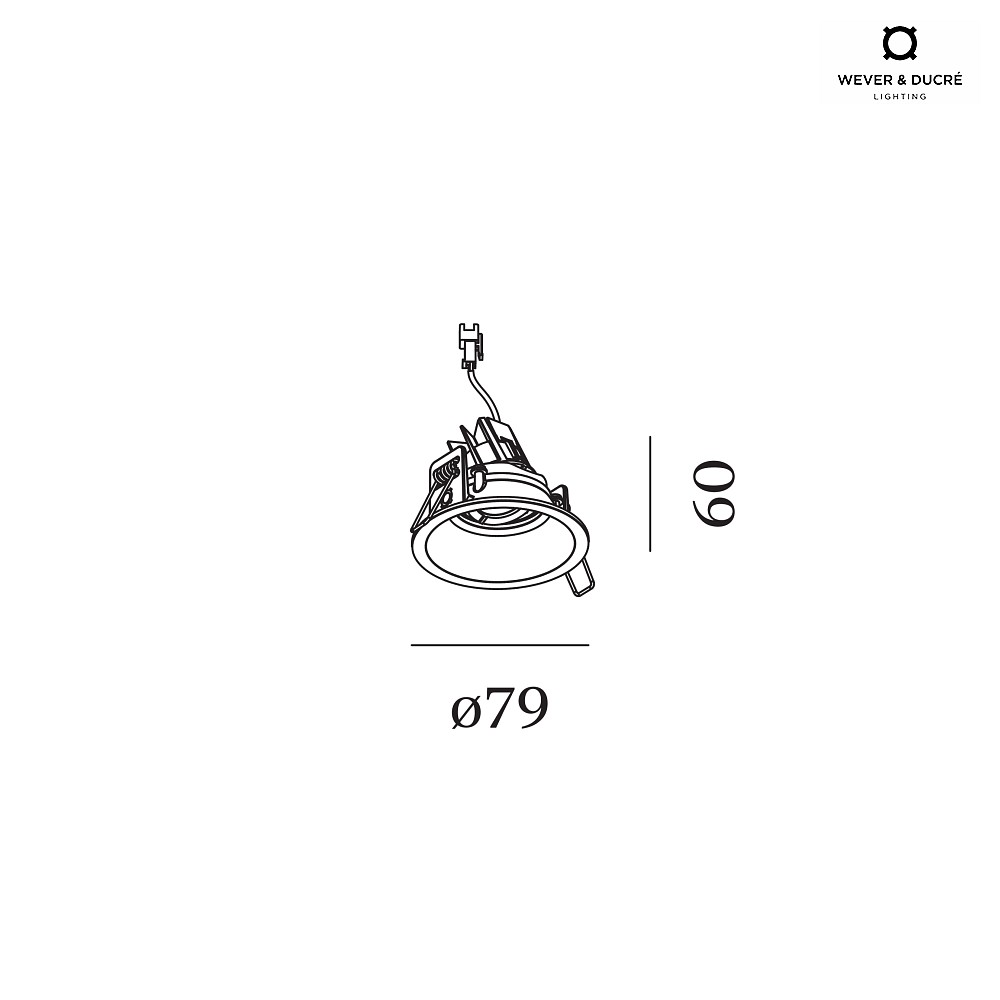

The installation of the recessed spotlight is quick and tool-free thanks to the rear wire springs/clip springs for cavity ceilings. The ceiling cutout should be between 6.8cm and 7.0cm and the suitable ceiling thickness is 0.4cm to 2.3cm. Accessories such as clip springs, dimmers, and drivers are not included.

Energy efficiency and protection

The recessed spotlight has energy efficiency class E and color rendering stage 1A. It is classified in protection class 3 and has an IP protection rating of IP20. The operating voltage is 17V= and the energy consumption is 6kWh per 1000 hours.

More information

The recessed spotlight offers dimmable light output (depending on the selected operating device) and very good color rendering. The photobiological risk class is RG3 and the color consistency (MacAdam Ellipse) is 2 SDCM. The optics are extremely wide beam (Wide Flood) and other versions of the DEEP / DEEPER series are available.
