ceiling recessed luminaire DEEP ADJUST PETIT 1.0 with leaf springs, cardanic swivelling IP20, bronze dimmable

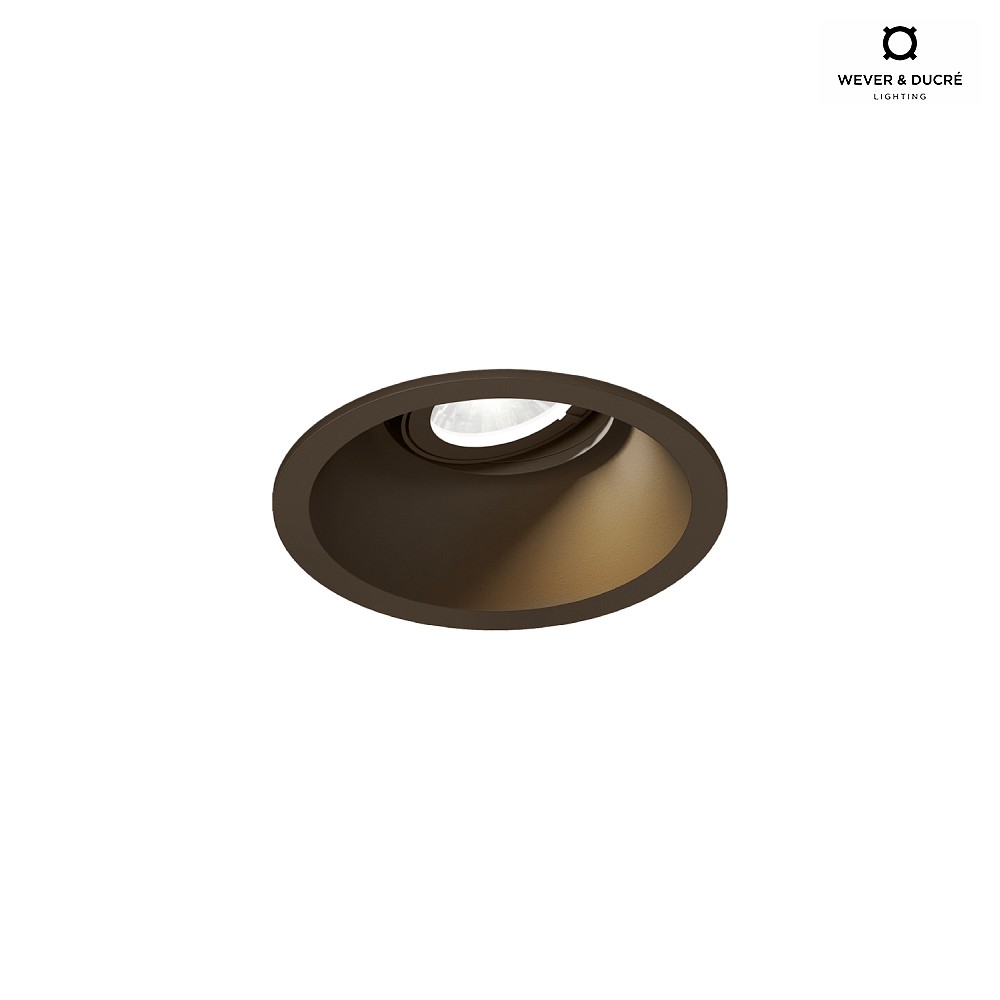

LED recessed spotlight DEEP ADJUST PETIT 1.0

The LED recessed spotlight DEEP ADJUST PETIT 1.0 from Wever & Ducré is a gimbal-mounted spotlight with leaf springs for easy installation. With an energy efficiency class of E and a power consumption of 6W, it offers a high light output of 570lm at a color temperature of 3000K and a color rendering index of over 90Ra.

Technical data

The beam angle of the spotlight is 56° and the average lamp lifespan is an impressive 50,000 hours. The LED recessed spotlight is suitable for dry indoor areas and has a mains connection via system connectors at an operating voltage of 17V=.

Accessories and features

Included in the delivery are leaf springs, an LED module, and a plug. A dimmer and driver are not included in the delivery. The recessed spotlight is dimmable, depending on the selected operating device. The optimal alignment of the light beam is ensured by the rotatable and swiveling lamp insert.

Installation and application

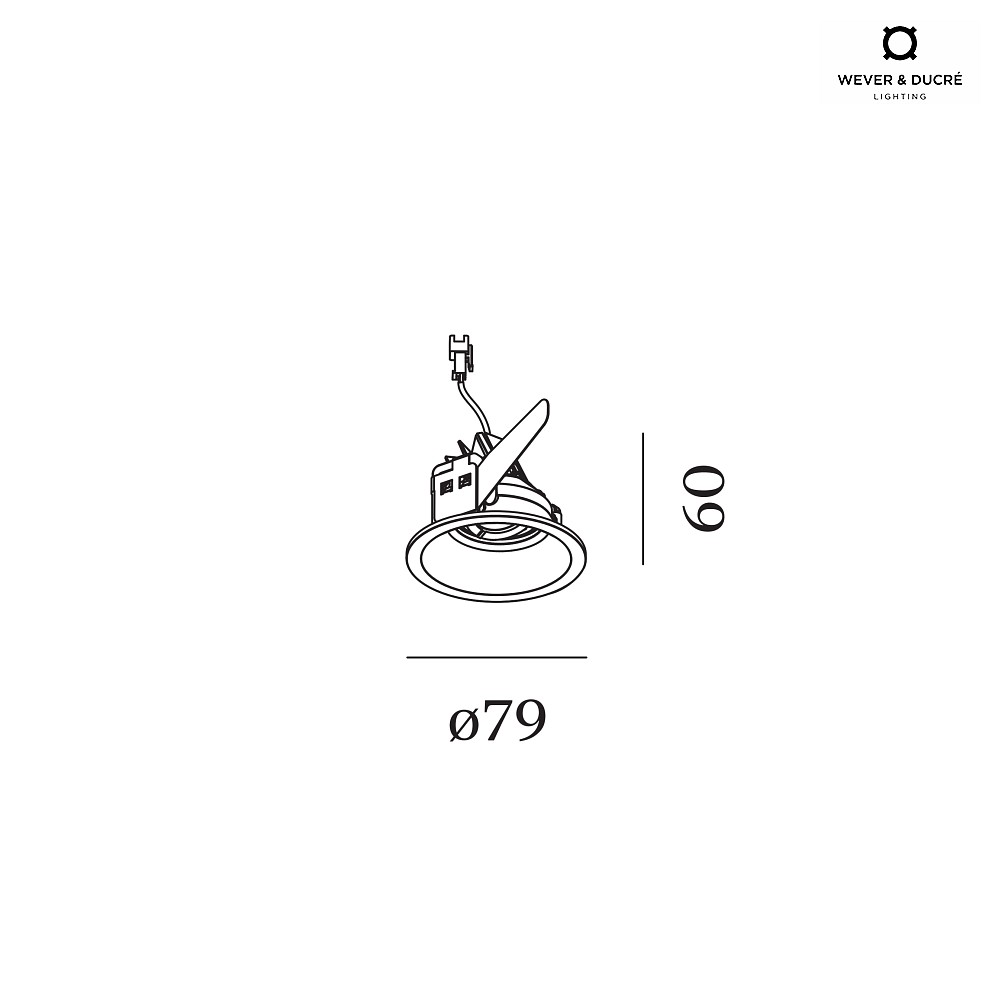

The spotlight is installed with the leaf springs, which snap into place either inside the borehole for thick ceiling thickness or above the mounting surface for thin cavity ceilings. The suitable ceiling cutout is 6.9cm to 7.1cm and the suitable ceiling thickness is 0.8cm. The spotlight is suitable for recessed lights, spotlights, accent lights, and object lights.

Additional information

The LED recessed spotlight DEEP ADJUST PETIT 1.0 offers an extremely wide beam spread (Wide Flood) and very good color rendering. The color consistency is 2 SDCM, which ensures an extremely low tolerance of deviations in light color when using multiple identical luminaires. Further versions of the DEEP / DEEPER series are also available.
