ceiling recessed luminaire DEEP ADJUST PETIT 1.0 with leaf springs, cardanic swivelling IP20, gold dimmable

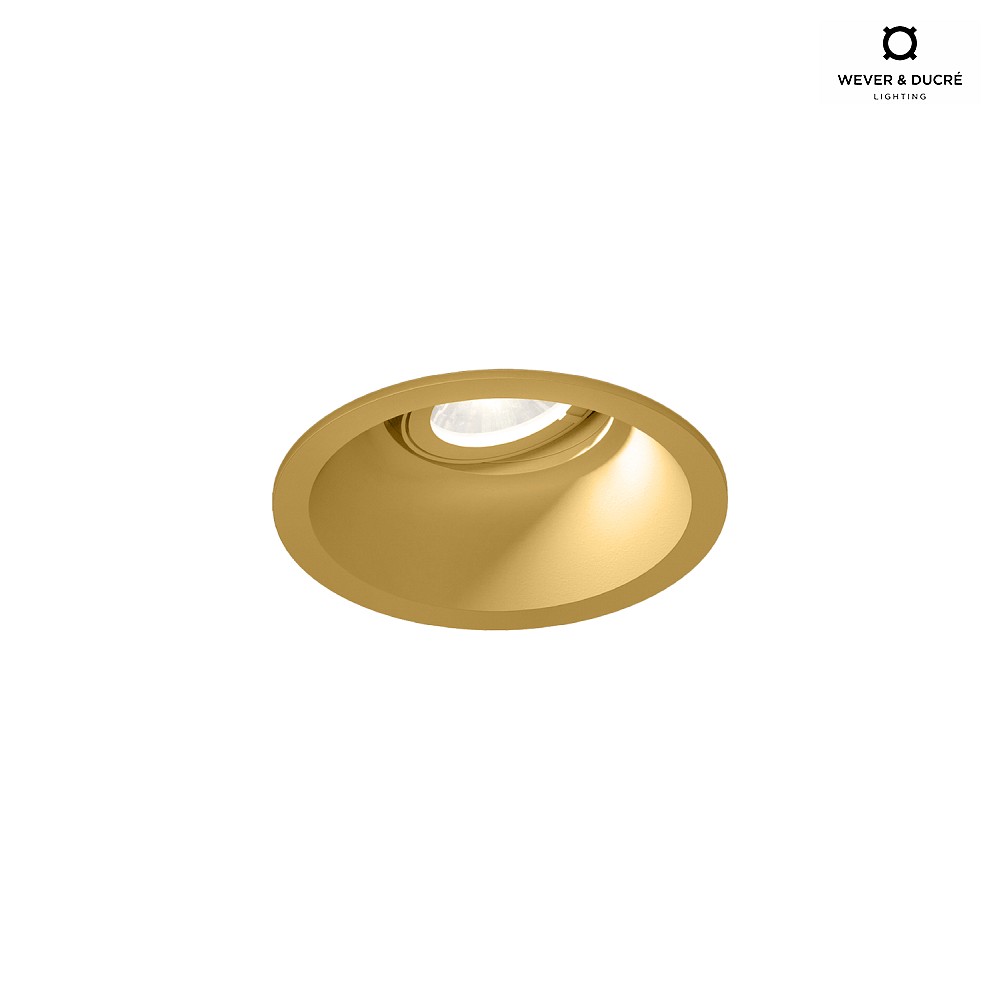

LED Recessed Spotlight DEEP ADJUST PETIT 1.0

The LED Recessed Spotlight DEEP ADJUST PETIT 1.0 by Wever & Ducré is a gimbal spotlight with leaf springs for optimal alignment of the light cone. With a color rendering index of >90Ra and a power consumption of 6W, this spotlight offers very good color rendering and a luminous flux of 540lm.

Technical Details

The energy efficiency class E and the IP protection class IP20 make this recessed spotlight ideal for use in dry indoor areas. With a beam angle of 56° and an energy consumption of 6kWh/1,000 h, this spotlight is both energy efficient and powerful.

Accessories and Installation

The scope of delivery includes leaf springs, an LED module, and a plug. A dimmer and a driver are not included. The installation is done using the leaf springs, which are either mounted inside the borehole or above the mounting surface, depending on the ceiling thickness.

Additional Information

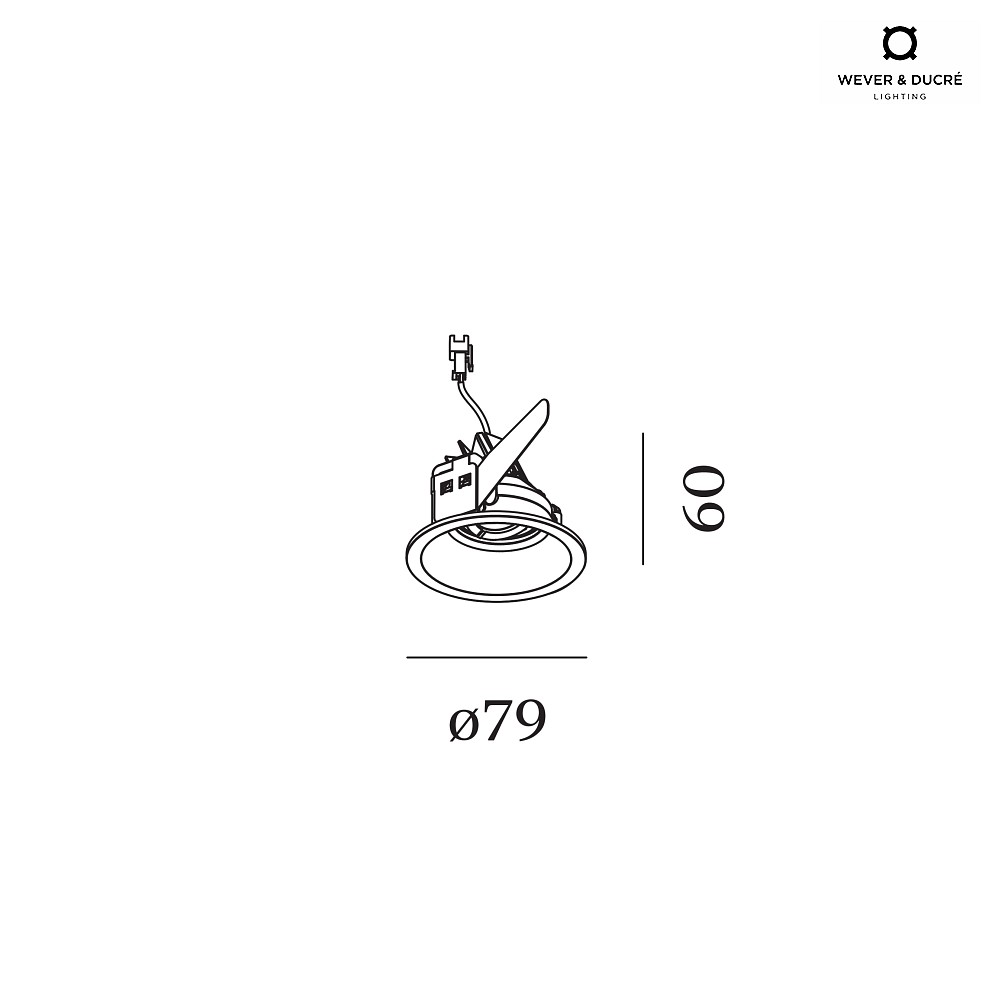

The LED Recessed Spotlight DEEP ADJUST PETIT 1.0 has an average lamp lifespan of 50,000 hours and is dimmable, depending on the selected operating device. The optimal ceiling cutout size is 6.9cm to 7.1cm, and the suitable ceiling thickness is 0.8cm. The color consistency (MacAdam Ellipse) is 2 SDCM for extremely low tolerance of deviations in light color.

Application

Thanks to its extremely wide beam optics (Wide Flood), the LED Recessed Spotlight DEEP ADJUST PETIT 1.0 is ideal as accent lighting or object lighting. Other versions of the DEEP / DEEPER series are also available to create different lighting scenarios.
