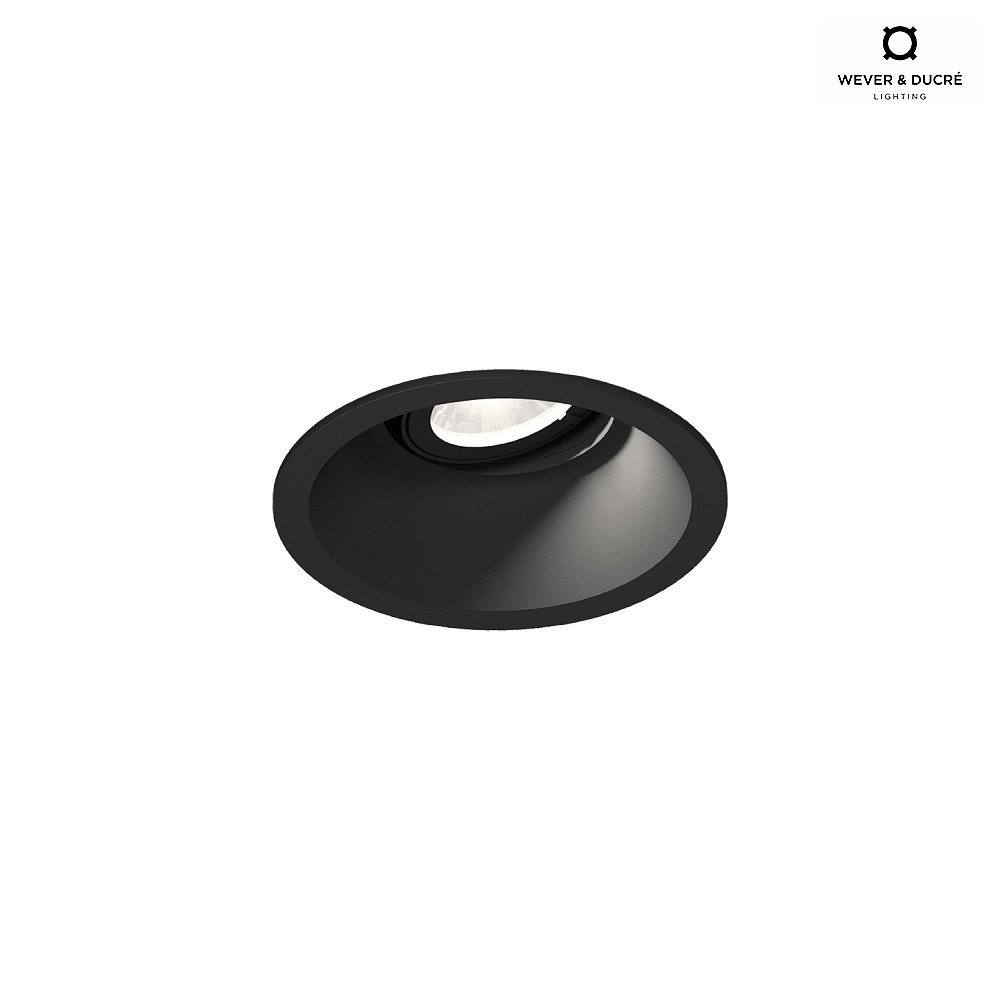

ceiling recessed luminaire DEEP ADJUST PETIT 1.0 with leaf springs, cardanic swivelling IP20, mat, deep black dimmable

Description of the LED recessed spotlight DEEP ADJUST PETIT 1.0

The LED recessed spotlight DEEP ADJUST PETIT 1.0 from Wever & Ducré is a compact and round ceiling recessed spotlight suitable for dry indoor areas. It offers optimal alignment of the light cone through a rotatable and swiveling lamp insert.

Technical data of the LED recessed spotlight

This recessed spotlight has a power consumption of 6W and a luminous flux of 540lm. With a color rendering index of over 90Ra and a color temperature of 2700K, it offers very good color rendering. The average lamp lifespan is 50000 hours.

Accessories and installation

The scope of delivery includes leaf springs, an LED module, a system connector, and a mounting frame. However, a dimmer and a driver are not included in the delivery. Installation is done using the leaf springs, which can be mounted either inside the borehole or above the mounting surface.

Energy efficiency and protection class

The LED recessed spotlight has energy efficiency class E and an energy consumption of 6kWh/1000h. It is classified in protection class 3 and has an IP protection rating of IP20. The burning position is 798 and the operating voltage is 17V=.

Additional information and compatibility

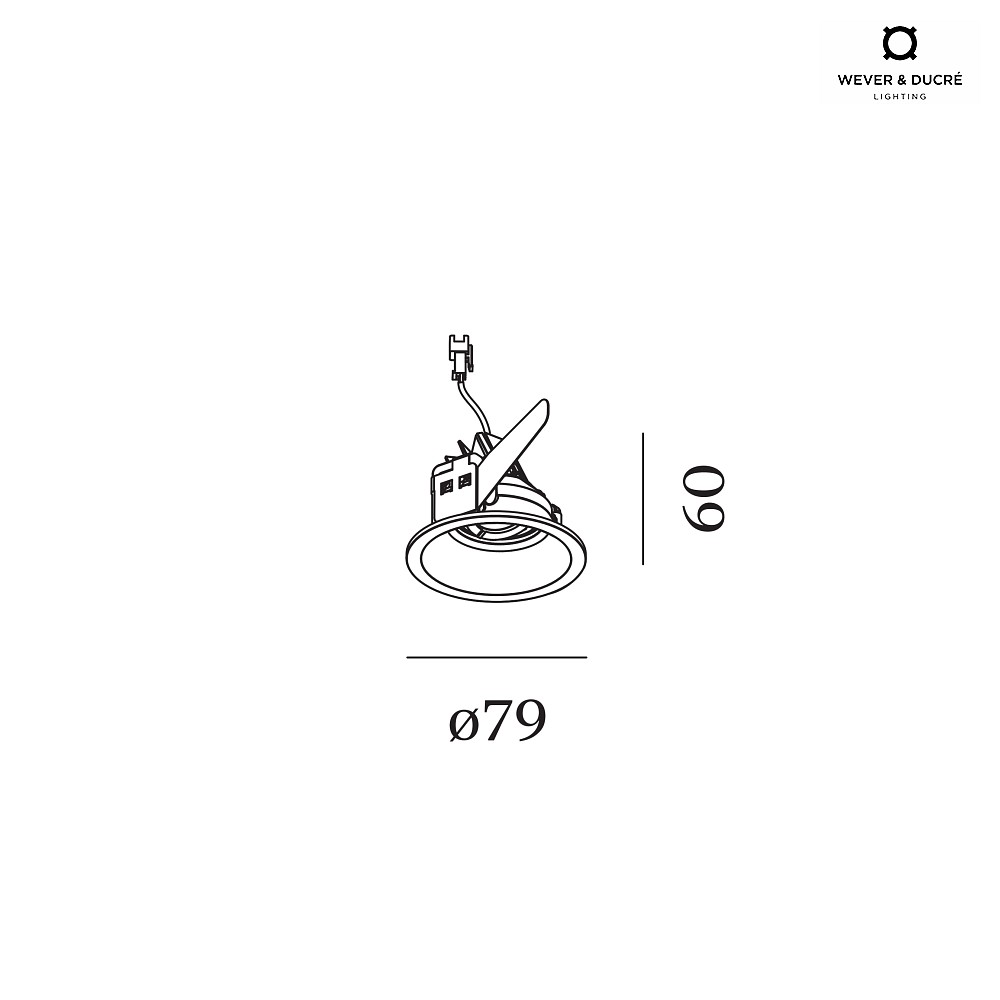

The LED recessed spotlight DEEP ADJUST PETIT 1.0 has a photobiological risk class of RG3 and a color consistency of 2 SDCM. It is suitable for ceiling cutouts from 6.9cm to 7.1cm and for ceiling thicknesses above 0.8cm. The optics are extremely narrow beaming (spot) and additional versions of the DEEP / DEEPER series are available.
