ceiling recessed luminaire DEEP ADJUST PETIT 1.0 with leaf springs, cardanic swivelling IP20, mat, deep black dimmable

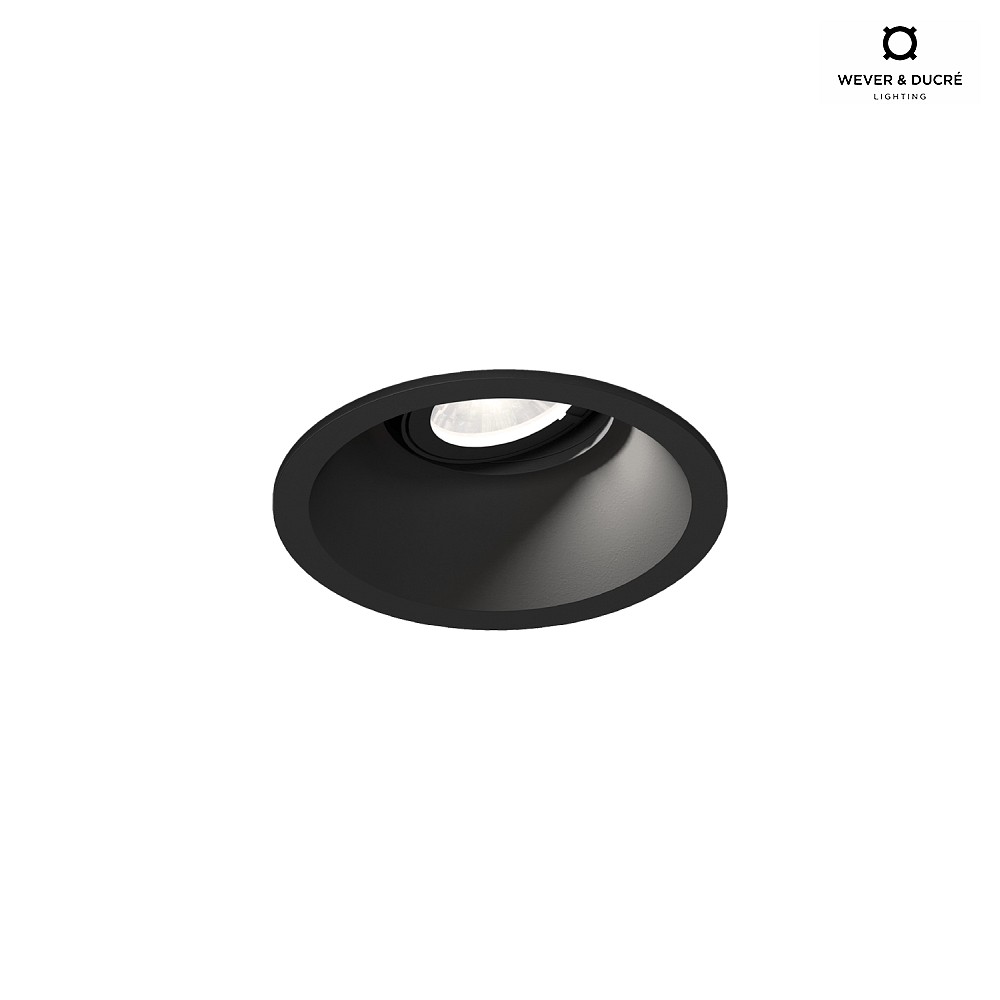

LED Recessed Spotlight DEEP ADJUST PETIT 1.0

The LED Recessed Spotlight DEEP ADJUST PETIT 1.0 from Wever & Ducré is a gimbal spotlight equipped with leaf springs. It has an energy efficiency class of E and a power consumption of 6W. With a color rendering index of over 90Ra, it offers very good color rendering.

Technical Details

The spotlight has a beam angle of 56° and a color temperature of 3000K. The luminous flux is 570lm and the average lamp lifespan is 50000 hours. The weight of the spotlight is only 0.05kg and the operating voltage is 17V=.

Accessories and Features

The LED Recessed Spotlight comes with leaf springs, an LED module, and a system connector. The spotlight can be operated with a dimmer (dimmer not included) and the beam angle is 828. It is ideal for use as a recessed ceiling light for dry indoor areas.

Installation and Application

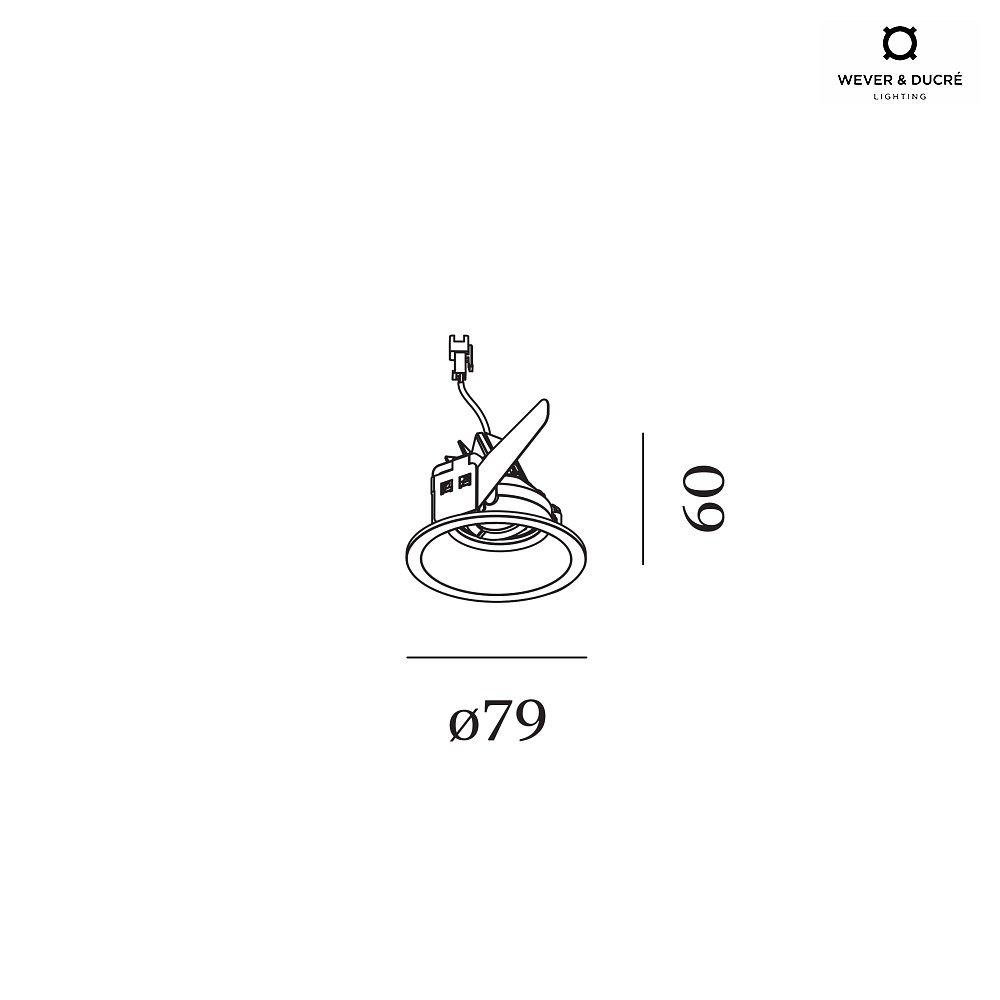

The DEEP ADJUST PETIT 1.0 can be optimally aligned as the light source is rotatable and swivelable. Installation is done with the included leaf springs, which either snap into the borehole or above the mounting surface for thin cavity ceilings. The suitable ceiling cut-out is 6.9cm to 7.1cm and the suitable ceiling thickness is 0.8cm.

Additional Information

The LED Recessed Spotlight DEEP ADJUST PETIT 1.0 has an IP protection rating of IP20 and a protection class of 3. It offers an extremely wide beam spread (Wide Flood) and a very low tolerance of deviations in light color (MacAdam Ellipse: 2 SDCM). Other versions of the DEEP / DEEPER series are also available.
