ceiling recessed luminaire DEEP ADJUST PETIT 1.0 with leaf springs, cardanic swivelling IP20, mat, traffic white dimmable

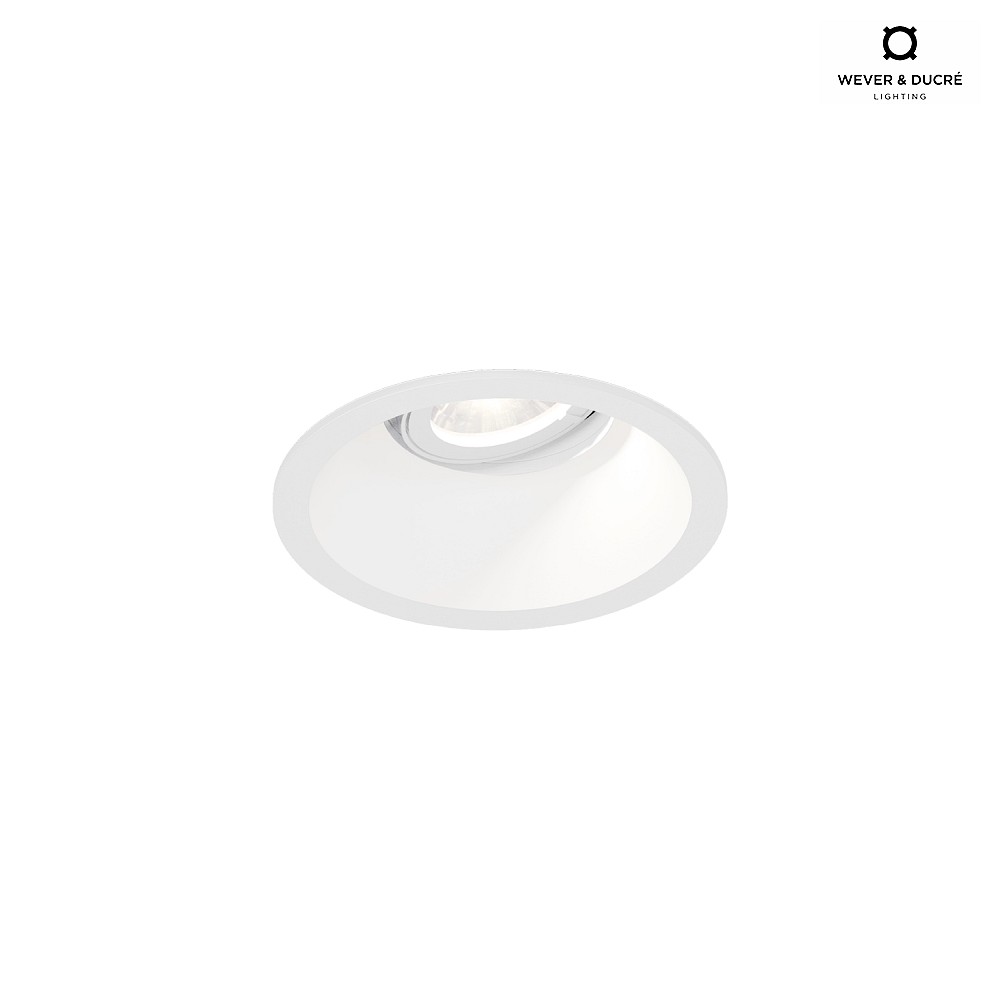

LED Recessed Spotlight DEEP ADJUST PETIT 1.0

The LED Recessed Spotlight DEEP ADJUST PETIT 1.0 from Wever & Ducré is a gimbal spotlight with leaf springs and a beam angle of 15°. With an energy efficiency class E and a color rendering index of over 90Ra, this spotlight offers high light quality and a power consumption of 6W.

Technical Data

The color temperature is 2700K and the luminous flux is 540lm. The average lamp lifespan is 50000 hours, ensuring a long service life. The LED Recessed Spotlight has an operating voltage of 17V and weighs only 0.05kg. It can be used as a recessed light, spotlight, accent light, and object light.

Accessories and Equipment

Included in the delivery are leaf springs, an LED module, and a system connector. A dimmer and driver are not included in the delivery. The LED Recessed Spotlight DEEP ADJUST PETIT 1.0 is dimmable, depending on the selected operating device.

Installation and Application

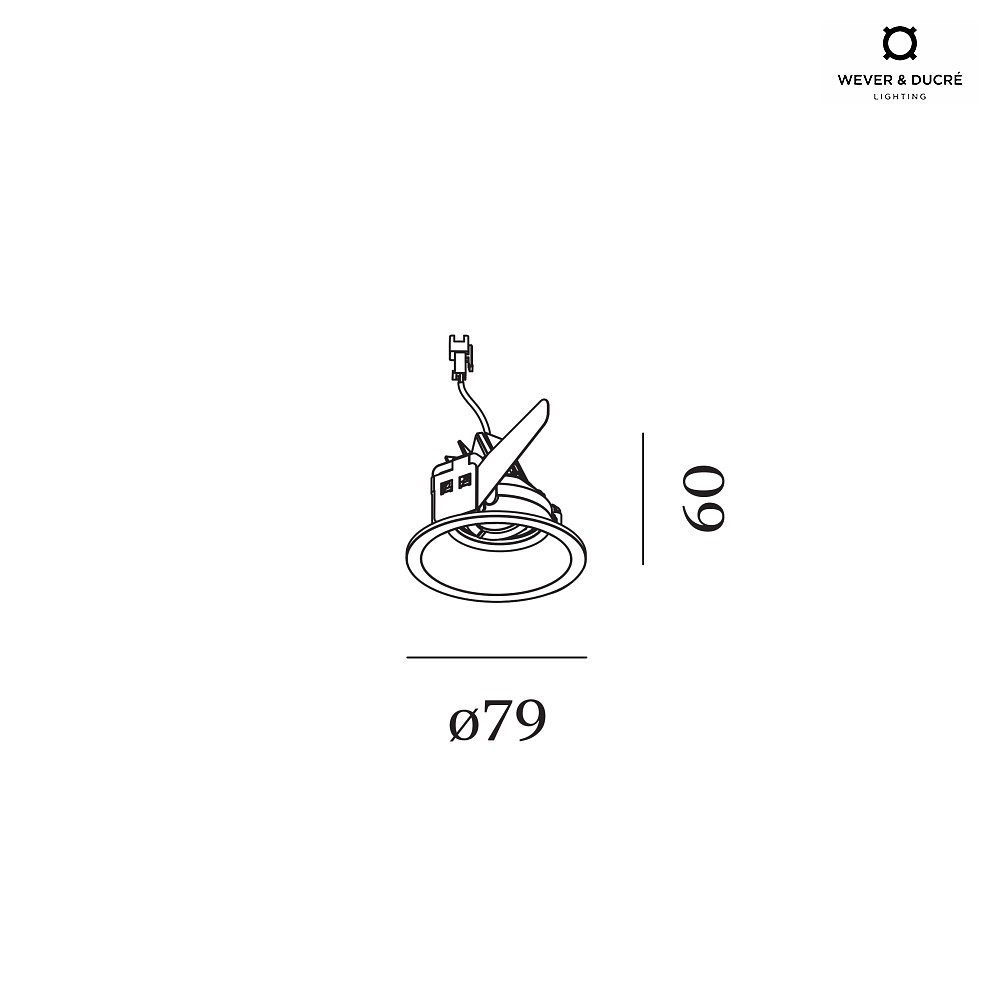

Thanks to the leaf springs, the spotlight can be easily snapped into the borehole, both in thick ceiling thickness and thin cavity ceilings. The ceiling cut-out should be between 6.9cm and 7.1cm, and the suitable ceiling thickness is more than 0.8cm. The LED Recessed Spotlight is suitable for dry indoor areas.

Further Information

The DEEP ADJUST PETIT 1.0 offers an extremely narrow beam optic (spot) and a color consistency of 2 SDCM, guaranteeing an extremely low tolerance of deviations in light color when using multiple identical luminaires. Other versions of the DEEP / DEEPER series are also available.
