ceiling recessed luminaire DEEP ADJUST PETIT 1.0 with leaf springs, cardanic swivelling IP20, mat, traffic white dimmable

Wever & Ducré



Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

LED recessed spotlight DEEP ADJUST PETIT 1.0

The LED recessed spotlight DEEP ADJUST PETIT 1.0 from Wever & Ducré is a gimbal spotlight that is ideal for dry indoor areas. With a beam angle of 15° and a power consumption of 6W, it offers optimal alignment of the light cone for targeted illumination.

Technical data

The LED recessed spotlight has an energy consumption of 6kWh/1,000h and a color temperature of 3000K. With a color rendering index of >90Ra and a luminous flux of 570lm, it provides very good color rendering and bright illumination. The average lamp lifespan is 50,000 hours.

Accessories and installation

The recessed spotlight comes with leaf springs, an LED module, and a system connector. A dimmer and driver are not included in the accessories. Installation is done using the leaf springs, which are snapped into place either inside the borehole or above the mounting surface, depending on the ceiling thickness.

Design and size

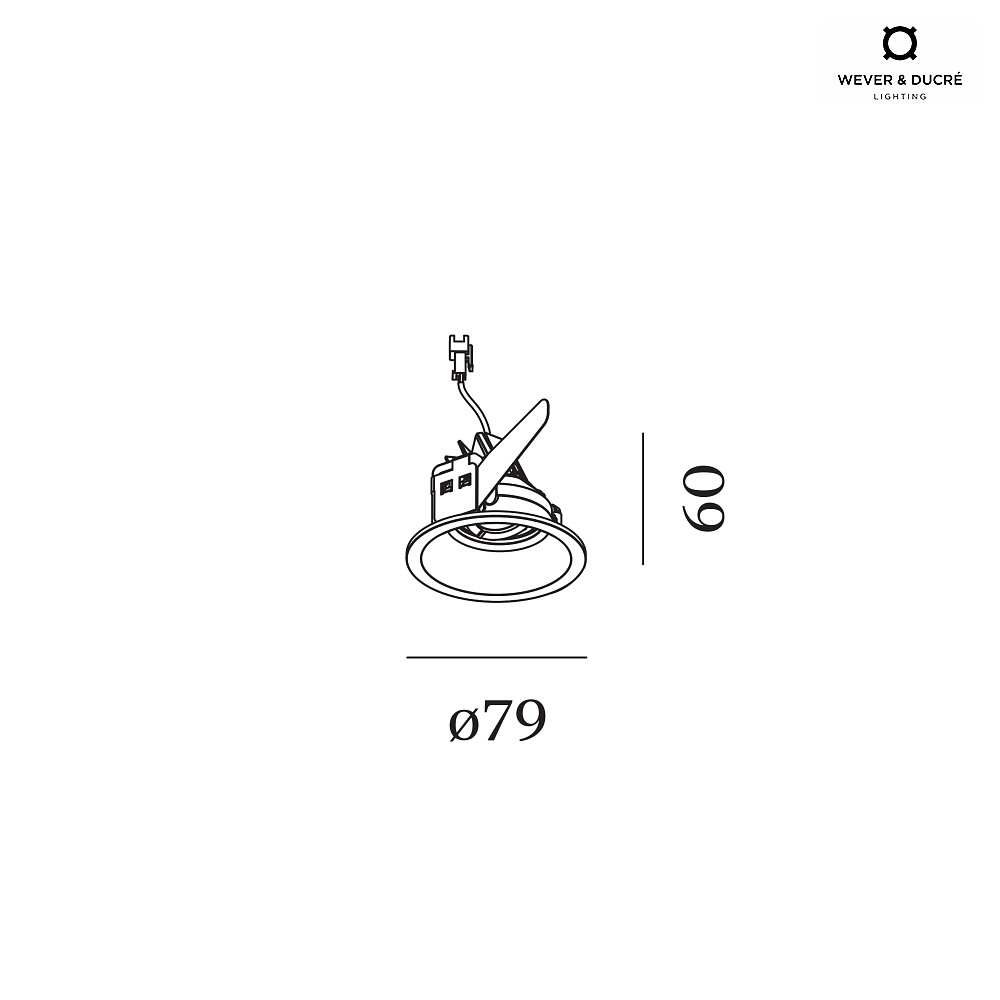

The compact and round LED ceiling recessed spotlight stands out for its modern design. With dimensions of 7.9 cm in diameter and 6 cm in height in a straight position, and an installation frame of 2 cm, it is suitable for discreet installation in the ceiling. The ceiling cutout should be between 6.9 cm and 7.1 cm, with a ceiling thickness of over 0.8 cm.

Additional information

The LED recessed spotlight DEEP ADJUST PETIT 1.0 has an IP protection rating of IP20 and a protection class of 3. It offers dimmable light output, depending on the selected operating device. With a photobiological risk class RG3 and a color consistency of 2 SDCM, it provides safe and consistent lighting. Other versions of the DEEP / DEEPER series are also available.

Dimension:
dimensions in straight position-Ø∕ H: 7,9∕ 6 cm
mounting frame-H: 2 cm
Weight:
0,05 kg
Product type:
ceiling recessed luminaire
Dimmable:
yes
Dimmability:
depending on the control gear
Power consumption:
6 W
Emitting angle:
15 °
Voltage:
system connector
Beam direction:
swivelling
Light flux:
570 lm
Colour temperature:
3000 K
Average life span of a bulb in hours:
50000 h
Colour rendering index:
>90 Ra
1A
Admissible burning position:
807
Protection class:
3
IP-protection class:
IP20
Accessories:
leaf springs included
LED module included
plug included
dimmer excluded
driver excluded
Energy efficiency category:
E
Energy consumption:
6 kWh/1.000 h
Purchasing quantity:
1 piece
Brand:
Wever & Ducré
Manufacturer:
Wever & Ducré
Manufacturer information
WEVER & DUCRÉ BV, Spinnerijstraat 99/21, 8500, Kortrijk, Belgium, office@weverducre.com, https://www.weverducre.com/
