ceiling recessed luminaire DEEP ADJUST TRIMLESS 1.0 flush, cardanic swivelling, with wire springs IP20, gold dimmable

LED Built-in Spotlight DEEP ADJUST TRIMLESS 1.0

The LED Built-in Spotlight DEEP ADJUST TRIMLESS 1.0 is a high-quality product from the brand Wever & Ducré. With a beam angle of 15° and a color temperature of 3000K, it provides pleasant lighting in your space. With a color rendering index of over 90Ra, it guarantees excellent color reproduction, while the energy consumption is at 9kWh/1,000 h.

Technical Details and Accessories

The built-in spotlight has a power consumption of 6/9W and a luminous flux of 575/775lm. It is tiltable and equipped with clip springs for easy installation. The article number WEV-184841G5 comes with accessories such as clip springs, LED module, plug, and plaster frame included. Please note that dimmers and drivers are not included.

Design and Application

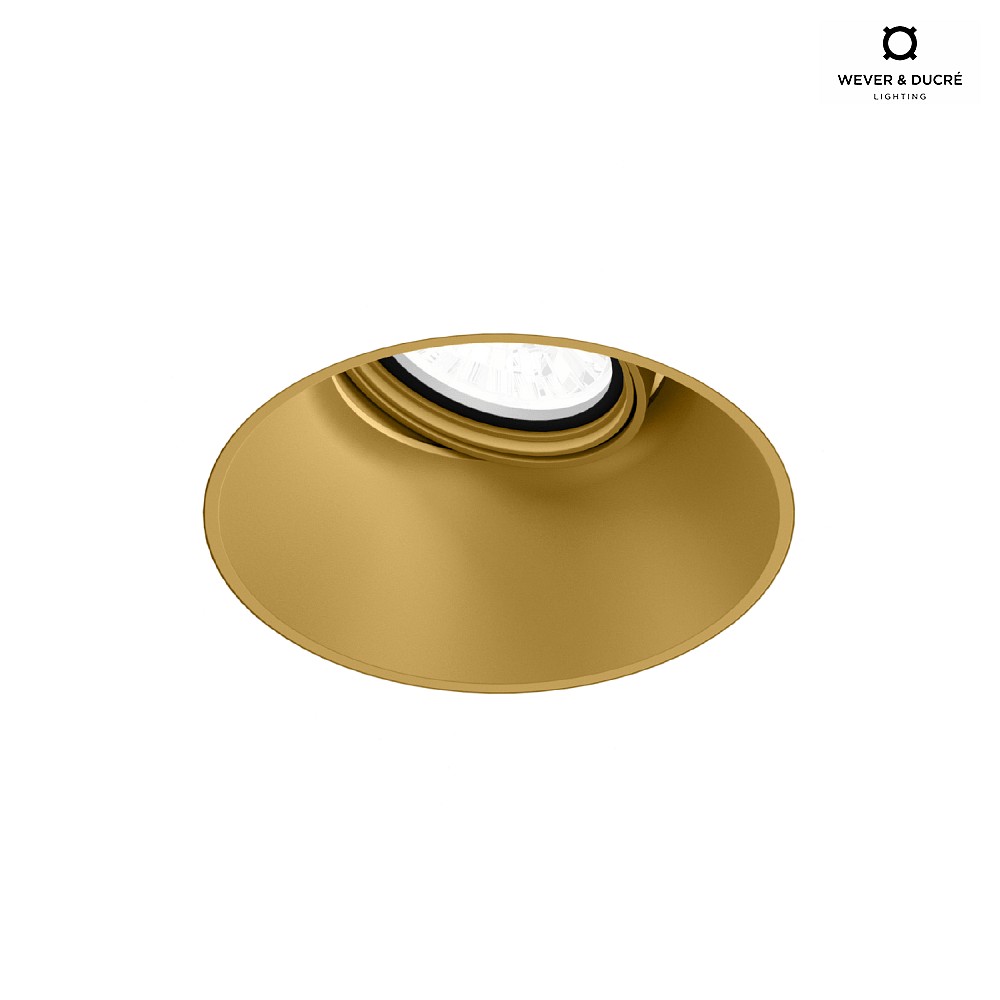

This round LED recessed ceiling spotlight is ideal for dry indoor areas. Thanks to the flush mounting without protruding trim, it seamlessly blends into your ceiling. The optimal alignment of the light cone is ensured by the rotatable and tiltable lamp insert.

Flexibility and Energy Efficiency

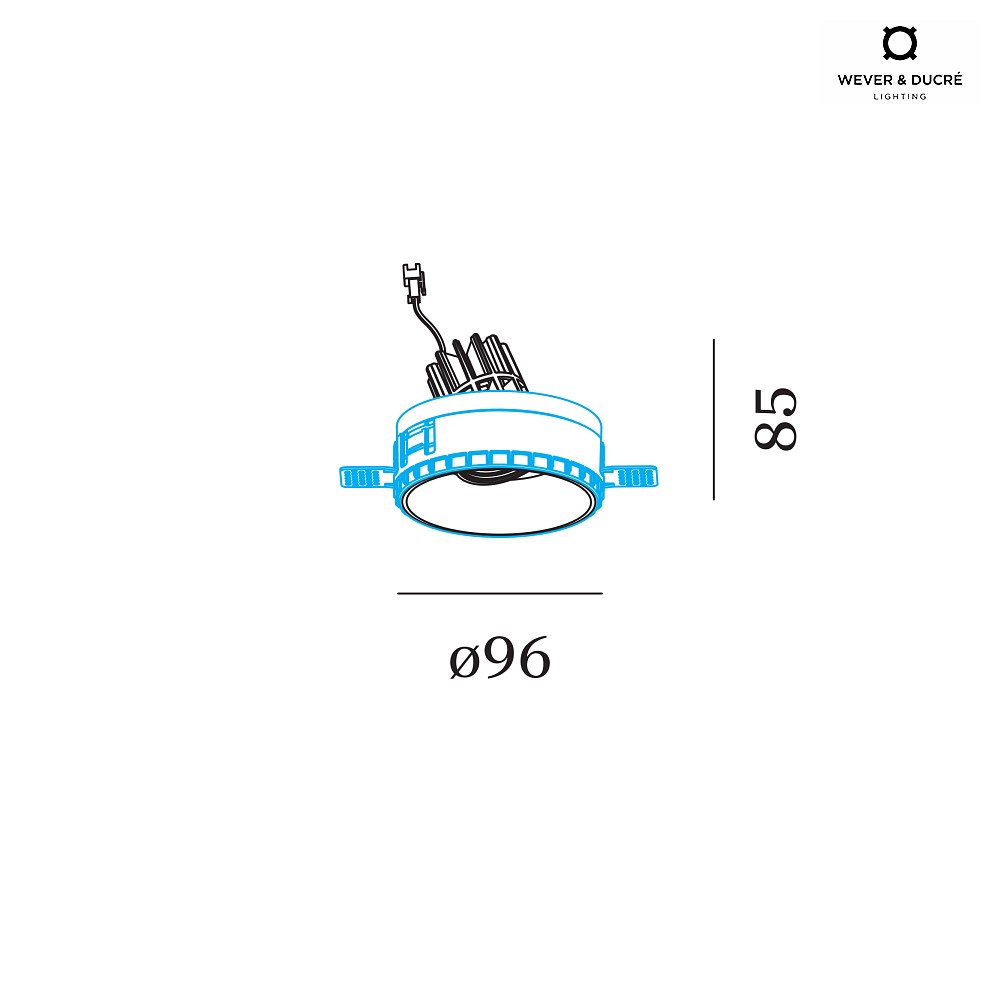

The built-in spotlight offers you the option to choose between a power level of 6 watts or 9 watts. The dimmable light output depends on the selected operating device. With a weight of only 0.23kg and a size of Ø/ H: 9.6/ 8.5 cm, it is easy to handle and fits into various ceiling cutouts.

Additional Information and Notes

The LED Built-in Spotlight DEEP ADJUST TRIMLESS 1.0 has a protection class of 3 and an IP protection rating of IP20. The burning position is 440 and the average lamp life is 55,000 hours. Please note the photobiological risk class RG3 and the color consistency of 2 SDCM for consistent light colors. Discover other versions of the DEEP / DEEPER series for a customized lighting solution.
