ceiling recessed luminaire DEEP ADJUST TRIMLESS 1.0 flush, cardanic swivelling, with wire springs IP20, gold dimmable

LED recessed spotlight DEEP ADJUST TRIMLESS 1.0

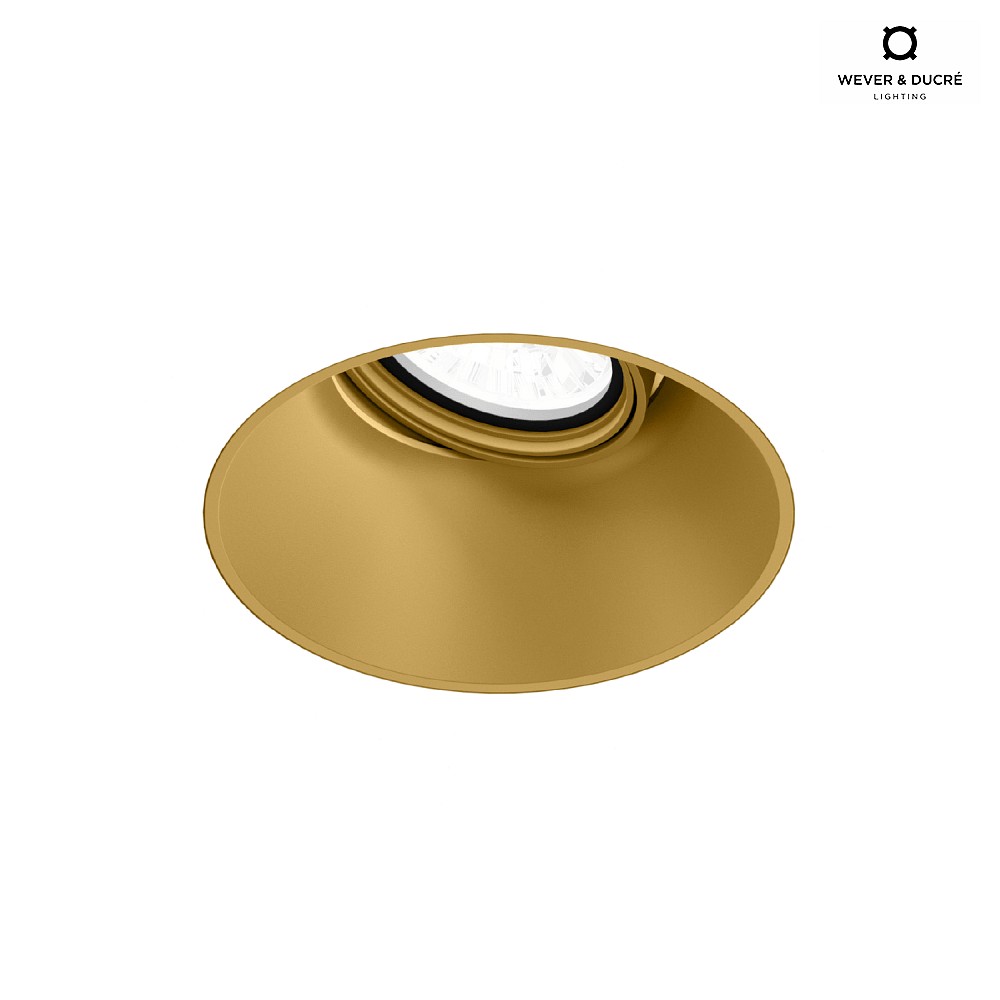

The LED recessed spotlight DEEP ADJUST TRIMLESS 1.0 from Wever & Ducré is a high-quality ceiling recessed spotlight for dry indoor areas. It allows for flush mounting without protruding trim and provides optimal alignment of the light cone through a rotating and swiveling lamp insert.

Technical details

The recessed spotlight has an operating voltage of 17V and a power consumption of either 6 or 9W. With a color rendering index of over 90Ra and a color temperature of 3000K, it offers very good color reproduction and pleasant light. The beam angle is 56° and the luminous flux ranges between 575 and 775lm.

Accessories and installation

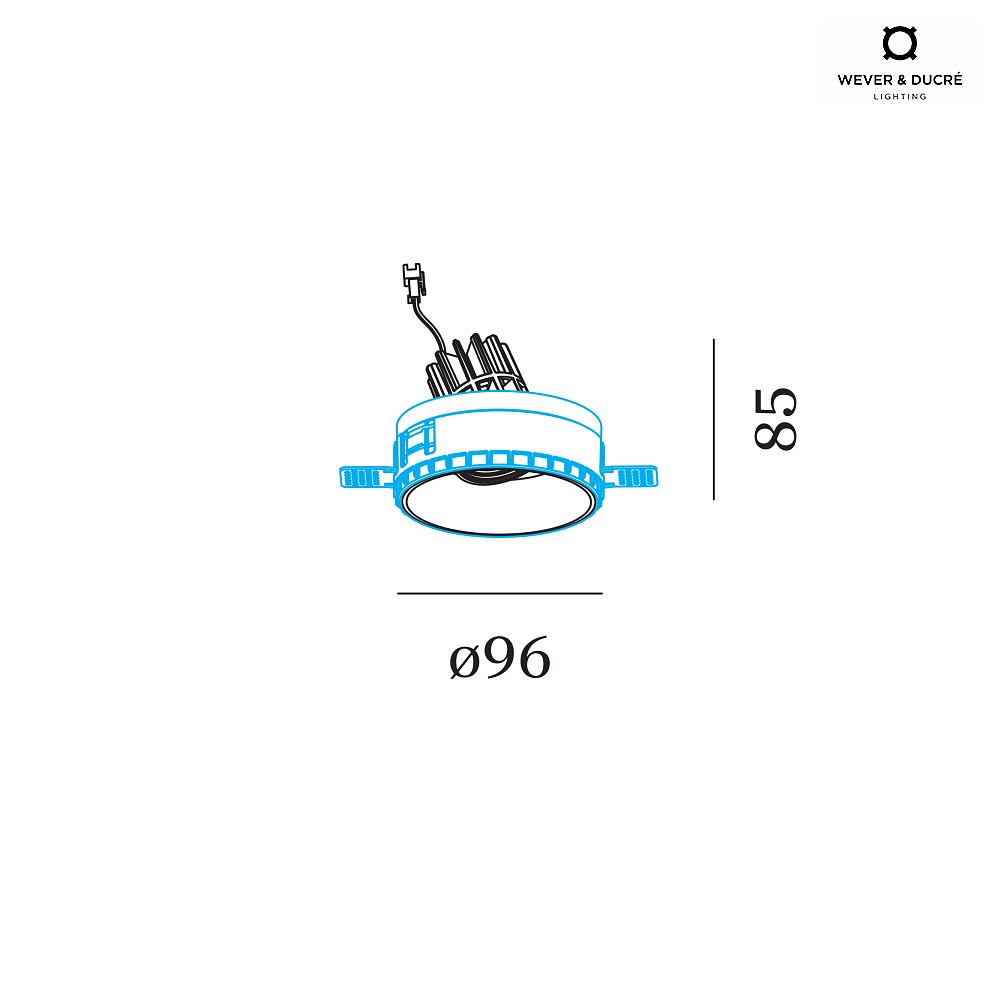

Accessories for the spotlight include clip springs, an LED module, and a system connector. A dimmer and a driver are not included in the delivery. The spotlight can be mounted with an adjustable aluminum plaster frame and is suitable for ceiling cutouts from 10.5cm to 11cm.

Additional information

The LED recessed spotlight DEEP ADJUST TRIMLESS 1.0 has an energy efficiency class of D and a protection class of 3. It is dimmable, depending on the selected operating device, and offers a photobiological risk class RG3. The color consistency with a tolerance of 2 SDCM ensures a uniform light color when using multiple luminaires.

Conclusion

With its high-quality design, flexible alignment of the light cone, and dimmable light output, the LED recessed spotlight DEEP ADJUST TRIMLESS 1.0 is an ideal solution for indoor areas. It offers high color reproduction, various mounting options, and is part of a series of recessed spotlights for versatile applications.
