ceiling recessed luminaire DEEP ADJUST TRIMLESS 1.0 flush, cardanic swivelling, with wire springs IP20, mat, deep black dimmable

Wever & Ducré



Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

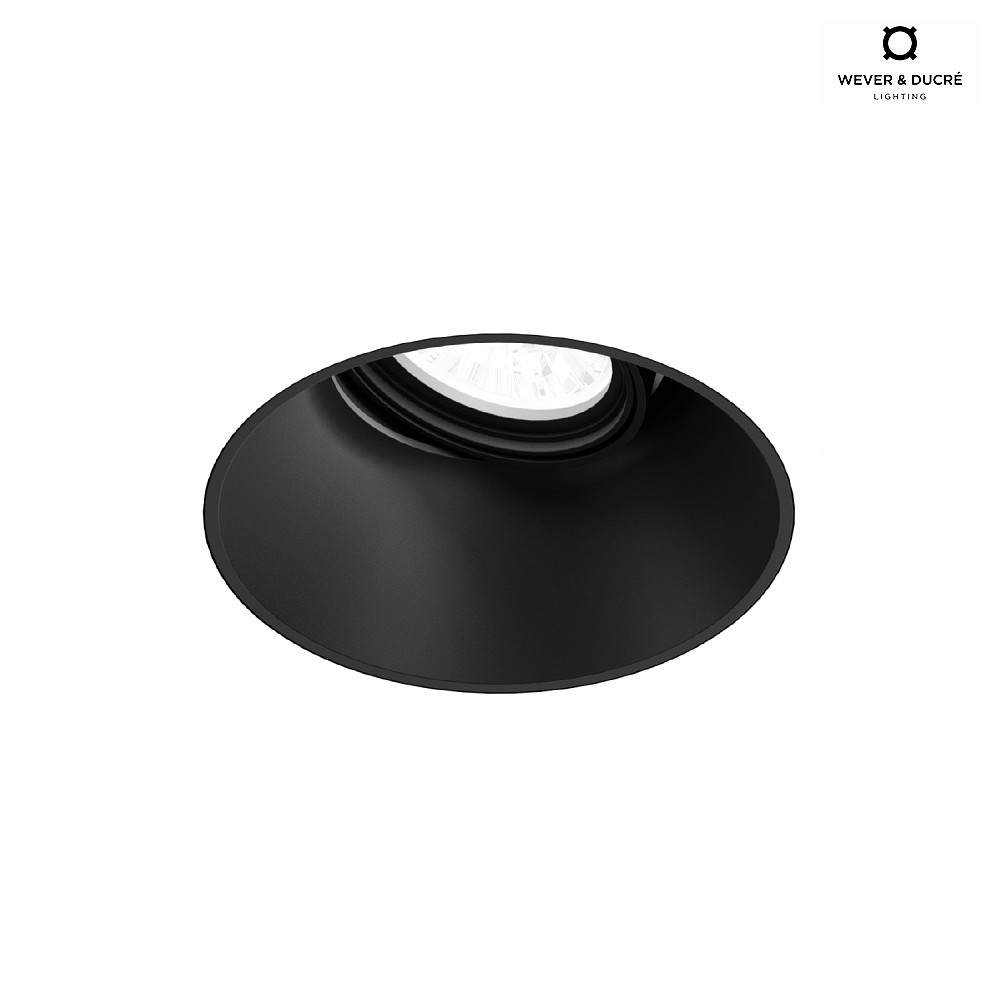

LED Recessed Spotlight DEEP ADJUST TRIMLESS 1.0

The LED Recessed Spotlight DEEP ADJUST TRIMLESS 1.0 from Wever & Ducré is a high-quality ceiling recessed spotlight for dry indoor areas. With a flush mounting without a protruding bezel, it seamlessly blends into the ceiling and provides a modern and elegant lighting.

Technical Details

The recessed spotlight has a power consumption of either 6 or 9 watts and a luminous flux of 575 or 775 lumens. With a color rendering index of over 90Ra and an energy efficiency class of D, it offers very good color rendering and saves energy at the same time.

Optimal Adjustment of the Light Cone

Thanks to the rotatable and swiveling light source insert, an optimal adjustment of the light cone is possible. The spotlight is gimbal swivelable, allowing for targeted lighting of objects or rooms.

Dimmable and Flexible

The LED recessed spotlight is dimmable, depending on the selected operating device. With the appropriate accessories such as LED module and plug, the light output can be individually adjusted. A dimmer and driver are not included.

Easy Installation and Adjustment

The installation of the recessed spotlight is done with an adjustable aluminum plaster frame. The ceiling cutout should be between 10.5 and 11 cm, and the plaster wings can be locked at various points on the mounting frame depending on the ceiling thickness. This allows the spotlight to be flexibly adjusted to the local conditions.

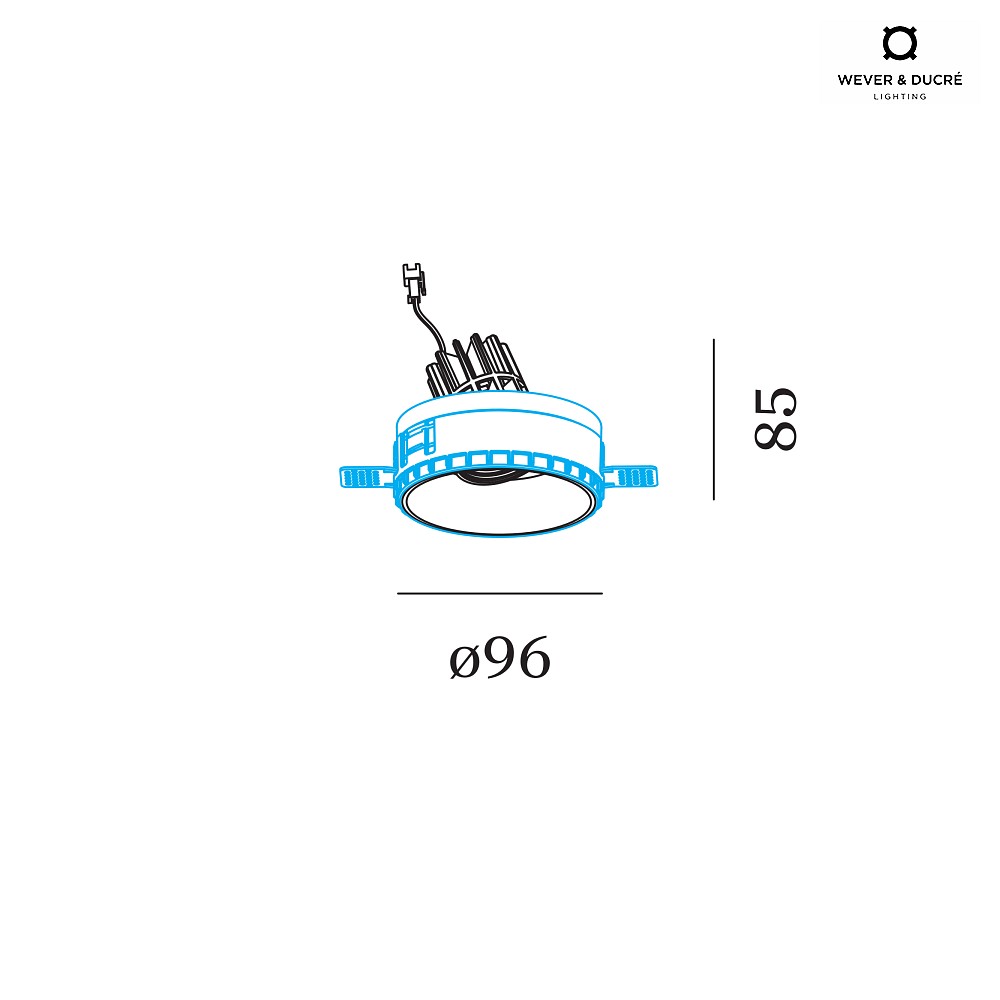

Dimension:
Ø∕ H: 9,6∕ 8,5 cm
Weight:
0,23 kg
Product type:
ceiling recessed luminaire
Operating voltage:
17 V=
Dimmable:
yes
Dimmability:
depending on the control gear
Power consumption:
6/9 W
Emitting angle:
56 °
Voltage:
system connector
Beam direction:
swivelling
Light flux:
575/775 lm
Colour temperature:
3000 K
Average life span of a bulb in hours:
55000 h
Colour rendering index:
>90 Ra
1A
Admissible burning position:
444
Protection class:
3
IP-protection class:
IP20
Accessories:
clip springs included
LED module included
plug included
dimmer excluded
driver excluded
plasterkit excluded
Energy efficiency category:
D
Energy consumption:
9 kWh/1.000 h
Purchasing quantity:
1 piece
Brand:
Wever & Ducré
Manufacturer:
Wever & Ducré
Manufacturer information
WEVER & DUCRÉ BV, Spinnerijstraat 99/21, 8500, Kortrijk, Belgium, office@weverducre.com, https://www.weverducre.com/
