ceiling recessed luminaire DEEP ADJUST TRIMLESS 1.0 flush, cardanic swivelling, with wire springs IP20, mat

Wever & Ducré



Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

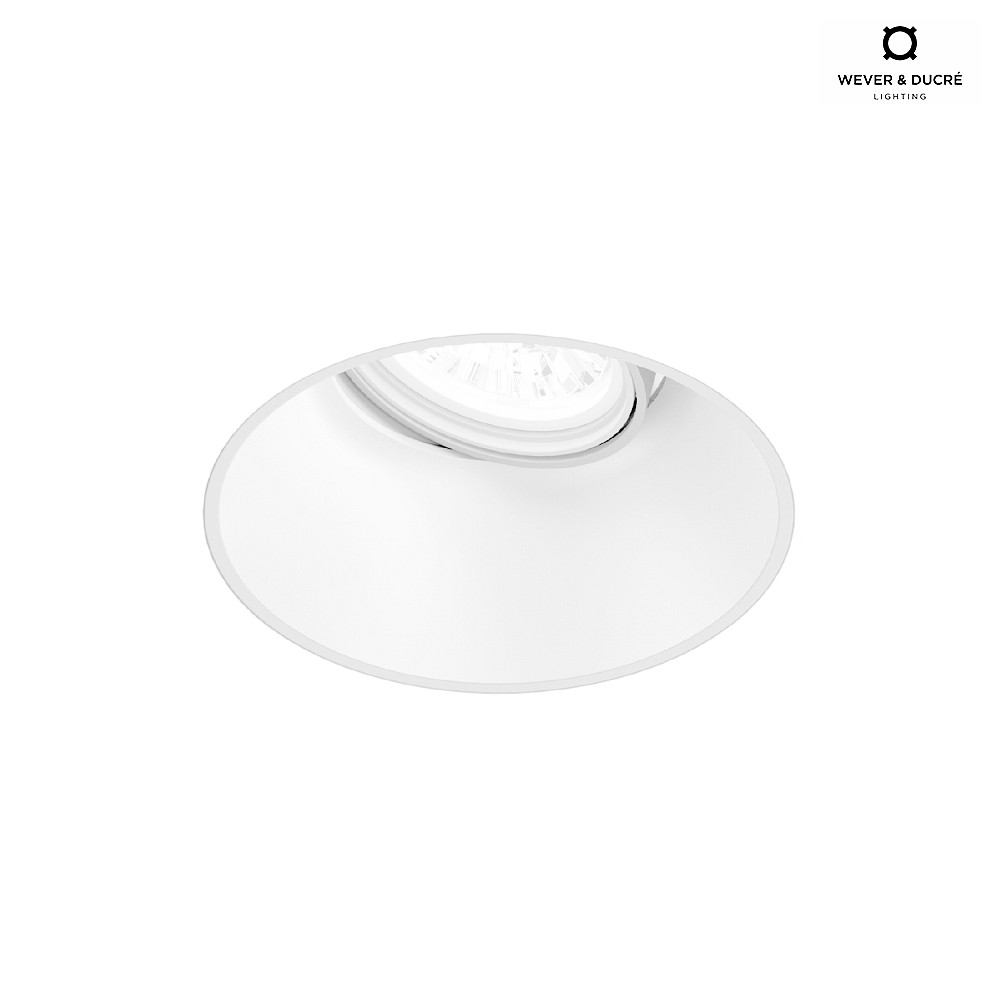

LED recessed spotlight DEEP ADJUST TRIMLESS 1.0

The LED recessed spotlight DEEP ADJUST TRIMLESS 1.0 from Wever & Ducré is a high-quality ceiling recessed spotlight for dry indoor areas. With its round design and flush mounting without protruding trim, it seamlessly blends into any room.

Technical details and accessories

The spotlight has a power consumption of either 6 or 9 watts and a luminous flux of 530 or 715 lumens. With a color rendering index of over 90Ra, it offers very good color reproduction. The spotlight is tilt adjustable for individual adjustment of the light cone.

Installation and adjustment options

Installation is done with an adjustable aluminum plaster frame that can flexibly adapt to the ceiling thickness. The ceiling cutout should be between 10.5 and 11 cm. The plaster wings can be locked at different points of the installation frame (12.5 / 15 / 20 / 25 mm).

Dimmability and energy efficiency

The LED recessed spotlight DEEP ADJUST TRIMLESS 1.0 is dimmable, depending on the selected operating device. It belongs to energy efficiency class D and consumes 9 kWh per 1,000 hours. The average lamp lifespan is an impressive 55,000 hours.

More information and variations

The spotlight comes with accessories such as clip springs, LED module, plug, and optional dimmer and driver. It offers an extremely wide beam angle (Wide Flood) and a photobiological risk class RG3. Other versions of the DEEP / DEEPER series are also available.

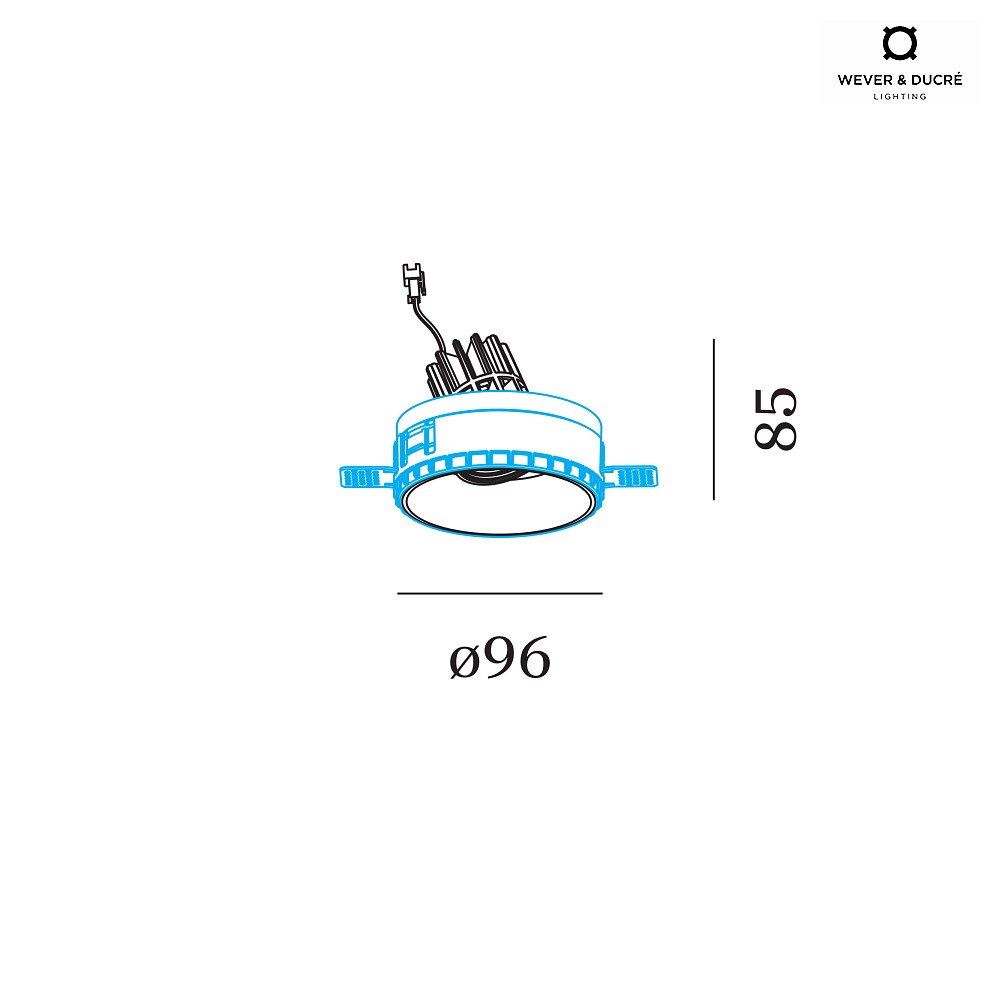

Dimension:
Ø∕ H: 9,6∕ 8,5 cm
Weight:
0,23 kg
Product type:
ceiling recessed luminaire
Operating voltage:
17 V=
Dimmable:
yes
Dimmability:
depending on the control gear
Power consumption:
6/9 W
Emitting angle:
56 °
Voltage:
system connector
Beam direction:
swivelling
Light flux:
530/715 lm
Colour temperature:
2700 K
Average life span of a bulb in hours:
55000 h
Colour rendering index:
>90 Ra
1A
Admissible burning position:
447
Protection class:
3
IP-protection class:
IP20
Accessories:
clip springs included
LED module included
plug included
dimmer excluded
driver excluded
plasterkit excluded
Energy efficiency category:
D
Energy consumption:
9 kWh/1.000 h
Purchasing quantity:
1 piece
Brand:
Wever & Ducré
Manufacturer:
Wever & Ducré
Manufacturer information
WEVER & DUCRÉ BV, Spinnerijstraat 99/21, 8500, Kortrijk, Belgium, office@weverducre.com, https://www.weverducre.com/
