ceiling recessed luminaire DEEP ADJUST TRIMLESS 1.0 flush, cardanic swivelling, with wire springs IP20, mat

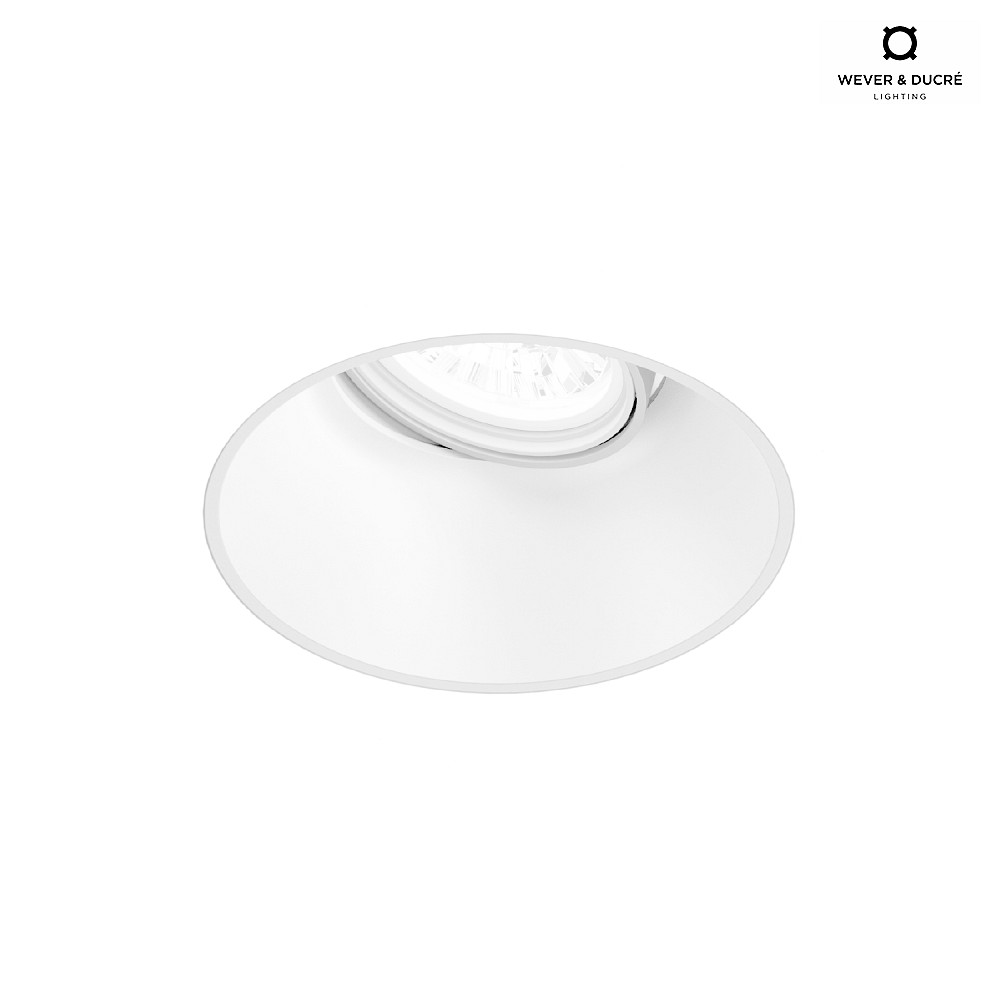

LED Recessed Spotlight DEEP ADJUST TRIMLESS 1.0

The LED Recessed Spotlight DEEP ADJUST TRIMLESS 1.0 from Wever & Ducré is specially designed for dry indoor areas. With its round design, it allows for flush mounting without any protruding bezel, creating a clean and modern appearance.

Technical Data

The recessed spotlight has a beam angle of 56° and a power consumption of 6/9W. With a light output of 575/775lm and a color temperature of 3000K, it offers excellent color rendering with a CRi value of over 90Ra. The average lamp lifespan is an impressive 55000 hours.

Adjustable and Dimmable

Thanks to the tiltable and swiveling light source insert, the light beam can be optimally adjusted. The recessed spotlight is dimmable, depending on the selected operating device (dimmer not included). The power level can be chosen between 6 watts and 9 watts, depending on the need and room size.

Installation and Accessories

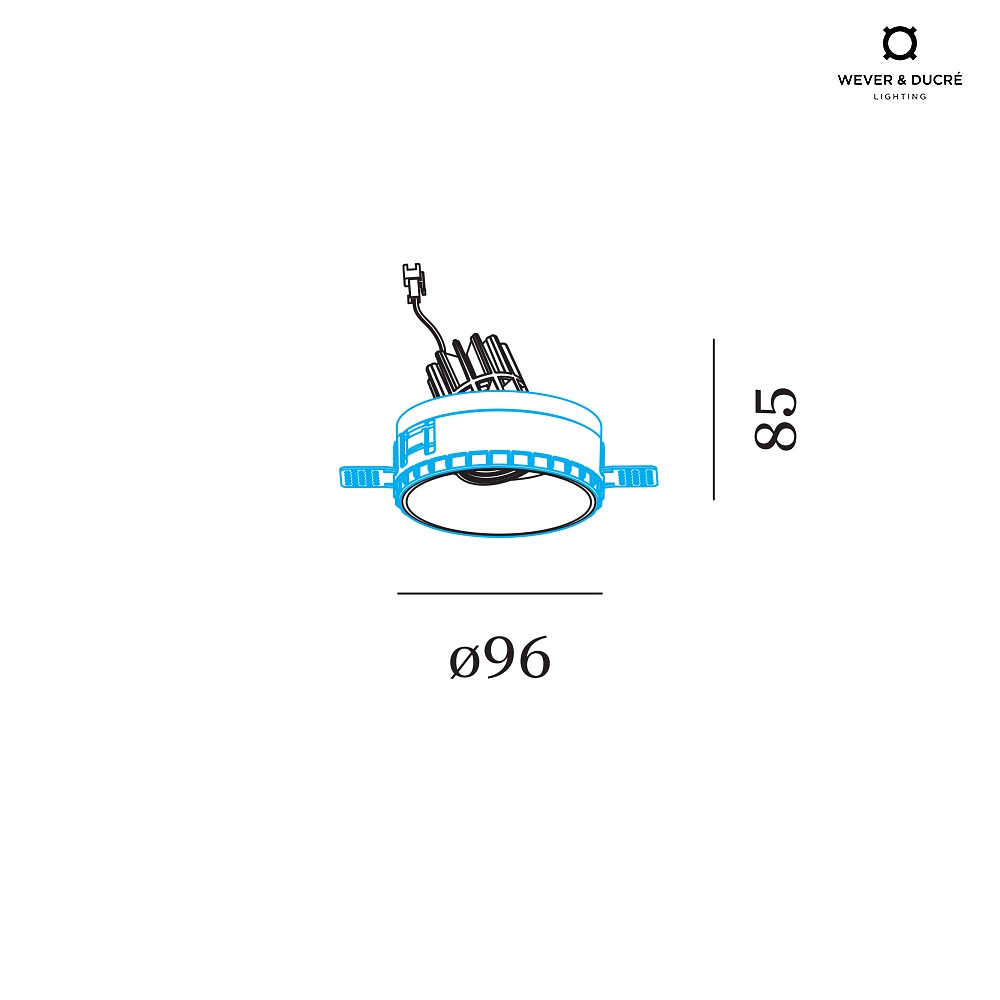

The installation is done with an adjustable aluminum plaster frame, allowing for flexible adaptation to the ceiling thickness. The ceiling cutout should be between 10.5cm and 11cm. With the plaster wings, the mounting position can be fixed at various depths (12.5 / 15 / 20 / 25mm).

Additional Information

The LED Recessed Spotlight DEEP ADJUST TRIMLESS 1.0 is classified in energy efficiency class D and protection class 3. With an IP protection rating of IP20, it is suitable for indoor use. The color rendering index is 1A, and the photobiological risk class is RG3. The spotlight's optics are extremely wide flood, allowing for a wide area of illumination. Other versions of the DEEP / DEEPER series are also available.
