ceiling recessed luminaire DIONE voltage constant IP20, silver grey, white dimmable

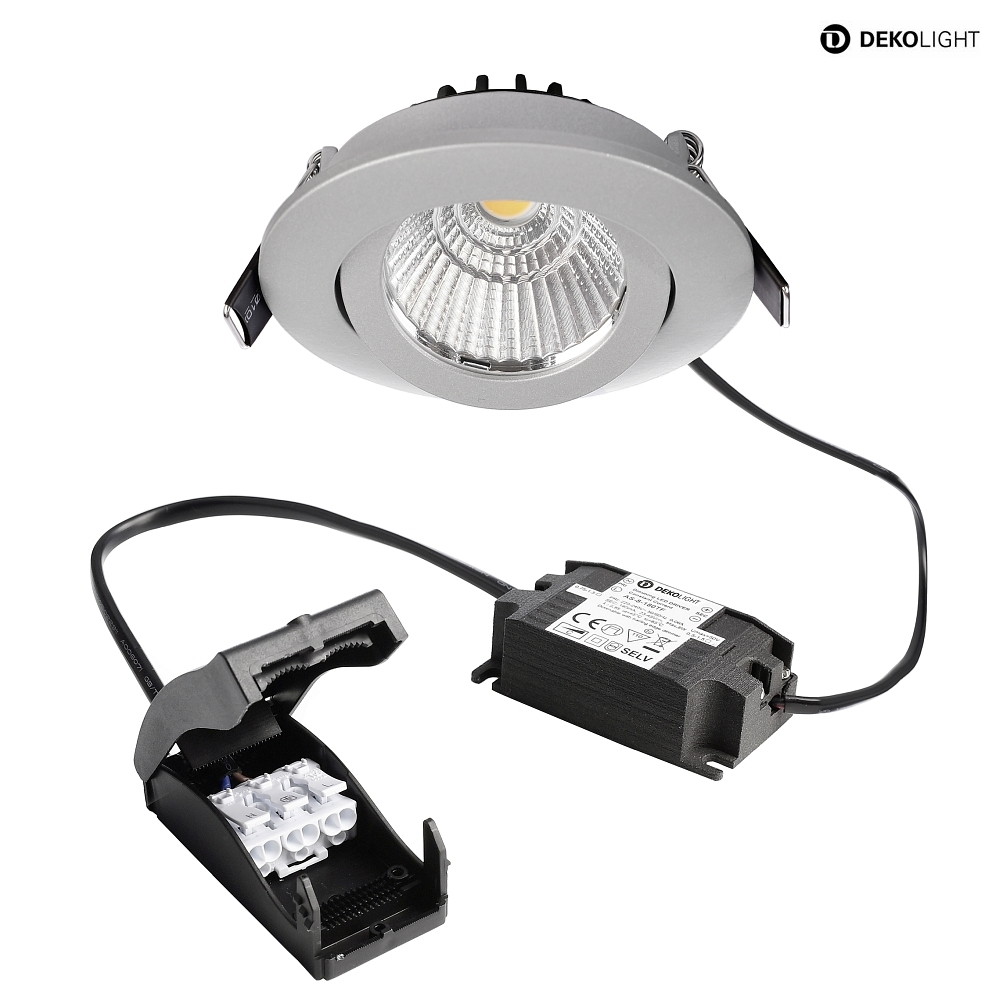

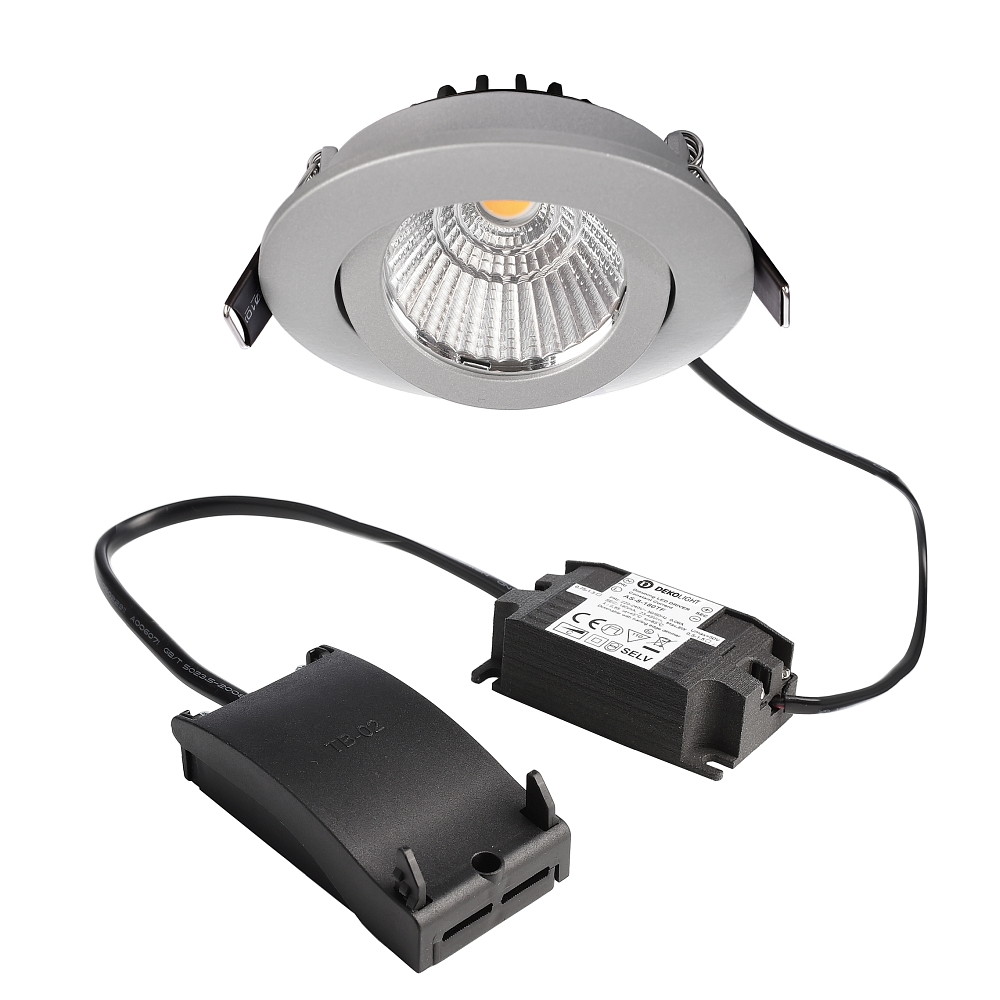

LED Recessed Ceiling Light DIONE IP20

The LED Recessed Ceiling Light DIONE IP20 is an energy-saving solution for indoor spaces. With a power consumption of 8.5W and a luminous flux of 700lm, it provides pleasant lighting in a warm white light color. The recessed ceiling light has a beam angle of 38° and a symmetrical light distribution.

Technical Details

The recessed ceiling light has a size of Ø 8.2 cm and a recessed depth of 3.8 cm. It features a COB LED light source with an average lamp lifespan of 50000 hours. Dimming is done through phase control and it can be tilted by 30°. The IP protection rating is IP20 and the protection class is 2.

Installation and Accessories

The recessed ceiling light is supplied with a light source and has a mains connection with a clamp connection. It only requires a ceiling cavity of 25.5 mm for installation. The accessories include a power supply unit and the easy installation is done with through wiring.

Further Information

Further information about the LED Recessed Ceiling Light DIONE IP20 includes a color temperature of 3000K, a color rendering index of 80Ra, and an energy efficiency class F. The operating voltage is between 220-240V and the mains frequency is 50-60Hz. It is ideal for use in various indoor spaces.

Reliable Lighting

With a switching cycle of 25000 and a start time of 0.5s, the LED Recessed Ceiling Light DIONE IP20 provides a reliable lighting solution. It has a power factor of 0.9, a maximum switch-on current of 5A/100µs, and a maximum number of circuit breakers depending on the type. The swiveling design allows for flexible light alignment.
