ceiling recessed luminaire SMD-68-230V-RUND round IP20, traffic black dimmable

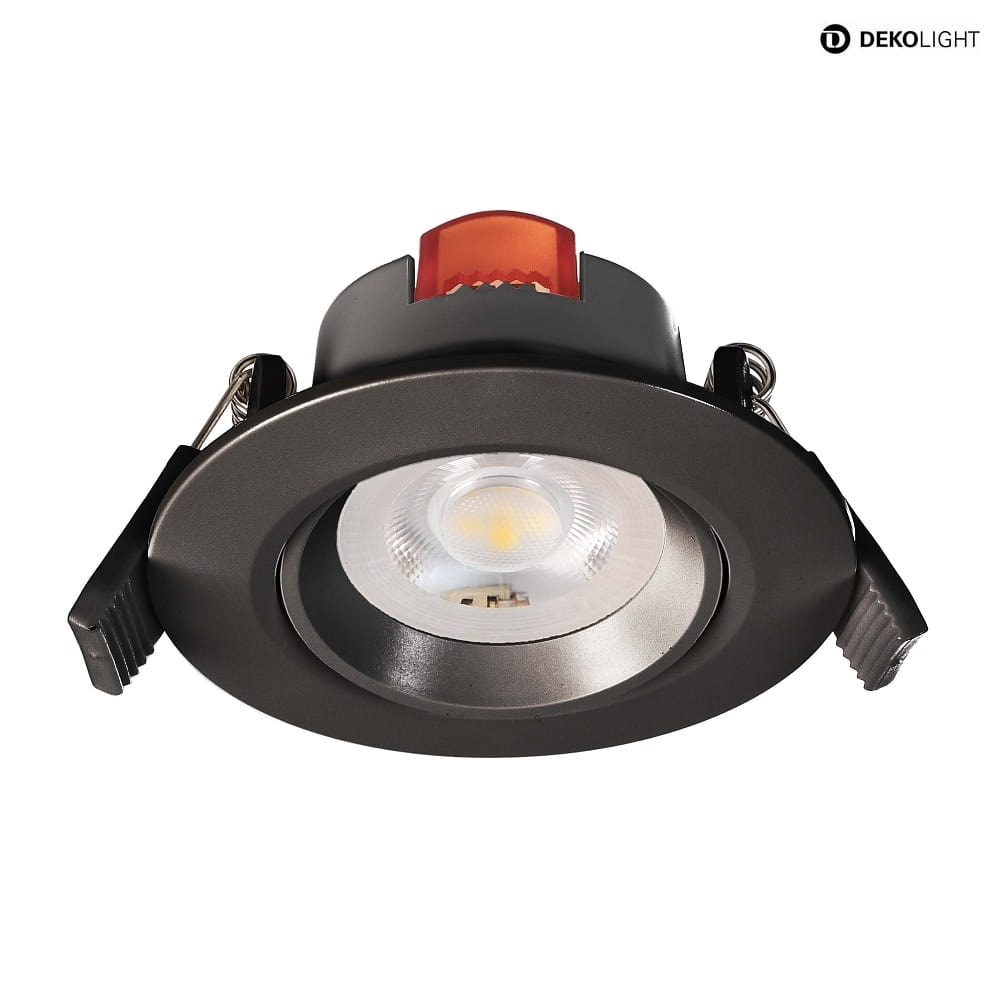

LED Recessed Ceiling Light SMD-68-230V-ROUND

The LED Recessed Ceiling Light SMD-68-230V-ROUND is a round fixture with a power of 6.5W and a luminous flux of 550lm. It has a neutral light color of 4000K and a color rendering index of 80Ra. With a beam angle of 45°, it provides symmetrical light distribution.

Technical Details

With a size of Ø 8.5 cm and an installation depth of 4.13 cm, the recessed ceiling light is ideal for indoor use. It has an IP20 protection rating and can be operated with a power supply (included in the delivery). The installation is done through recessed mounting and the power connection is made via a clamp connection.

Energy Efficiency and Dimmability

The LED recessed ceiling light has an energy efficiency class of G and an energy consumption of 7kWh/1,000 h. It is dimmable and can be dimmed with both leading-edge and trailing-edge dimmers. With a start time of 0.5s, it provides bright light immediately after switching on.

Additional Information

This recessed ceiling light has a lifespan of 15,000 switching cycles and can be operated in a temperature range of -10 to 40°C. It is designed in traffic black color and made of plastic. The LED cannot be replaced, but at the end of its lifespan, the light output is still 0.7lm.

Accessories and Application Area

The ceiling recessed light comes with a light source of SMD LED 2835 type with 7 LEDs. The installation opening is 6.8cm in diameter. This fixture is ideal for use in ceilings, providing uniform lighting in indoor spaces. With a color consistency of 6 SDCM and a power factor of 0.9, it ensures a pleasant lighting environment.
