ceiling recessed luminaire UNI II TILT 350MA 2-pole, current constant, cardanic swivelling IP20, deep black dimmable

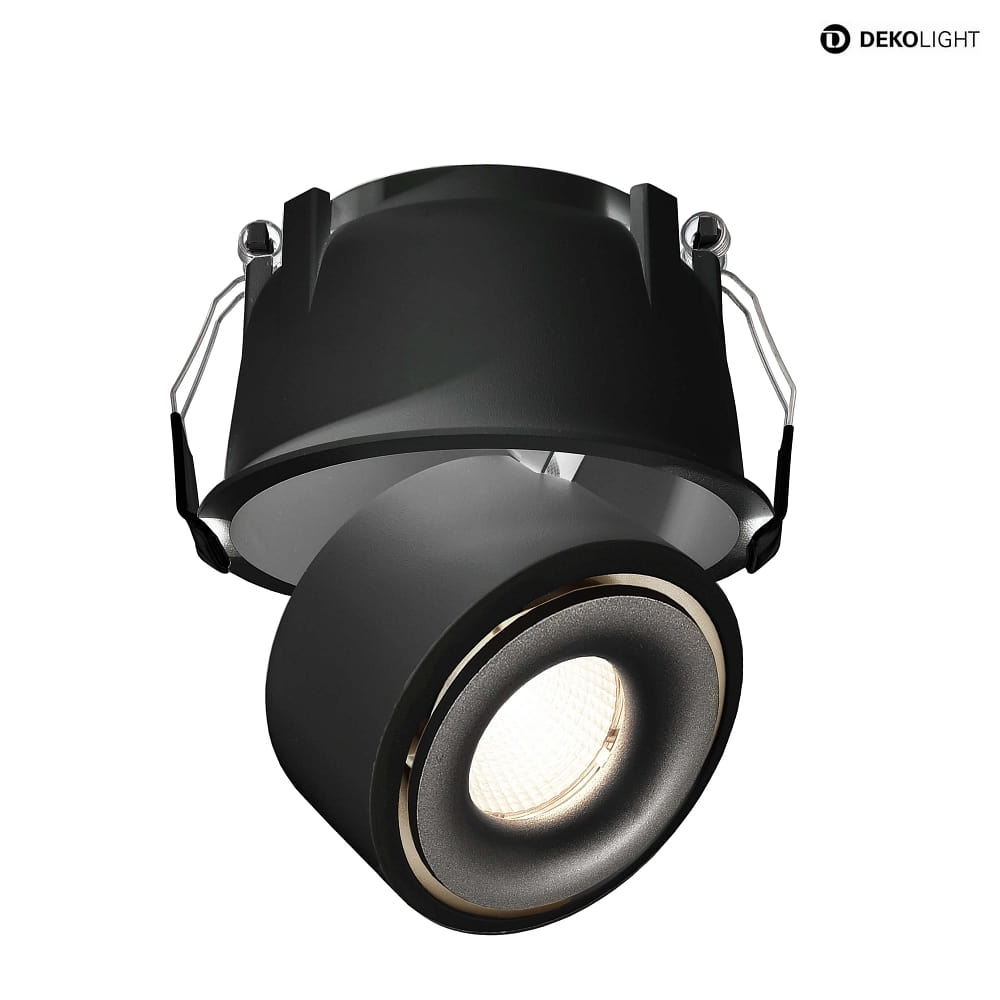

LED Recessed Ceiling Spotlight UNI II TILT

The LED Recessed Ceiling Spotlight UNI II TILT is a gimbal, dimmable spotlight with a swivel range of 85°. It has a recessed depth of 9cm and a cutout opening with a circle diameter of 12.5cm. With a luminous intensity of 1930cd and a beam angle of 36°, this spotlight provides targeted lighting.

Efficient Lighting with COB LED V10 ARRAY

The light source of the spotlight is a COB LED V10 ARRAY, which produces a light output of 1035lm with a power consumption of 12W. With a light efficiency of 86.3lm/W and a color temperature of 3000K, the spotlight offers a warm white, dimmable light output with a very good color rendering of >90Ra.

Versatile Mounting Options and Accessories

The LED Recessed Ceiling Spotlight UNI II TILT is suitable for recessed mounting and can be individually customized with various accessories such as clip springs, covers, diffusers, lens attachments, reflectors, and drivers. The installation is done via open cables with a 2-pole mains connection.

Technical Data and Features

The spotlight has an energy efficiency class of F and a protection class of 3. It is suitable for indoor use only and offers direct light distribution. With a weight of 0.59kg and dimensions of 13.9cm in diameter and 8.4cm in height, it fits discreetly into ceilings.

Optimal Alignment and Additional Information

The LED Recessed Ceiling Spotlight UNI II TILT offers optimal alignment of the light cone on objects, as it is rotatable by 350° and tiltable by 90°. With a color consistency of 0.4295/0.4037 (MacAdam 6 SDCM) and a power factor of 0.9, it provides a high-quality lighting solution. In addition, extensive accessories for customization are available, including reflector rings, honeycomb filters, and various lens options.
