DC MAXI JOLLY HV, dimmable multi LED converter 50W - switch / 1-10V AM/PWM

TCI

Print product information sheet▶

question regarding the article

Print product information sheet▶

question regarding the article

CHF 55,34

excl. Shipping costs / excl. VAT
Recommended retail price: CHF 70.00

You save 20,9 %

Shipping time: 8-10 days

Product no.: TCI-127414
EAN: 8010703328952
In stock: 50

Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

To business registration

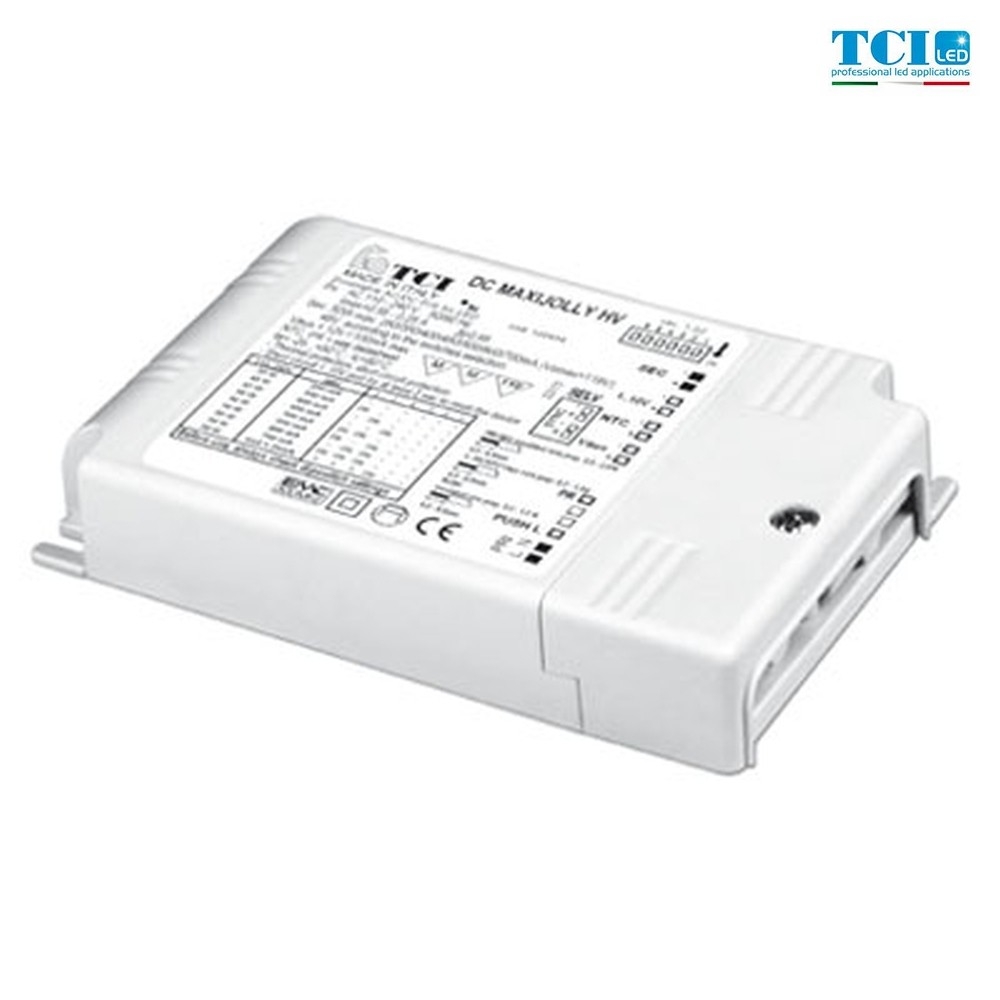

DC MAXI JOLLY HV

The Dimmable Multi-LED Converter 50W - Push button / 1-10V AM/PWM by TCI is a versatile and powerful product that ensures a constant current supply of 250-700mA. With an operating voltage of 230V and a protection class 2, this converter is ideal for indoor use.

Color: white

The housing of the converter is in an elegant white color tone that seamlessly fits into any modern decor. The size of 12.4 x 7.9 x 2.2 cm allows for easy installation for both recessed and surface mounting.

ENEC tested and safety features

This TCI converter is ENEC tested and offers a variety of safety features, including short circuit protection, overload protection, overvoltage protection, and overheat protection. This ensures that your lighting system is optimally protected.

Additional information

With flicker-free design and the ability to connect and control up to 10 devices with the sync cable, this converter offers maximum flexibility and functionality. With the option to choose the constant current, you have full control over your lighting.

Accessories and applications

The package includes the sync cable, which allows you to control your lighting system even more easily and efficiently. This TCI converter is ideal for mounting on normal flammable surfaces and provides reliable performance for a variety of indoor applications.

Article number:

TCI-127414

Purchasing quantity:

1 piece

Brand:

TCI

Product type:

converter

Operating voltage:

230 V~

Dimmable:

yes

Dimmability:

analog 1-10V, PWM dimming, switch dimming

Constant current:

250-700 mA

Power frequency:

50-60 Hz

Bulb type:

LED

Colour:

white

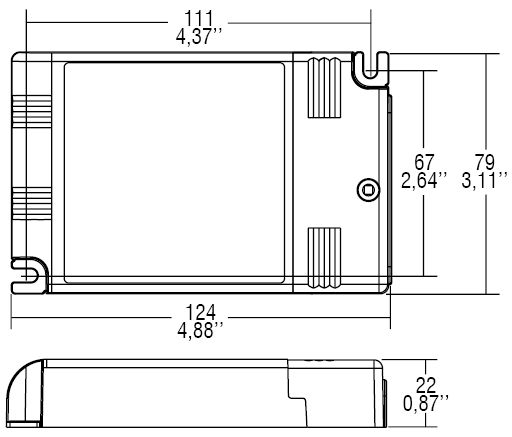

Dimension:

L∕ W∕ H: 12,4∕ 7,9∕ 2,2 cm

Weight:

0,15 kg

Short circuit protected safety transformer:

yes

Protected by more than 110°C in fault:

yes

Suitable for fastening on normal inflammable surfaces:

yes

Mounting:

recessed mounting
surfaced mounting

Protection class:

IP-protection class:

IP20

Application area:

only suitable for indoor use

Additional information:

With the sync-cable up to 10 divices in a row can be switched and switched via the first in row (1 "master" + 9 "slave").
With shortcut circuit protection
Adjustable constant current.
With shortcut circuit protection
20W 24V max. 900mA
22W 28V max. 900mA
10W 12V max. 900mA

Accessories:

sync cable excl
