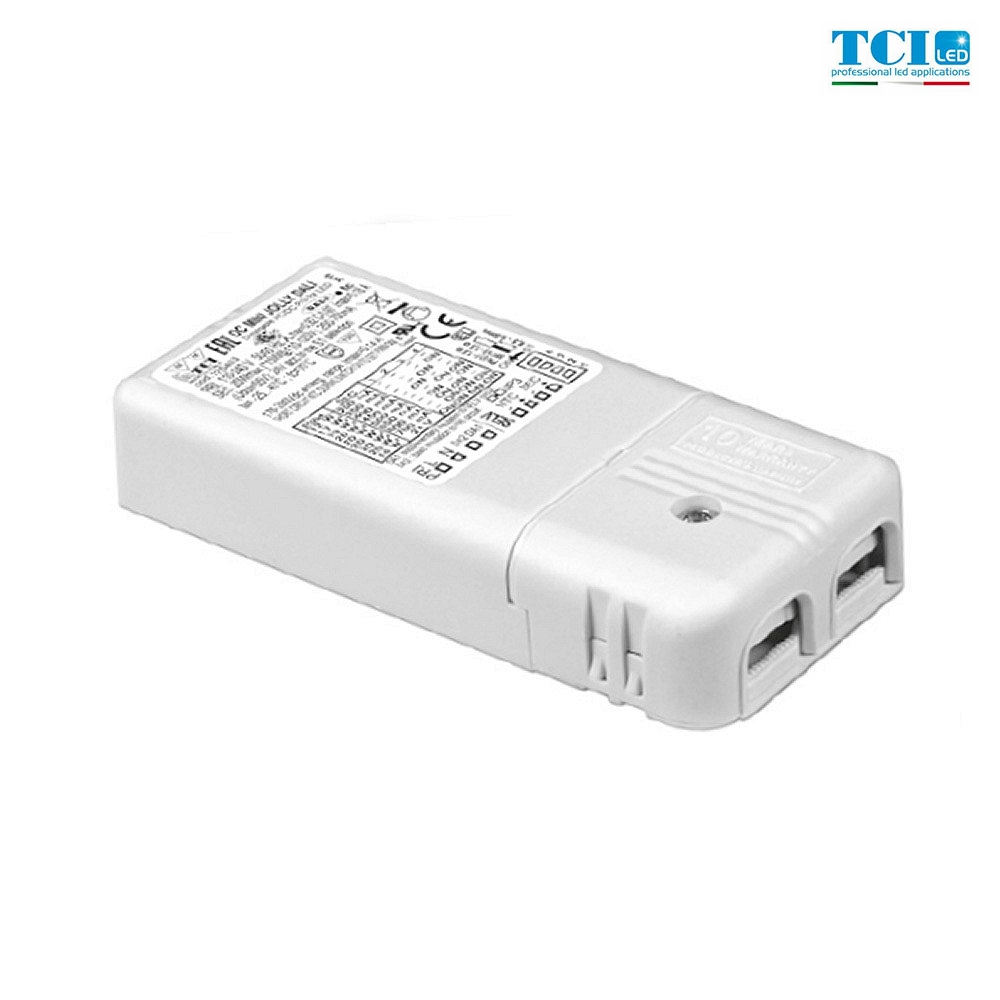

DC Mini JOLLY DALI, dimmable multi LED converter 20W 250…700mA - DALI AM/PWM

Efficient and versatile converter

The DC MINI JOLLY DALI is a dimmable multi-LED converter with a power of 20W and a constant current of 250-700mA. This converter is ideal for operating LED lights and offers high flexibility in controlling brightness.

Reliable protection and tested quality

Thanks to the short circuit window and the fuse transformers, the converter provides reliable protection against overload, overvoltage, overheating, and short circuits. In addition, the product is ENEC certified and suitable for mounting on normally flammable surfaces, ensuring the safety and quality of the converter.

Easy installation and versatile applications

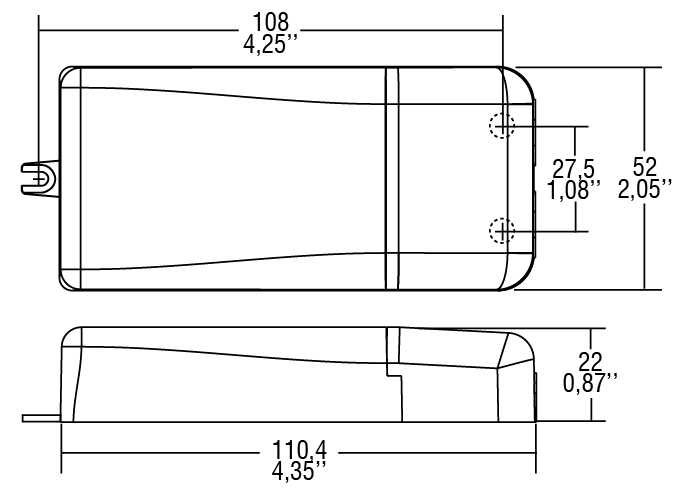

The DC MINI JOLLY DALI can be used for both recessed and surface mounting. With a weight of only 0.106kg and dimensions of 11x5.2x2.2 cm, the converter is compact and easy to install. The operating voltage of 230V and protection class 2 make it ideal for indoor use.

DALI and PWM for individual light control

The converter supports the dimming modes DALI and PWM (Pulse Width Modulation) to enable individual control of light color and brightness. With a maximum current load capacity of 700A and an operating temperature range of -20 to +50°C, the converter provides reliable performance and long service life.

Reliable protection and high efficiency

The DC MINI JOLLY DALI is equipped with overload protection, overvoltage protection, overheating protection, and short circuit protection to ensure safe and efficient use. With the IP protection class IP20 and the TCI brand, the converter offers a reliable solution for lighting in various indoor spaces.
