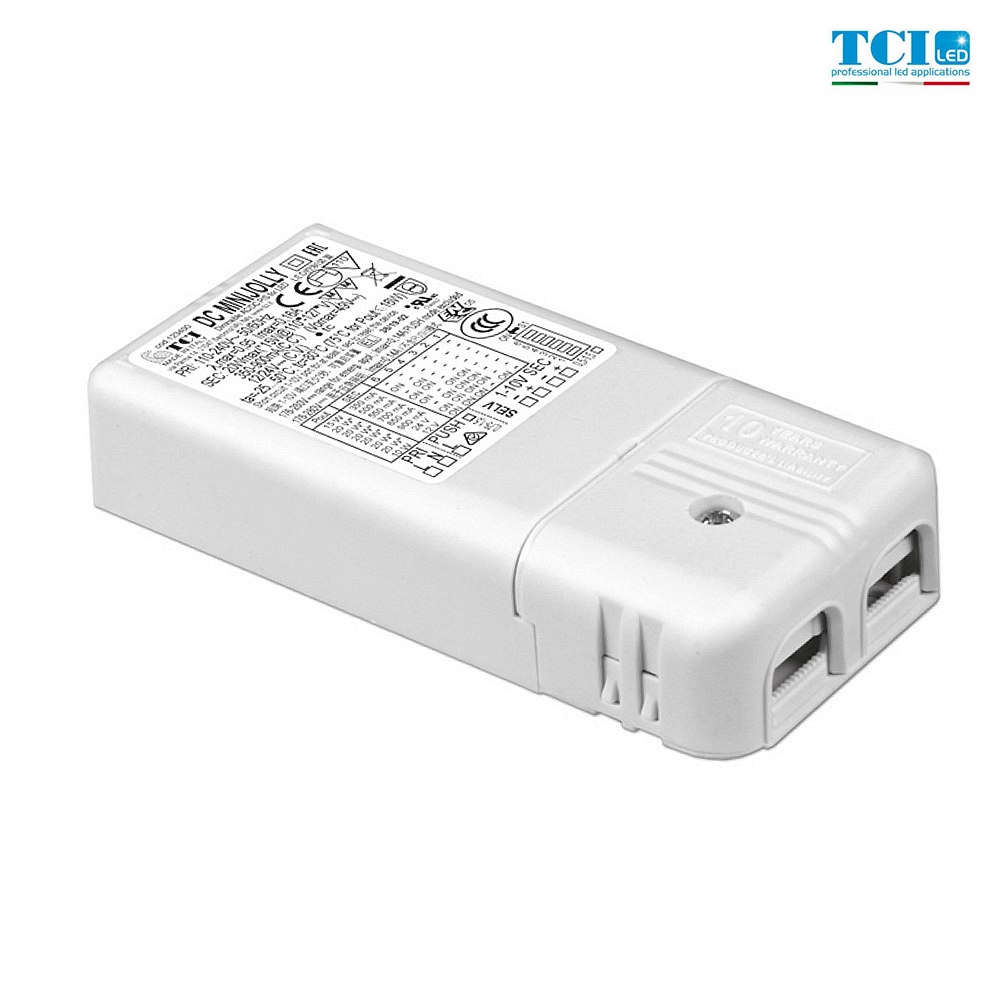

DC Mini JOLLY, dimmable multi LED converter 20W - switch / 1…10V AM/PWM
TCI
CHF 31,47
excl. Shipping costs / excl. VAT
Recommended retail price: CHF 39.80
You save 20,9 %
Shipping time: out of stock
Product no.: TCI-125400
EAN: 8010703329270
In stock: 0
Technical Dimmable Multi LED Converter 20W
The DC MINI JOLLY is a dimmable multi LED converter with a power of 20W. It can be dimmed using a push button or a 1-10V AM/PWM control. The device operates at a voltage of 230V and a constant current of 250-900mA.
Compact size and versatile applications

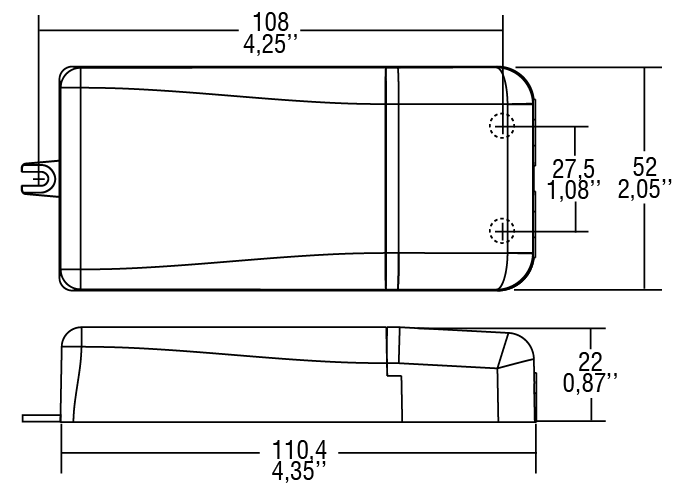

The converter has a size of 11.1 x 5.2 x 2.2 cm and is suitable for both recessed and surface mounting. It can be mounted on normally flammable surfaces and is suitable for indoor use. With a weight of only 0.108kg, it is easy to handle.
Reliable protection and easy handling
The DC MINI JOLLY features various protection mechanisms, including short circuit protection, overload protection, overvoltage protection, overheat protection, and protection in case of over 110°C error. This ensures safe and reliable use.
Easy dimming and high flexibility
The converter supports various dimming options, including Analog 1-10V and PWM pulse width modulation. It can also be dimmed using a light switch. The start time is 5A 50µsecs, allowing for a quick response to changes in brightness.
Energy-efficient LED technology
The DC MINI JOLLY is specifically designed for LED light sources and operates at a mains frequency of 50-60Hz. It is equipped with protection class 2 and has an IP20 protection rating. Additionally, it is flicker-free and offers the ability to adjust the constant current as needed.
recessed mounting
Adjustable constant current.
With shortcut circuit protection
20W 24V max. 900mA
22W 28V max. 900mA
10W 12V max. 900mA
