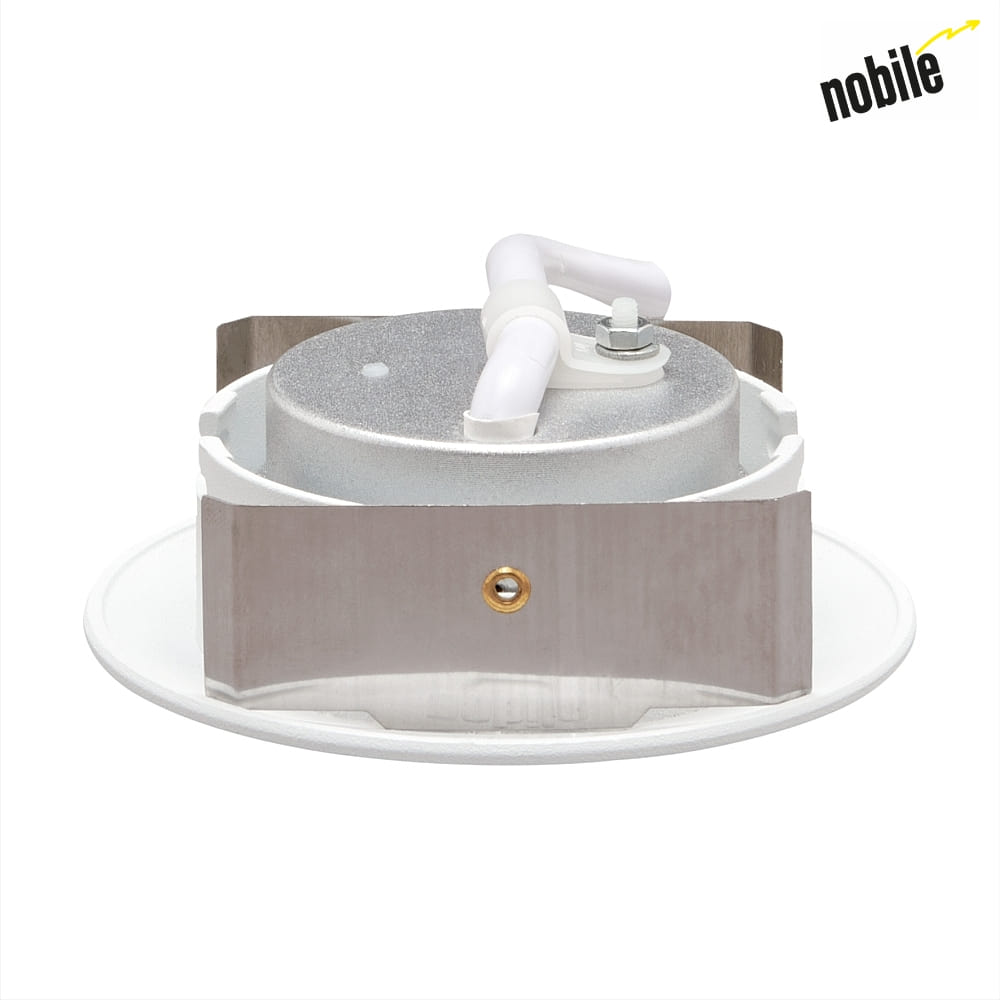

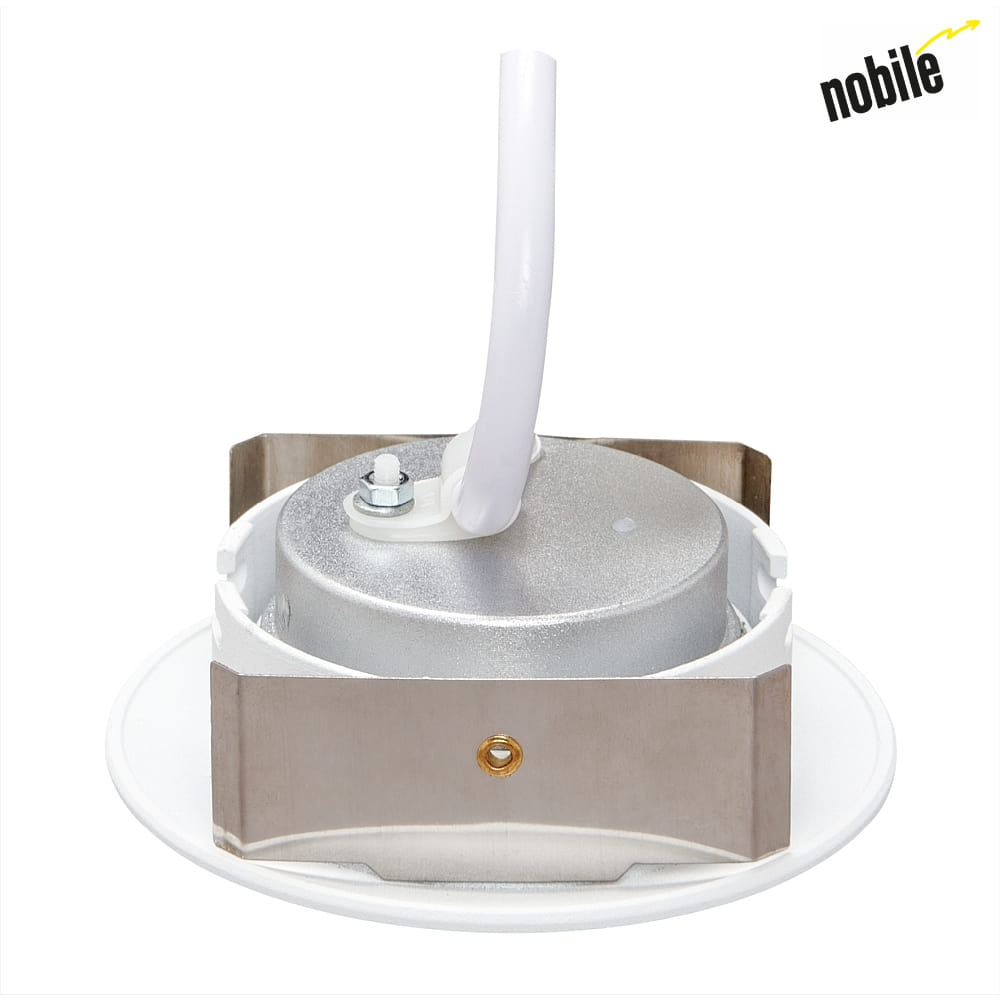

downlight 5068 ECO DOB round, swivelling, incl. driver, set of 1 IP40, white matt dimmable

nobilé



Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

Efficient LED Recessed Downlight 5068 ECO DOB

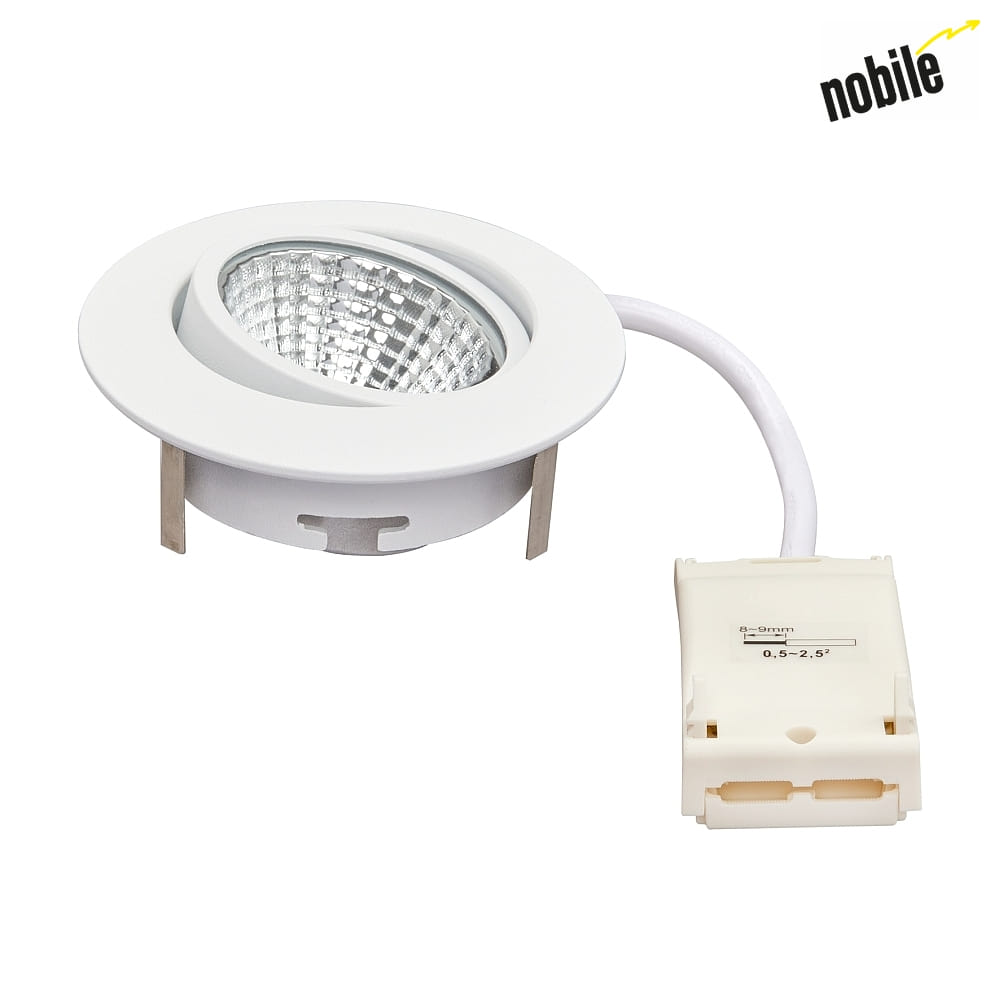

The LED Recessed Downlight 5068 ECO DOB is a swiveling recessed spotlight for indoor use. With a light intensity of 900cd and a power of 6W, it provides a warm white, directed light output with good color rendering. The spotlight is dimmable and ideal for ceilings with low installation depth.

High-quality materials and robust manufacturing

The downlight is made of powder-coated aluminum die-cast and glass, ensuring a durable and robust construction. The high-gloss plastic reflector with high-purity aluminum coating ensures efficient and accurate lighting results. Additionally, the spotlight offers IP40 protection against splashing water.

Technical details and energy efficiency

The LED Recessed Downlight 5068 ECO DOB has an energy efficiency class of G and a power consumption of 6W. With a light output of 95lm/W and a luminous flux of 570lm, it offers an efficient lighting solution. The spotlight also has an average lamp lifespan of 30,000 hours.

Easy installation and versatile application possibilities

The downlight is installed through wiring and can be installed in multiple luminaires in a row. With a diameter of 8.8cm and an installation depth of 4.5cm, the spotlight is ideal for installation in 68mm standard boreholes. It is suitable for ceiling mounting and can be used as a recessed light, spotlight, object light, or accent light.

Reliable luminaire with long lifespan

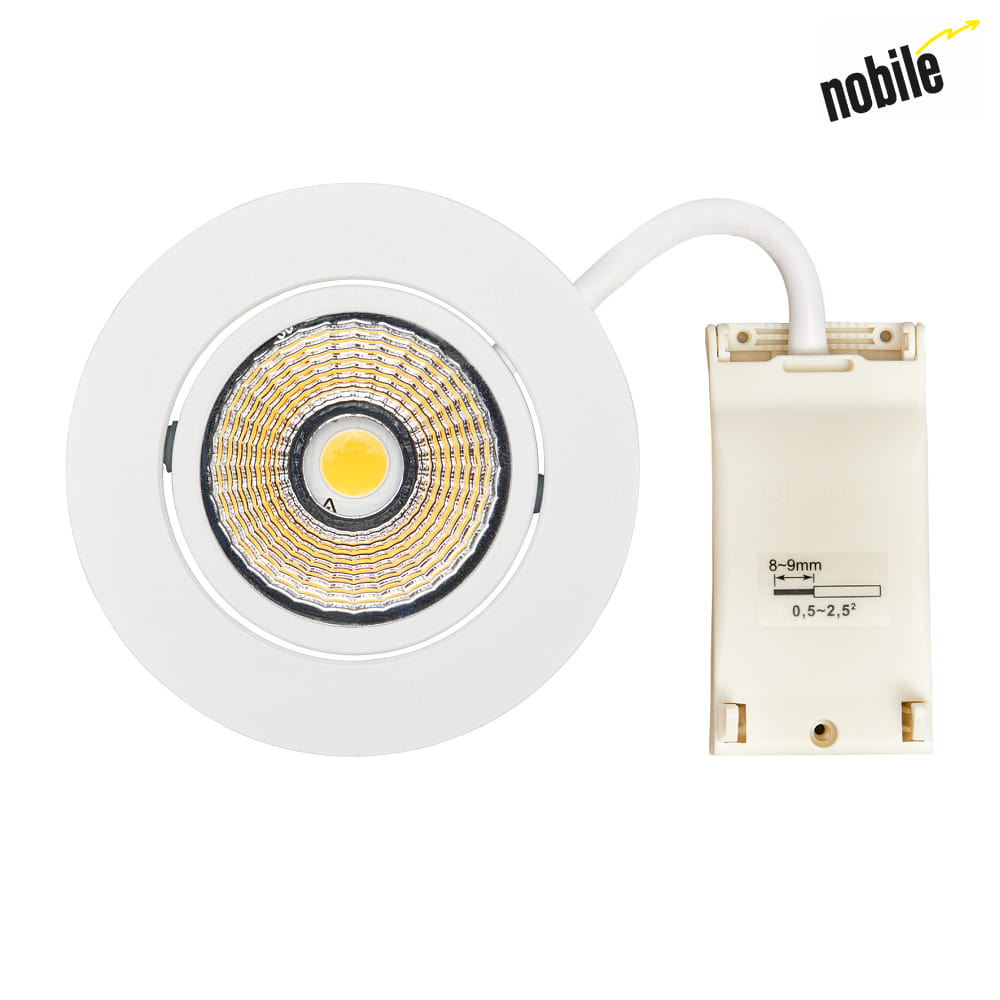

The LED Recessed Downlight 5068 ECO DOB is equipped with an integrated LED operating device that is current-controlled. The aluminum heat sink improves heat dissipation, extending the lifespan of the LED. Installation is done with an external, through-wired plug-in terminal box, allowing for easy installation of multiple spotlights on a common wiring connection.

Colour:
white matt
Glass color:
transparent
Reflector color:
glossy

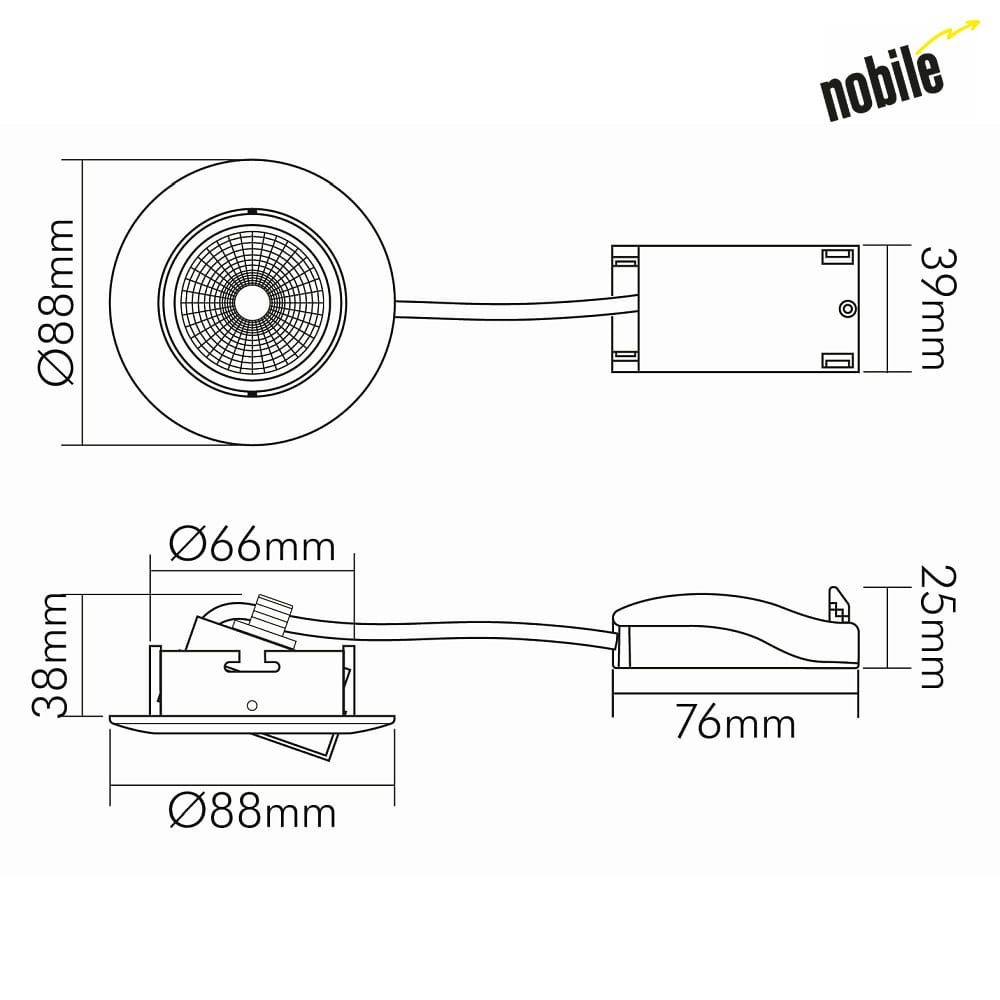

Dimension:
total-Ø∕ H: 8,8∕ 4,6 cm
visible part-Ø∕ H: 8,8∕ 0,8 cm
light output-Ø: 4,8 cm
driver-L∕ W∕ H: 7,6∕ 3,9∕ 2,5 cm
Material:
die-cast aluminium
glass
Weight:
0,165 kg
Product type:
downlight
Lamp shape:
round
Bulbs in delivery:
yes
Application area:
only suitable for indoor use
Field of application:
ceiling
Operating voltage:
230 V
Dimmable:
yes
Dimmability:
trailing edge
Power frequency:
50/60 Hz
Power consumption:
6 W
Emitting angle:
38 °
LED can be replaced :
no
Number of bulbs:
1
Light colour:
warm white
Light emission:
symmetriccal
Beam direction:
down
Light flux:
570 lm
Light intensity:
900 cd
Light yield:
95 lm/W
Colour temperature:
3000 K
Average life span of a bulb in hours:
30000 h
Colour rendering index:
80 Ra
1B
Permissions for mounting on flamabel surfaces:
Suitable for direct mounting in and on surfaces of unknown flammability
Throughwiring (installation of multiple luminaires in a row) is possible:
yes
Fitting depth:
4,5 cm
Fitting opening circle :
6,8 cm
Mounting:
recessed mounting
Protection class:
1
IP-protection class:
IP40
Product ENEC tested:
yes
Accessories:
driver included
connection cable excluded
dimmer excluded
ambient temperature:
0 - +25 °C

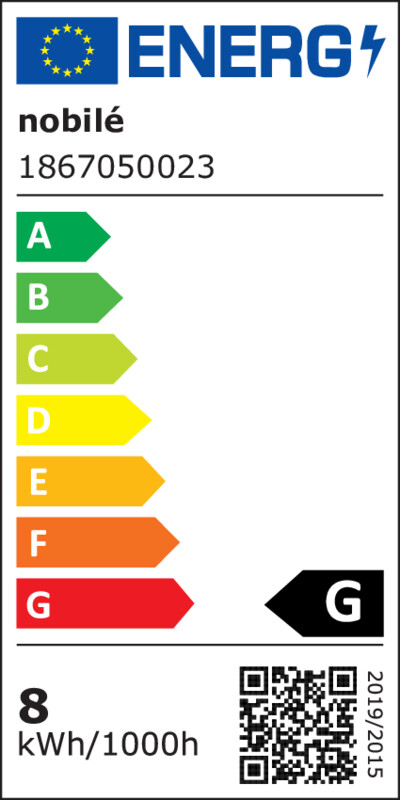

Energy efficiency category:
G
EPREL No:
933417
Energy consumption:
6 kWh/1.000 h
Article number:
NO-1867050023
Purchasing quantity:
1 piece
Brand:
nobilé
Manufacturer:
nobilé
Manufacturer information
nobilé AG, Wächtersbacher Str. 78, 60386, Frankfurt/Main, Germany, nobile@nobile.de
