downlight APOLLO MAXI square, DALI controllable, faceted IP20, powder coated, silver dimmable

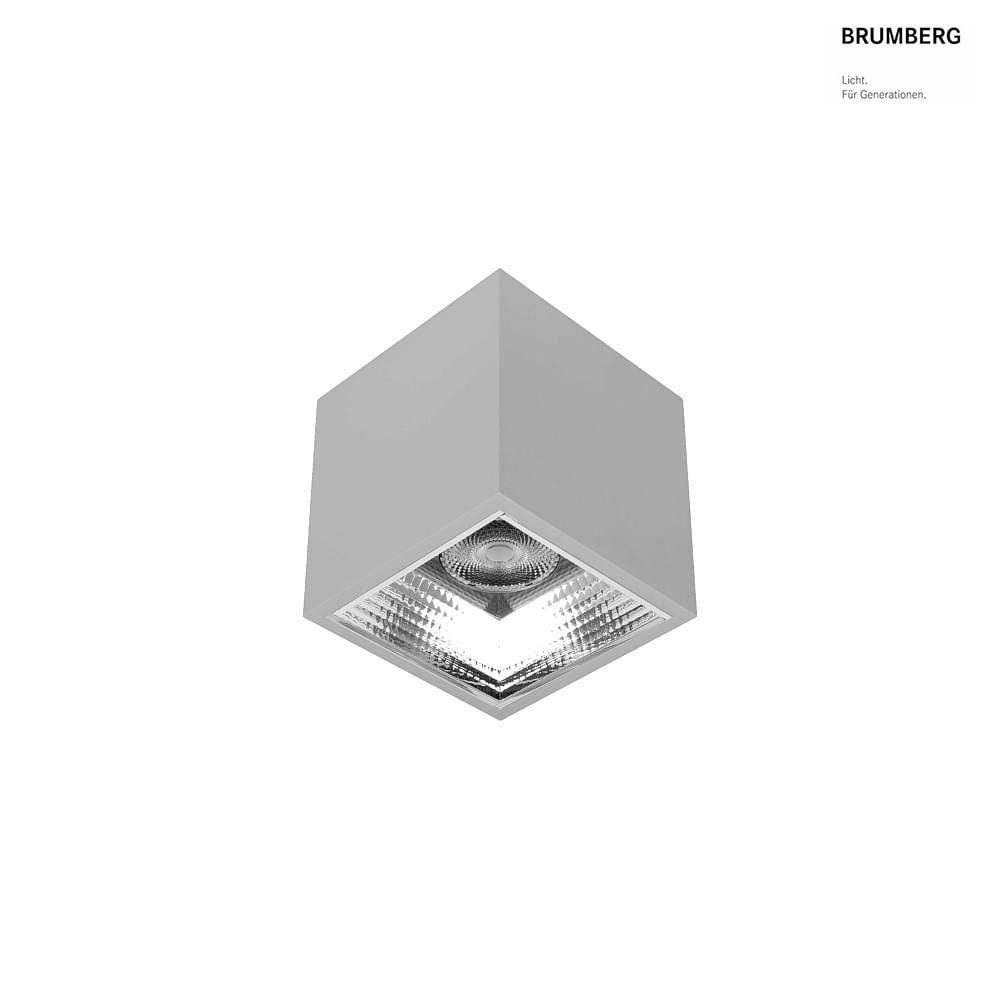

LED Surface-mounted Downlight APOLLO MAXI, 20.8x20.8cm

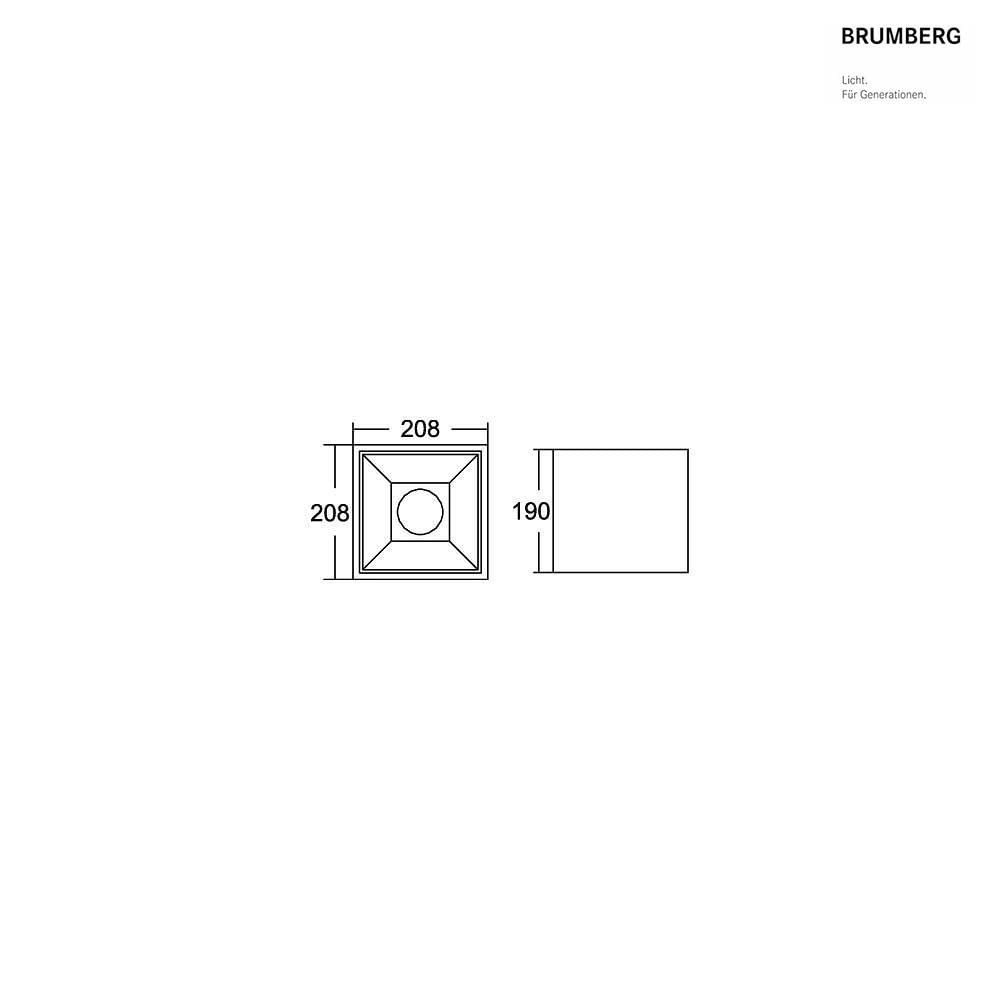

The LED Surface-mounted Downlight APOLLO MAXI from Brumberg is a high-quality and durable surface-mounted spotlight for indoor ceilings. With dimensions of 20.8x20.8x19 cm, this downlight is perfect for use in modern building automation systems.

Features and Technical Details

This square downlight features a faceted, high-gloss reflector that allows for direct downward emission. The light intensity distribution is rotationally symmetrical deep-wide-beaming, ensuring uniform illumination. With a light output of 119lm/W and a color rendition of over 90Ra, the APOLLO MAXI offers very good lighting quality.

Applications and Possible Uses

Due to its low glare factor (UGR <19), this downlight is ideal for screen workstations. The color consistency is very low, with a deviation of only 3 SDCM, meaning that the light color remains consistent when using multiple identical lights. With an IP protection rating of IP20, the APOLLO MAXI is suitable for indoor use only.

Installation and Compatibility

This downlight is equipped with a DALI-2 dimmable operating device that is current-controlled and replaceable by a professional. It is not possible to wire multiple lights in series. The APOLLO MAXI can be customized with different sizes, power levels, housing colors, and light colors. It is also available in round and square shapes.

Energy Efficiency and Sustainability

With an energy consumption of 21kWh/1,000 h and a power consumption of 20.5W, the LED Surface-mounted Downlight APOLLO MAXI belongs to energy efficiency class E. The average lamp lifespan is 50,000 hours, ensuring a long service life and low maintenance costs. Thanks to the possibility of replacing the LED, the lifespan of the downlight can be further extended.
