downlight APOLLO MIDI smooth, round, DALI controllable IP20, powder coated, silver dimmable

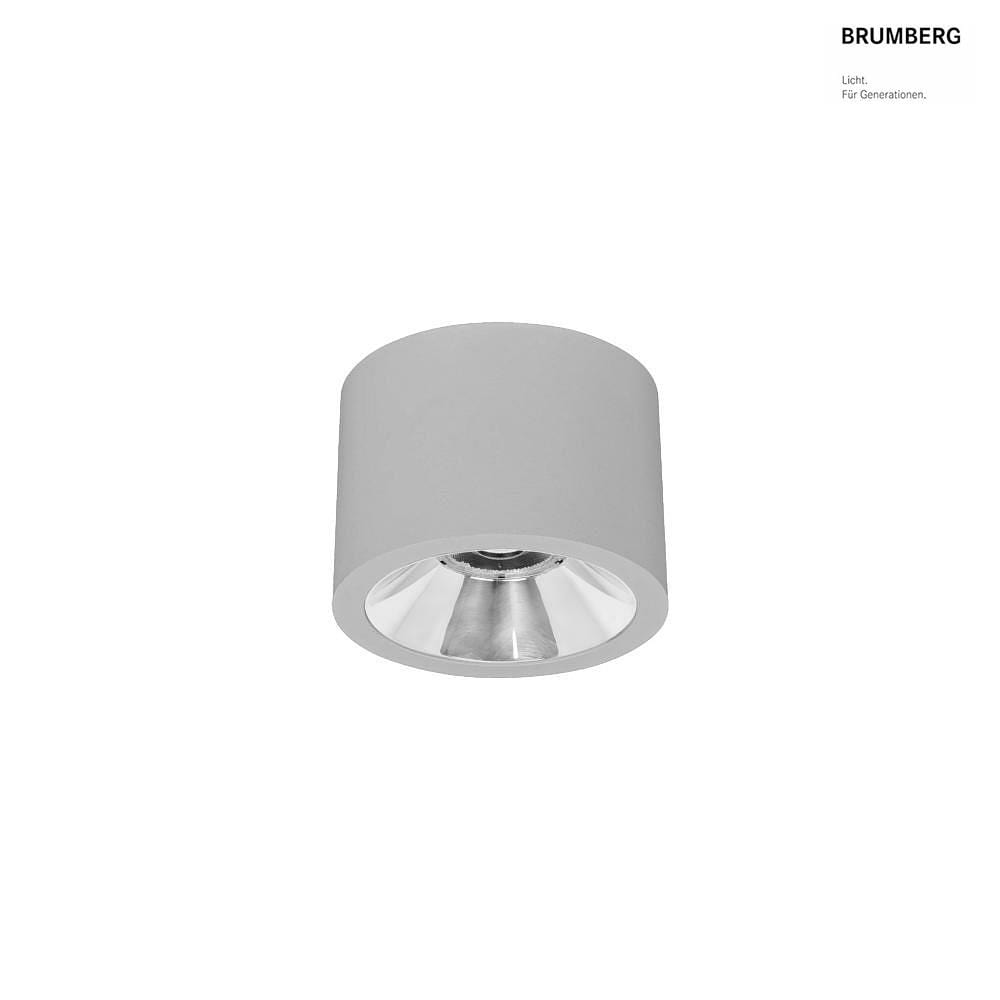

LED Surface-mounted Downlight APOLLO MIDI

The LED Surface-mounted Downlight APOLLO MIDI from Brumberg is a high-quality and durable surface-mounted spotlight for indoor ceilings with IP20 protection rating. The round version features a smooth, high-gloss reflector and is DALI-2 dimmable. It is characterized by a direct downward emission and offers a rotationally symmetric deep-wide-radiating luminous intensity distribution. With a very good light output of up to 132lm/W and a color rendering index of >90Ra, the LED Downlight is ideal for use in modern building automation systems.

Technical Details

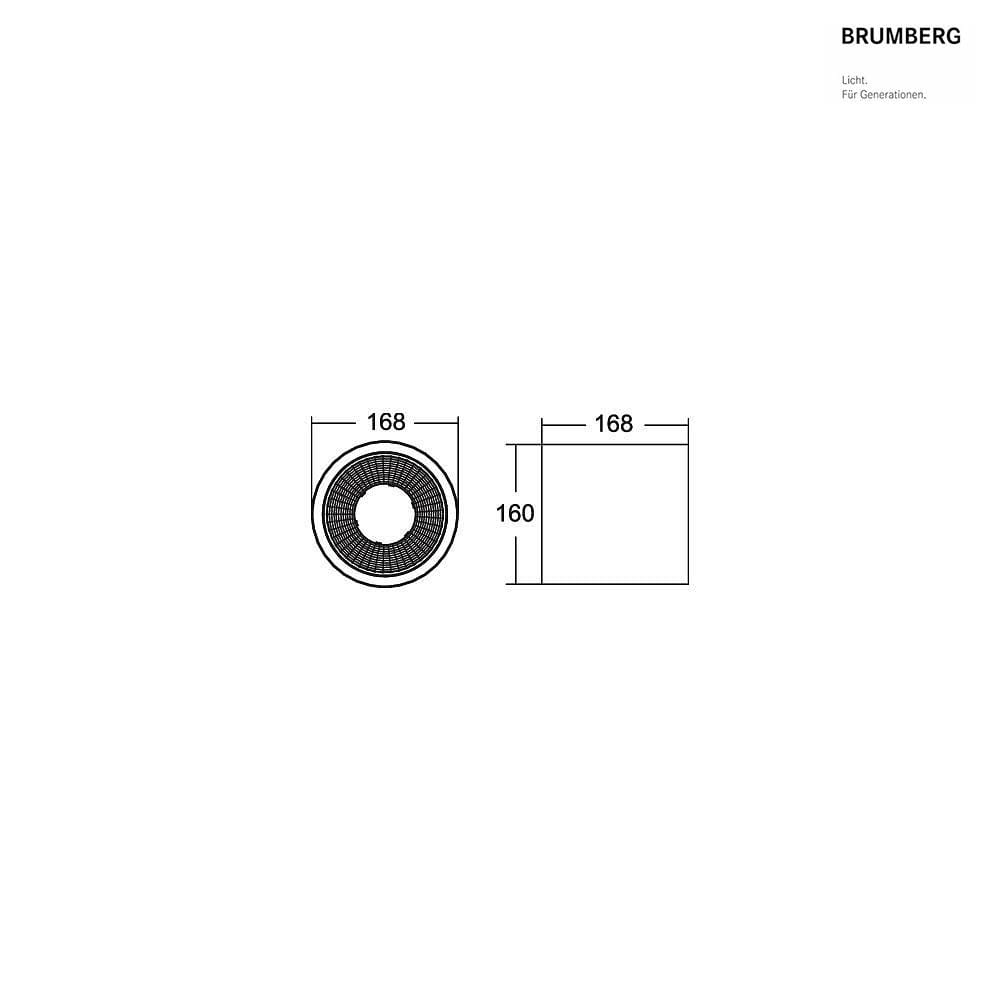

The LED Surface-mounted Downlight APOLLO MIDI has a diameter of 16.8 cm and a height of 16 cm. It weighs 1.272 kg and has a power consumption of 14.5W. With a neutral white light color and a luminous flux of 1916lm, the Downlight offers a symmetrical light distribution. The average lamp lifespan is 50000 hours, ensuring a long service life.

Energy Efficiency and Color Rendering

The LED Surface-mounted Downlight APOLLO MIDI has an energy efficiency class of D and an energy consumption of 15kWh/1,000 h. With a color rendering index of >90Ra and a color rendering grade of 1A, the Downlight offers very good color rendering. The color temperature is 3500K, providing a pleasant and natural lighting.

Applications

The LED Surface-mounted Downlight APOLLO MIDI is ideal for screen workstations, as it offers low glare with UGR <19. The color consistency of 3 SDCM ensures very low deviation of light color when using multiple identical luminaires. The Downlight is suitable for ceiling mounting in indoor areas and is available in various sizes, power levels, housing colors, and light colors.

Accessories and Installation

The LED Surface-mounted Downlight APOLLO MIDI comes with an LED driver that is current-controlled and replaceable. It has a mains connection with terminal connection and is designed for an operating voltage of 230V~. The installation is done via surface mounting and the wiring is done with a conductor cross-section of 1.5mm2. With the Controllerexcl and Dimmerexcl accessories, the Downlight can be individually controlled and dimmed.
