downlight APOLLO MINI round, DALI controllable, faceted IP20, powder coated, white dimmable

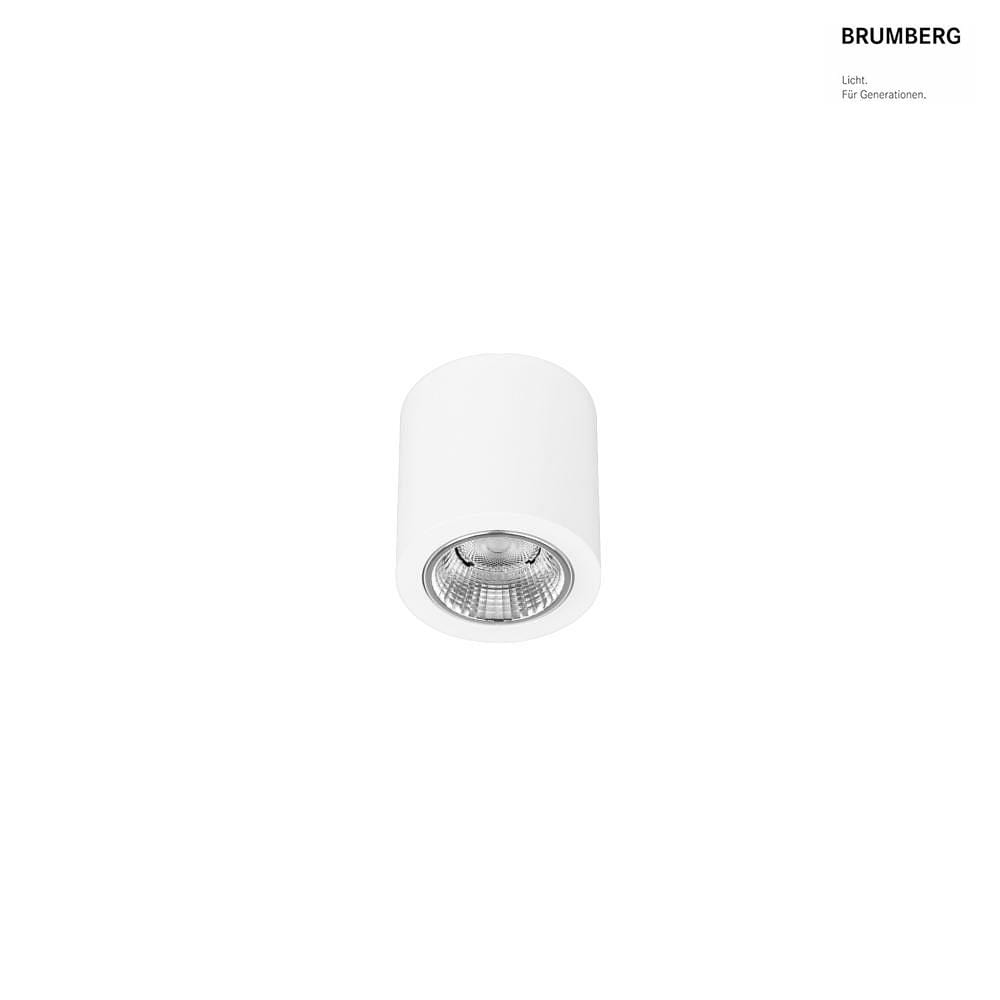

Brumberg LED Surface-mounted Downlight APOLLO MINI

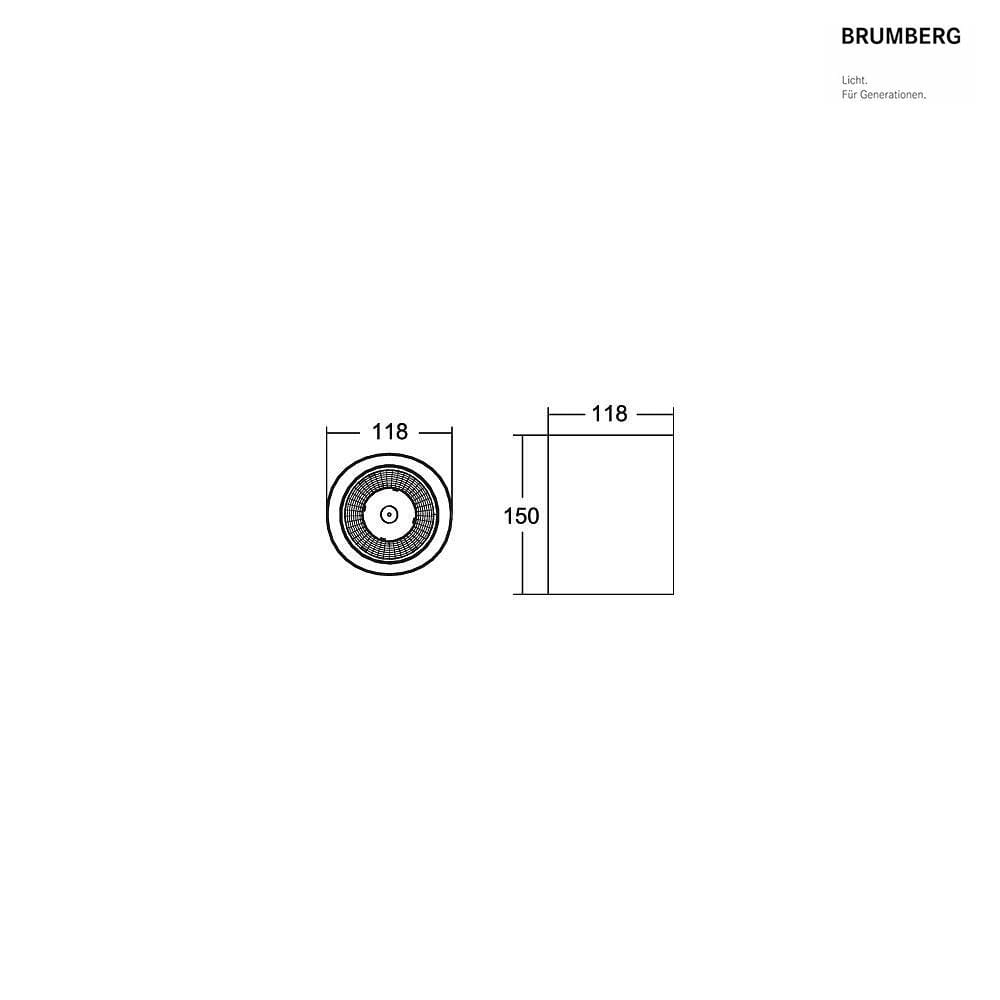

The LED surface-mounted downlight APOLLO MINI from Brumberg is a high-quality and long-lasting surface spotlight for indoor ceilings. With a size of Ø 11.8cm and a height of 15cm, this downlight is ideal for use in modern building automation systems. The reflector is faceted and high-gloss, resulting in a rotationally symmetric deep-wide-beam light intensity distribution.

Technical Details

The LED downlight has an energy efficiency class of E and an energy consumption of 11kWh/1,000h. With a power consumption of 10.5W and a light output of 116lm/W, the downlight produces a neutral white light color with a luminous flux of 1222lm. The color rendering index is >90Ra, ensuring very good color rendering. The color rendering level is 1A.

Special Features

The LED surface-mounted downlight APOLLO MINI has a UGR value of <19, making it ideal for screen workplaces. The color consistency (McAdam ellipse) is 3 SDCM, which means a very small deviation of light color when using multiple identical luminaires. The IP protection rating is IP20 and daisy chaining for the installation of multiple luminaires in a row is not possible.

Accessories and Application Area

The LED downlight comes with the operating device included, while accessories such as controllers, dimmers, and other operating devices are available separately. The downlight is designed for ceiling mounting in indoor areas and can be dimmed with a DALI system. The power supply is via a terminal connection and the ambient temperature can range from -20 to +25°C.

Further Information

The LED surface-mounted downlight APOLLO MINI from Brumberg is available in various sizes and power levels, both in round and square shapes. It can be purchased in various housing colors and with different light colors. Switchable and DALI-2 dimmable versions are available to meet individual requirements. The operating device is current-controlled and can be replaced by a professional to ensure the longevity of the downlight.
