downlight APOLLO MINI smooth, round, DALI controllable IP20, powder coated, white dimmable

Brumberg



Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

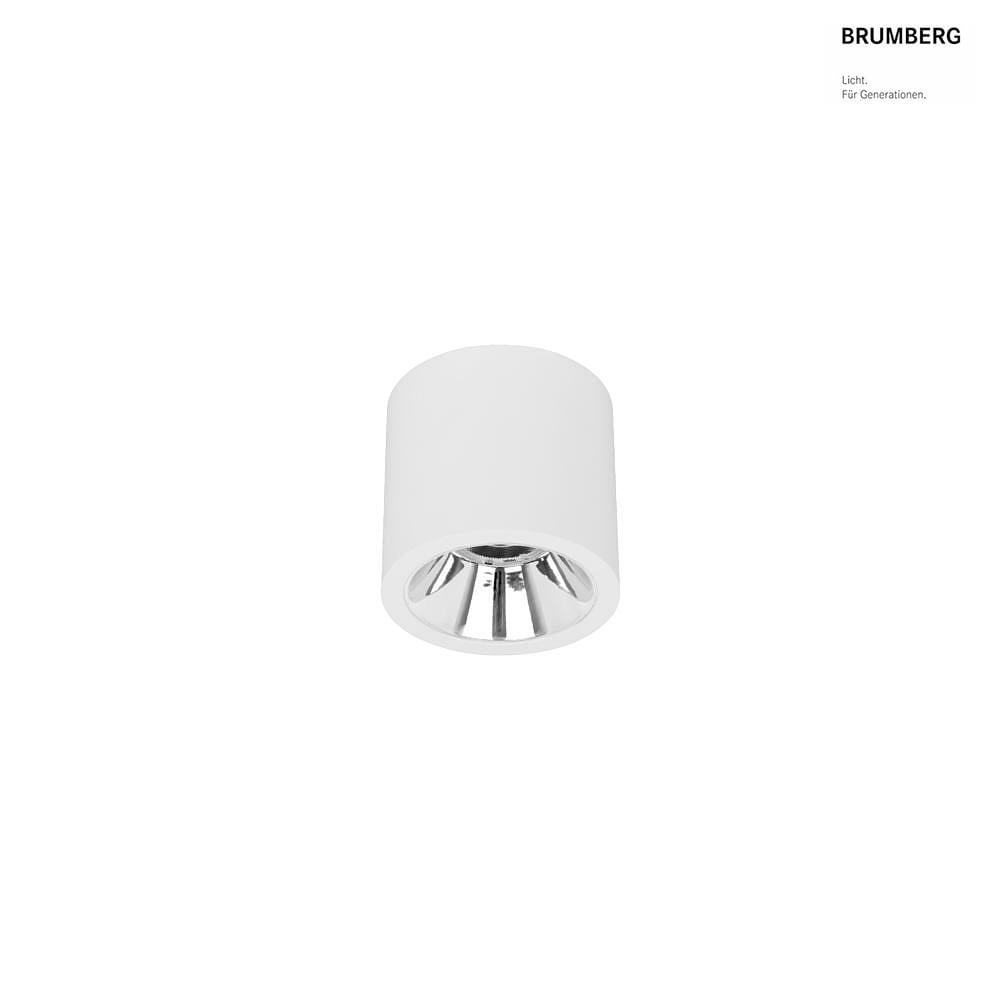

LED Surface-mounted Downlight APOLLO MINI

The LED surface-mounted downlight APOLLO MINI from Brumberg is a high-quality and durable surface-mounted spotlight for indoor ceilings. With a diameter of 11.8 cm and a height of 15 cm, it fits into almost any room. Thanks to the smooth reflector surface, it offers a direct downward emission and a rotationally symmetric deep-wide-beam light intensity distribution.

Technical Details

The APOLLO MINI has an energy efficiency class of D and a power consumption of 10.5W. With a light output of 132lm/W and a luminous flux of 1385lm, it provides bright and pleasant lighting. The color temperature is 3500K and the color rendering index is >90Ra, ensuring very good color reproduction.

Area of Application and Usage

Due to the low glare value (UGR <19), the LED surface-mounted downlight APOLLO MINI is particularly suitable for screen workstations. The DALI-2 dimmable version can be easily integrated into modern building automation systems. However, the installation of multiple luminaires in series through through-wiring is not possible.

Accessories and Installation

The operating device is already included in the delivery of the APOLLO MINI, while controllers, dimmers, and other accessories are available separately. The installation is done through surface mounting and the connection via a clamp connection. The LED operating device is current-controlled and can be replaced by a professional.

Additional Information

The APOLLO MINI is available in various sizes and power levels, as well as in round and square shapes. Additionally, there are different housing colors and light colors to choose from. The switchable and DALI-2 dimmable versions offer additional flexibility in lighting design. With an average lamp lifespan of 50000 hours and an IP protection rating of IP20, the APOLLO MINI is a reliable and durable lighting solution for indoor areas.

Article number:
BRUM-42612175DA
Purchasing quantity:
1 piece
Brand:
Brumberg
Energy efficiency category:
D
Product type:
Recessed luminaire
Energy consumption:
11 kWh/1.000 h
Manufacturer:
Brumberg
Operating voltage:
230 V~
Dimmable:
yes
Dimmability:
DALI
Lamp shape:
round
Power frequency:
50 Hz
Power consumption:
10,5 W
Emitting angle:
55 °
Bulbs in delivery:
yes
LED can be replaced :
replaceable by a specialist
Bulb type:
LED
Number of bulbs:
1
Voltage:
Clamp
Light colour:
neutral white
Light emission:
symmetriccal
Light flux:
1385 lm
Light yield:
132 lm/W
Colour temperature:
3500 K
Average life span of a bulb in hours:
50000 h
Colour rendering index:
>90 Ra
UGR:
< 19
Colour rendering index:
1A
Colour:
powder coated
white
Material:
aluminium
glass
plastic
Throughwiring (installation of multiple luminaires in a row) is possible:
no
Dimension:

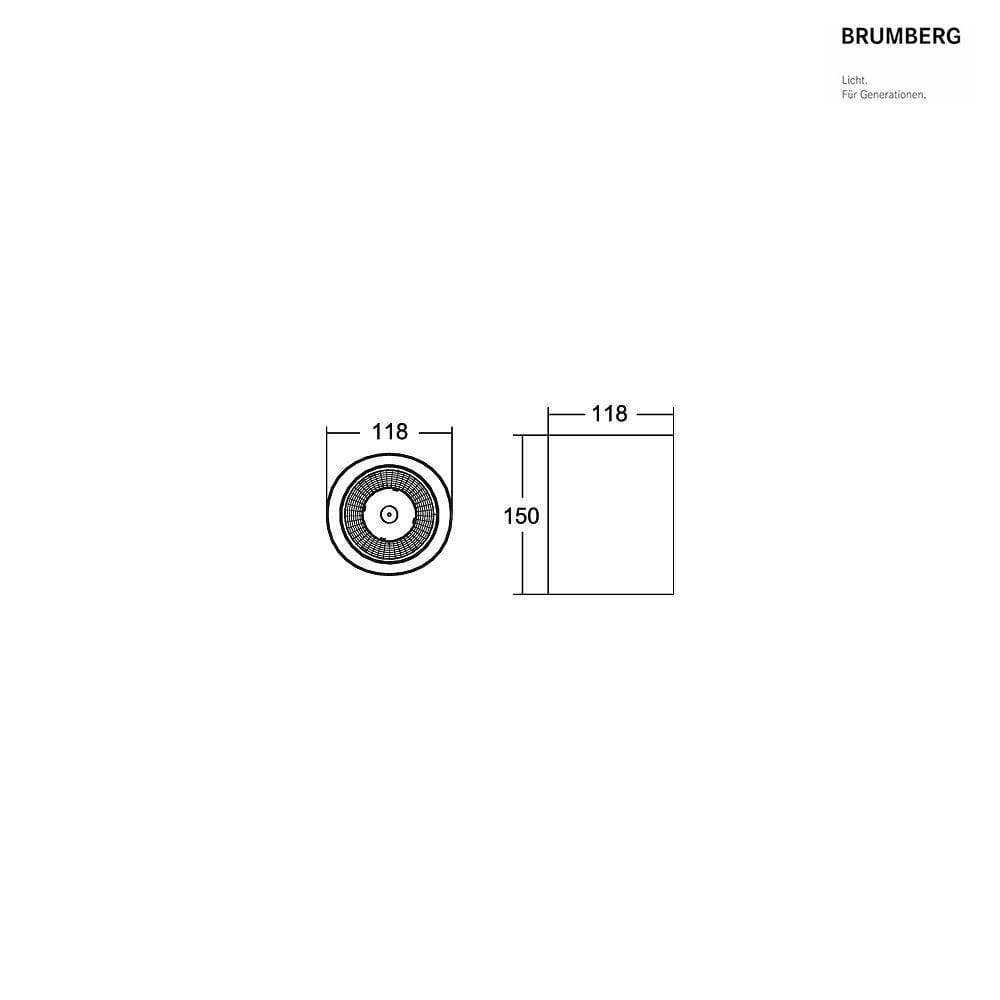

Ø∕ H: 11,8∕ 15 cm
Weight:
0,768 kg
Plug type:
clamping connection
Mounting:
surfaced mounting
Field of application:
ceiling
IP-protection class:
IP20
Application area:
only suitable for indoor use
Additional information:
Transformer power: 21 VA
Accessories:
controller excluded
Dimmer excluded
control gear included
ambient temperature:
-20 ... +25 °C
