« back

downlight APOLLO MINI square, smooth, DALI controllable IP20, powder coated, white dimmable

Brumberg



Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

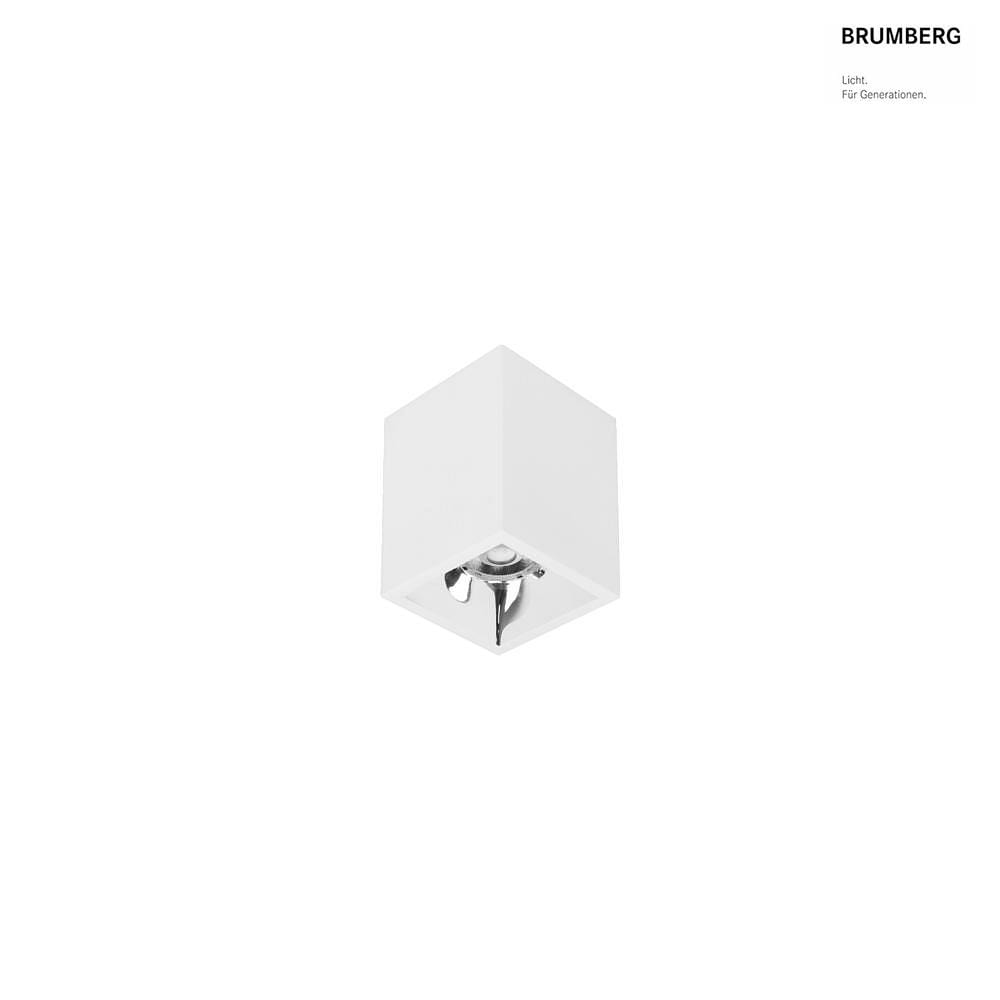

LED Surface-mounted Downlight APOLLO MINI

The LED Surface-mounted Downlight APOLLO MINI from Brumberg is a high-quality and durable surface-mounted spotlight for indoor ceilings (IP20). With dimensions of 11.8 x 11.8 cm and a height of 15 cm, it fits perfectly in modern indoor spaces.

Technical Details

The downlight features a smooth, high-gloss reflector that ensures a rotationally symmetrical deep-wide-beam light intensity distribution. With a light output of 132lm/W and a luminous flux of 1391lm, the APOLLO MINI provides excellent lighting for use in various rooms.

Color Rendering and Application

With a color rendering index of over 90Ra and a color rendering grade of 1A, the LED downlight provides very good color rendering. It is particularly suitable for screen workstations with a UGR value less than 19. The color temperature is 3500K and the light color is neutral white.

DALI Dimmability and Accessories

The APOLLO MINI is DALI-2 dimmable and can be integrated into modern building automation systems. It comes with an LED driver that is current-controlled and replaceable. Additionally, accessories such as controllers, dimmers, and drivers are included in the delivery.

Additional Information

Depending on the model, the LED Surface-mounted Downlight APOLLO MINI can deliver up to 128 lumens per watt. It is available in various sizes, power levels, housing colors, and light colors. Installation is done via surface mounting and connection is through a terminal connection. With an average lamp life of 50000 hours and an energy efficiency class of D, the APOLLO MINI offers an efficient and durable lighting solution.

Article number:
BRUM-42642175DA
Purchasing quantity:
1 piece
Brand:
Brumberg
Energy efficiency category:
D
Product type:
Recessed luminaire
Energy consumption:
11 kWh/1.000 h
Manufacturer:
Brumberg
Operating voltage:
230 V~
Dimmable:
yes
Dimmability:
DALI
Lamp shape:
square
Power frequency:
50 Hz
Power consumption:
10,5 W
Emitting angle:
55 °
Bulbs in delivery:
yes
LED can be replaced :
replaceable by a specialist
Bulb type:
LED
Number of bulbs:
1
Voltage:
Clamp
Light colour:
neutral white
Light emission:
symmetriccal
Light flux:
1391 lm
Light yield:
132 lm/W
Colour temperature:
3500 K
Average life span of a bulb in hours:
50000 h
Colour rendering index:
>90 Ra
UGR:
< 19
Colour rendering index:
1A
Colour:
powder coated
white
Material:
aluminium
glass
plastic
Throughwiring (installation of multiple luminaires in a row) is possible:
no

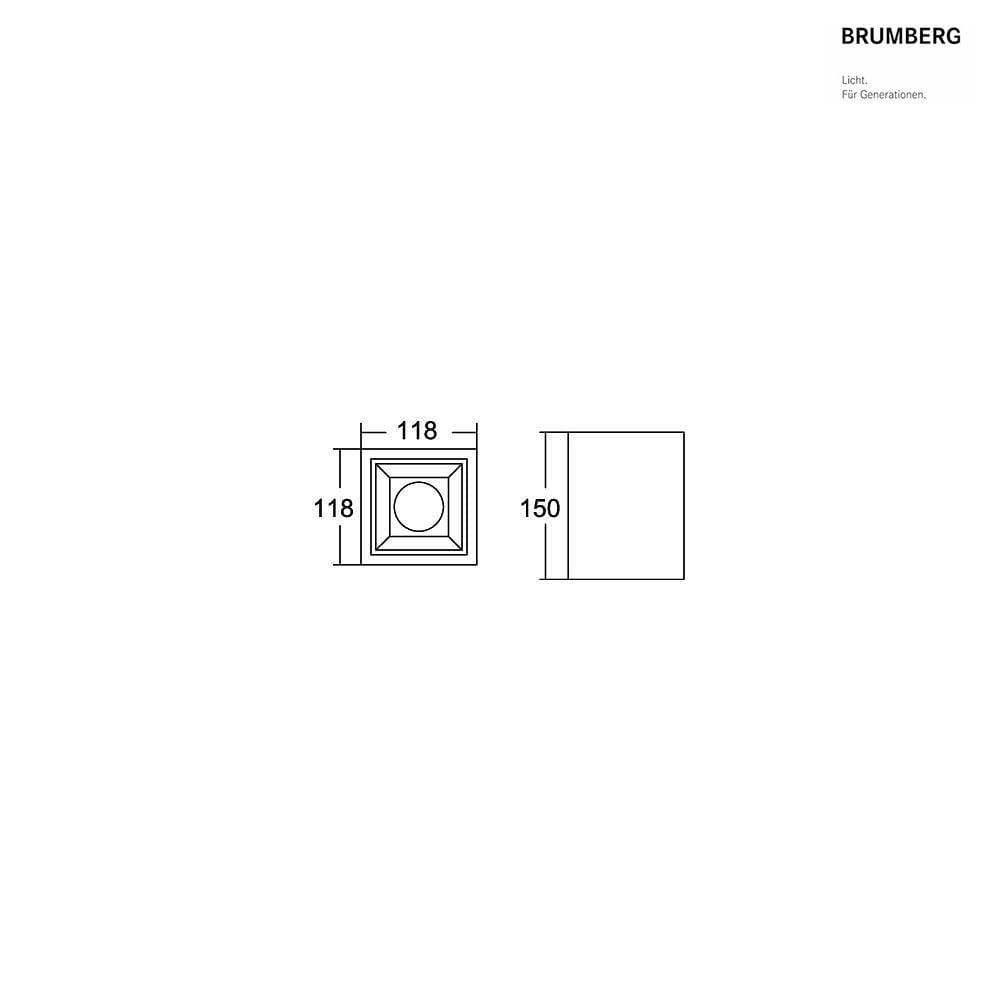

Dimension:
L∕ W∕ H: 11,75∕ 11,8∕ 15 cm
Weight:
0,939 kg
Plug type:
clamping connection
Mounting:
surfaced mounting
Field of application:
ceiling
IP-protection class:
IP20
Application area:
only suitable for indoor use
Additional information:
Transformer power: 21 VA
Accessories:
controller excluded
Dimmer excluded
control gear included
ambient temperature:
-20 ... +25 °C
