downlight CHANGY-B TRIZONE - UGR<19 ETM multipower, set back, with lens optics IP40, white

Regiolux



Are you a retailer or business customer (commercial/freelancer)? Secure special B2B prices now.

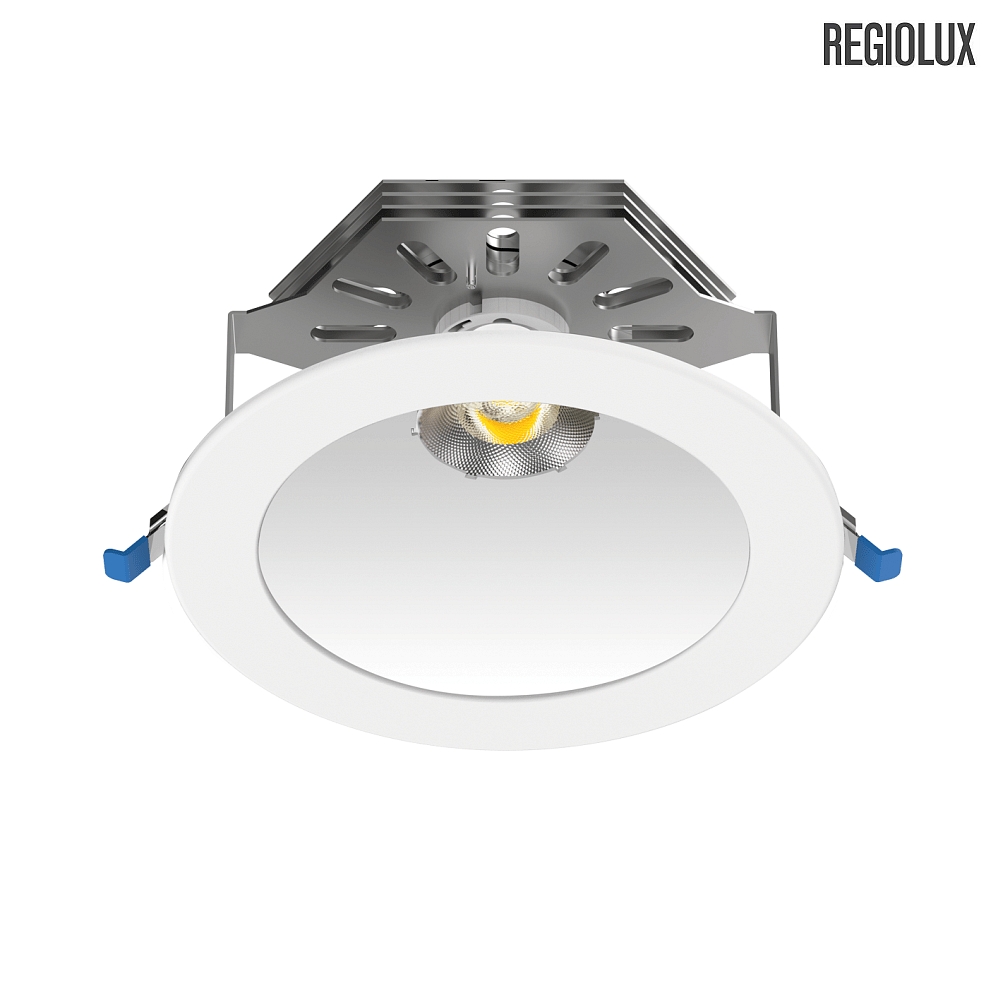

Efficient LED recessed downlight for indoor use

The LED recessed downlight CHANGY-B is a modern solution for indoor lighting. With an energy efficiency class of D and an energy consumption of 43 kWh/1,000 h, it offers an energy-saving lighting option for ceilings in various rooms.

Glare-free light with special Nimbus effect

New lighting techniques such as the 85° single lens/TriZone optic with the YASMEEN lens create directional and glare-free light. In addition, an invisible diffuser in the trim creates a side Nimbus light effect, creating a pleasant atmosphere.

Flexible adjustment options and high color consistency

The LED recessed downlight CHANGY-B features a switchable 85° ETM multipower version with DIP switches to adjust power consumption and light output. With a color consistency (MacAdam) of 3 SDCM, the downlight ensures very low tolerance for deviations in light color.

Robust construction and easy installation

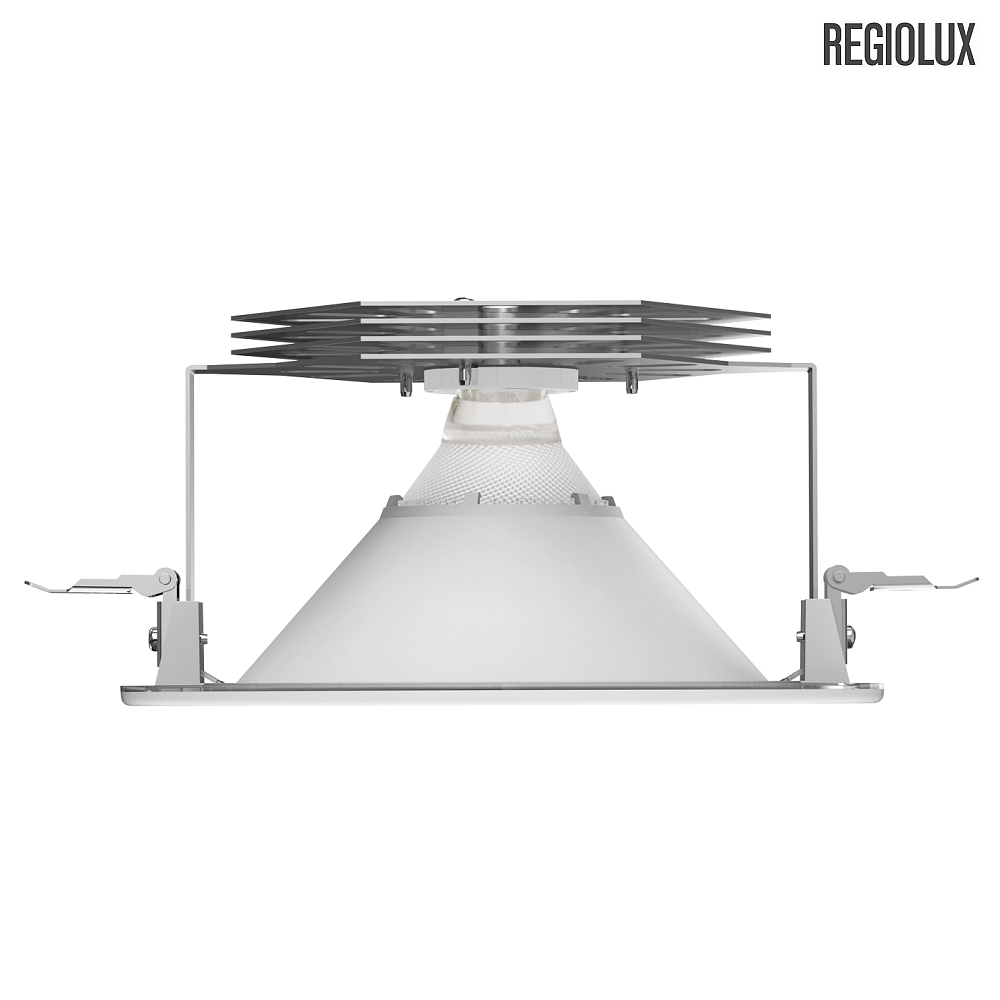

The downlight is made of die-cast aluminum and has a recessed depth of 16.5 cm. Installation is done through recessed mounting, with the external driver connected primarily through terminals and secondary through the connection cable. The product is suitable for cut-out ceilings and panel ceilings.

Versatile accessories and high light quality

The LED recessed downlight CHANGY-B comes with extensive accessories, including connection cables, clip springs, DIP switches, and drivers. With a light output of 110-119lm/W, a neutral white light color, and a light output of 3800-4700lm, it offers a high-quality lighting solution for various indoor spaces.

Colour:
white
Dimension:
total-Ø∕ L∕ H: 24,6∕ ∕ 12,85 cm
visible part-Ø∕ H: 24,6∕ 0,65 cm
min. material thickness -H: 1 cm
max. material thickness -H: 2,5 cm
driver-L∕ W∕ H: 14,4∕ 4,3∕ 3 cm
Material:
die-cast aluminium
Weight:
1,7 kg
Product type:
downlight
Lamp shape:
round
Bulbs in delivery:
yes
Application area:
suitable for indoor use
Field of application:
ceiling
Operating voltage:
230 V~
Dimmable:
no
Power frequency:
50 Hz
Power consumption:
31,7 / 36,2 / 38,3 / 42,5 W
Emitting angle:
85 °
LED can be replaced :
no
Bulb type:
LED
Lamps/bulbs:
LED
Light colour:
neutral white
Light emission:
direct
Light flux:
3800 / 4200 / 4300 / 4700 lm
Light yield:
110-119 lm/W
Colour temperature:
4000 K
Average life span of a bulb in hours:
L80/B10: 100000
L90/B10: 50000 h
Colour rendering index:
>80 Ra
UGR:
< 19
Colour rendering index:
1B
IK-Rating:
IK02 up to 0.20 Joule
Fitting depth:
16,5 cm
Fitting opening circle :
22,9 cm
Fitting opening square/rectangular width:
57 cm
Fitting opening square/rectangular length:
33,9 cm
Length of connection lead:
50 cm
Plug type:
clamping connection
Mounting:
recessed mounting
IP-protection class:
IP40
Accessories:
connection cable included
clip springs included
DIP switch included
driver included
through wiring excluded
mounting ring excluded
ambient temperature:
25 °C
Energy efficiency category:
D
Energy consumption:
43.00 kWh/1.000 h
Manufacturer ordering code:
3651 0054 110
Article number:
REG-36510054110
Purchasing quantity:
1 piece
Brand:
Regiolux
Manufacturer:
Regiolux
Manufacturer information
Regiolux GmbH, Hellinger Straße 3, 97486, Königsberg, Germany, info@regiolux.de, https://www.regiolux.de/
