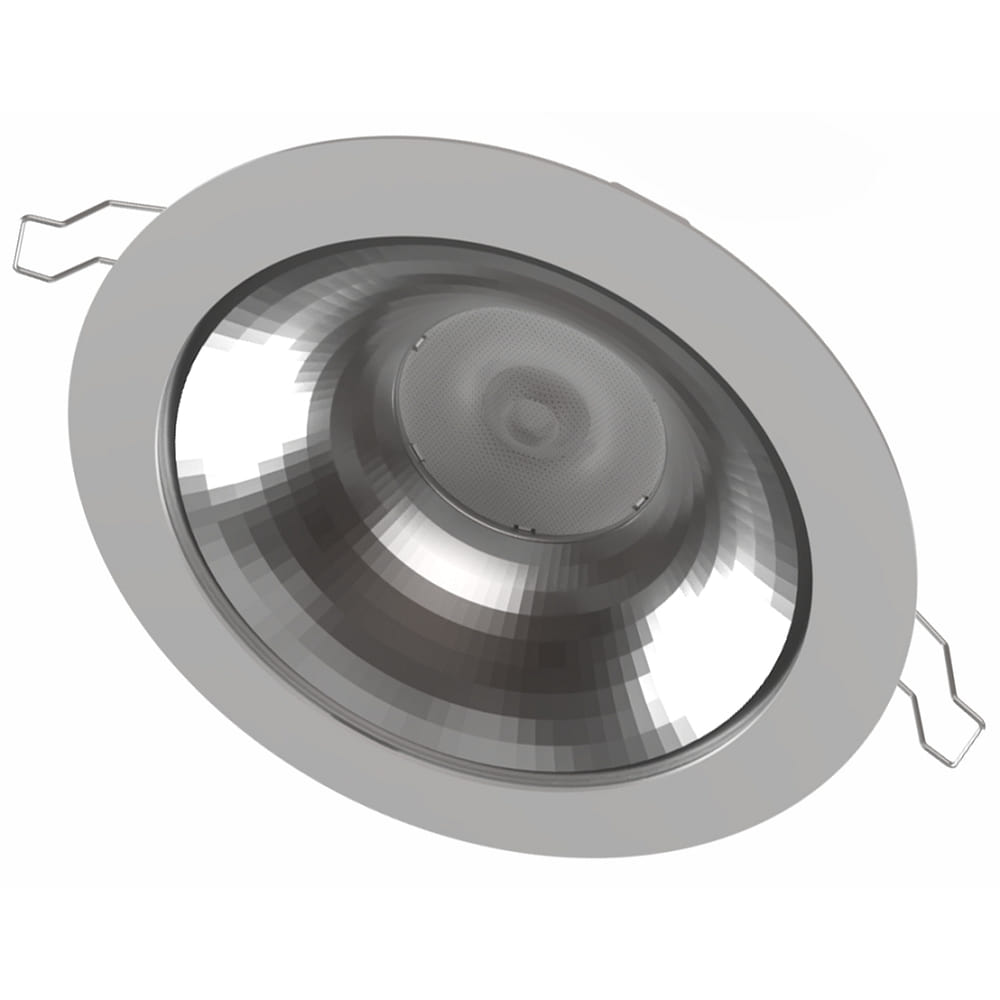

downlight CYRA+ S - Ø 207MM / CRI80 rigid, multipower, on/off IP20, traffic white

Highly efficient LED Downlight for general lighting

The LED Downlight CYRA+ S from Rutec is a durable and efficient lighting solution for both new installations and replacing older fixtures. With a power consumption of 7/9/14W and a light output of 1030/1280/2000lm, it provides a warm white, symmetrical light distribution with good color rendering for general lighting. Thanks to its efficiency, it is even eligible for funding through the BEG (Federal Funding for Efficient Buildings).

Easy installation and versatile application possibilities

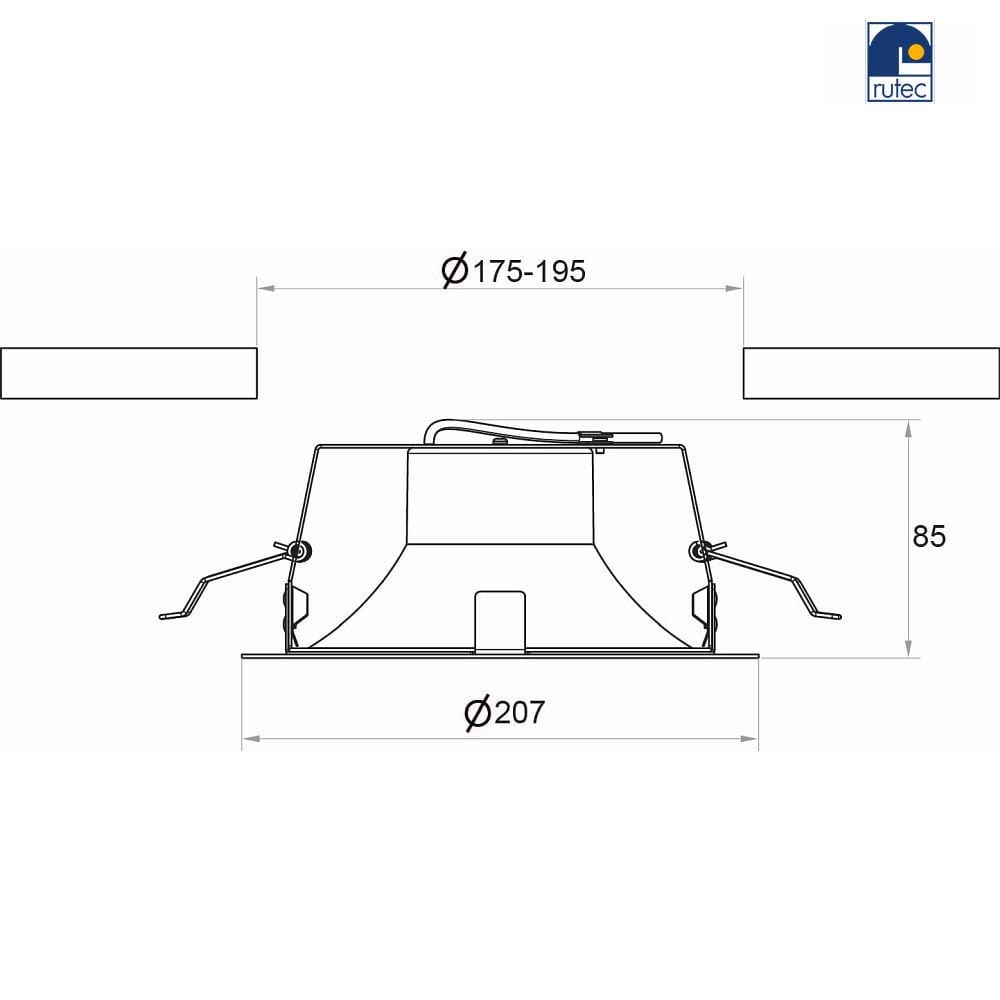

The LED Downlight can be mounted tool-free in existing ceiling cutouts and is suitable for material thicknesses from 1mm to 30mm. Alternatively, it can be installed in existing concrete pouring pots. With a variable ceiling cutout of Ø17.5 to 19.5cm, it adapts flexibly to various installation situations. The anti-glare properties are very good, making it suitable for lighting at screen workstations (BAP compliant) with a UGR value below 15.

Technical details and accessories

The LED Downlight has an energy efficiency class D and a color rendering index of over 80Ra. It comes with accessories such as clip springs, dimmer switches, lens, reflector, and driver, which are included in the delivery. The operating voltage is 220-240V and the protection class is 2. The item features an integrated switch for stepwise dimming. The light diffuser consists of a textured PMMA refractor lens.

Long lifespan and high energy efficiency

The LED Downlight has an average lamp lifespan of 60,000 hours and an energy consumption of 14kWh/1,000h. With a light output of 142.85lm/W and a beam angle of 60°, it offers efficient and uniform lighting. The constant light output control ensures a consistent brightness throughout the lamp's lifespan.

Wide selection and easy installation

The LED Downlight CYRA+ S is available in different sizes and light colors, with various beam angles and color rendering levels. It can be switchable or DALI controllable, offering a wide range of models for different application areas. With a very wide tolerance for input voltage of 220-240V AC and 170-278V DC, it is flexible in installation and application. Connection is made with a conductor cross-section of 0.5-2.5mm2 via through-wiring.
